Product Information

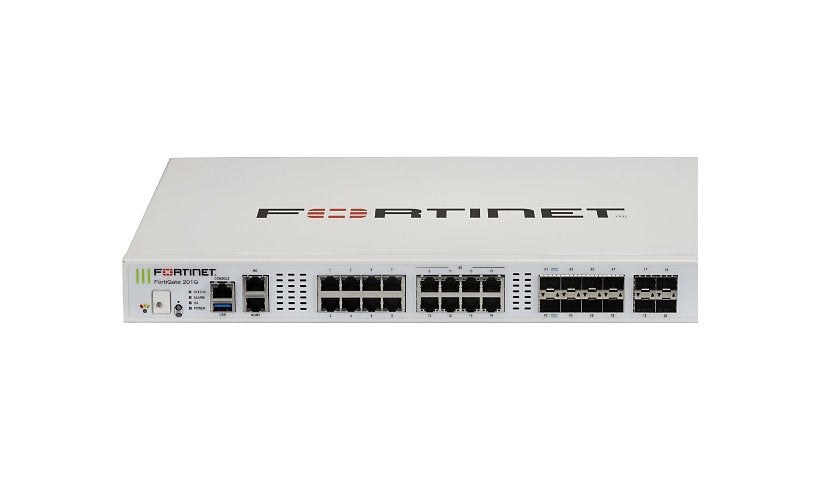

The Fortinet FortiGate 201G is the 200G series 1U firewall with 480 GB of storage for local logging. It is listed at 27.8 Gbps application control and 37.5 Gbps CAPWAP, with up to 11 million concurrent sessions and 16,000 client to gateway IPsec tunnels. It has eight 1/2.5/5G and eight Gigabit RJ-45 ports, four SFP ports, HA and management ports, Bluetooth LE and dual redundant power supplies. The description quotes 3 Gbps firewall and 6 Gbps VPN, which does not match the spec, please confirm.
Key Features
- 480 GB SSD for logging
- 8 x 2.5/5G + 8 x 1G RJ-45
- 4 x SFP ports
- 11M concurrent sessions
- Dual redundant PSU
- 1U rack mount
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 201G
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Bluetooth LE, Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: DNS, HTTP, HTTPs, IPSec, IPv4, IPv6, TCP/IP, UDP
Remote Management: DNS, HTTP, HTTPS, IPv4, IPv6, TCP/IP, UDP
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 16000, Concurrent SSL VPN users: 500, Concurrent TCP sessions (enterprise traffic mix): 11000000, Firewall policies: 10000, Gateway to gateway IPSec VPN Tunnels: 2000, Maximum number of FortiTokens: 5000, Maximum virtual domains: 10, New TCP sessions per second: 400000, Number of FortiAP devices (tunnel mode): 128, Number of FortiAP devices: 256, Number of FortiSwitches: 64, SSL inspection concurrent sessions: 900000, SSL inspection CPS: 7100, Virtual domains: 10
Network Device: Application control throughput (HTTP 64K): 27.8 Gbps, CAPWAP Throughput (HTTP 64K): 37.5 Gbps, Firewall latency (64-byte UDP): 4.36 µs, Firewall throughput: 39.75 Mpps, IPS throughput (enterprise traffic mix): 9 Gbps, IPv4 firewall throughput (1518-byte UDP): 39 Gbps, IPv4 firewall throughput (512-byte UDP): 39 Gbps, IPv4 firewall throughput (64-byte UDP): 26.5 Gbps, IPv6 firewall throughput (1518-byte UDP): 39 Gbps, IPv6 firewall throughput (512-byte UDP): 39 Gbps, IPv6 firewall throughput (64-byte UDP): 26.5 Gbps, NGFW throughput (enterprise traffic mix): 7 Gbps, SSL inspection throughput: 7 Gbps, Threat protection throughput (enterprise traffic mix): 6 Gbps, VPN throughput (512-bit IPSec): 36 Gbps, VPN throughput (SSL): 3 Gbps
Operating System Edition: FortiOS
Features: Advanced sandbox detection, AI/ML powered, Anti-malware protection, Built-in ASIC, CAPWAP support, Data Loss Prevention (DLP), DDoS Protection, DNS filtering, Firewall protection, High Availability, Intrusion Prevention System (IPS), NGFW appliance, SD-WAN support, Secure Access Service Edge (SASE), Self-healing network, SSL inspection, Trusted Platform Module (TPM), URL protection, VPN support, Zero Trust Network Access (ZTNA)
Connectivity
Interface Provided: 1 x 1 Gigabit Ethernet (High Availability) - RJ-45, 1 x 1000Base-T (management) - RJ-45, 1 x console - RJ-45, 1 x USB 3.0 - Type A, 4 x 1000Base-X - SFP, 8 x 1/2.5/5GBase-T - RJ-45, 8 x 1000Base-T - RJ-45, 8 x 10GBase-X - SFP/SFP+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 145 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
80 PLUS Certification: 80 PLUS
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC CP10/NP7Lite
Hard Drive Capacity: 480 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front and side to back
Status Indicators: Alarm, HA, Power, Status
Installed Quantity: 1
Dimensions and Weight
Height: 1.8 inch
Width: 17 inch
Depth: 15 inch
Weight: 14.33 lbs
Warranty
Service Activation: No
