Product Information

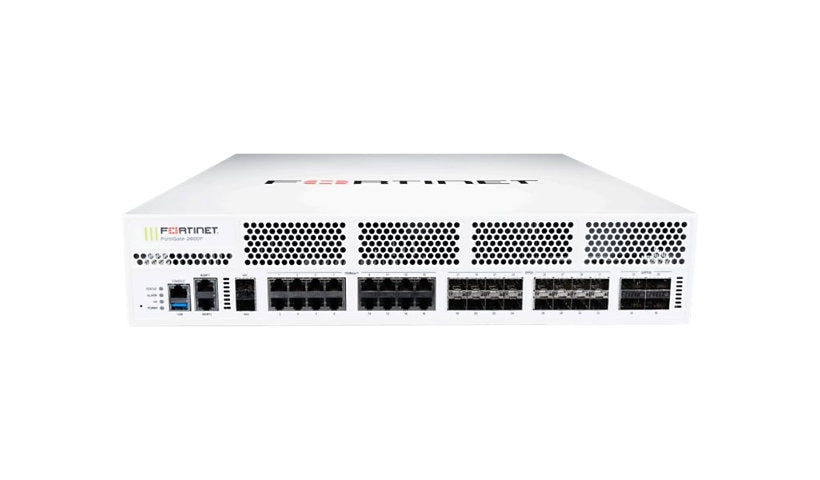

The Fortinet FortiGate 2601F is the 2600F model with 1 TB of storage, a 2U firewall for large enterprises and service providers rated at 198 Gbps firewall (1518-byte UDP), 64 Gbps application control, 24 Gbps IPS, 19 Gbps NGFW and 55 Gbps IPsec VPN, with up to 24 million TCP sessions and 1 million new sessions per second. It has four 40/100G QSFP28 ports, sixteen 1/10/25G SFP28 ports, two 10G SFP+ ports, sixteen RJ-45 ports, two management ports and dual redundant power supplies.
Key Features
- 198 Gbps firewall (1518-byte UDP)
- 19 Gbps NGFW
- 24M TCP sessions
- 4 x 100G QSFP28
- 16 x 25G SFP28
- 2U, 1 TB, dual PSU
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 2601F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, Gigabit Ethernet
Network Standard: IPSec, IPv4, IPv6, TCP/IP, UDP/IP
Encryption: TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 100000, Concurrent SSL VPN users: 30000, Concurrent TCP sessions: 24000000, Firewall policies: 100000, Gateway to gateway IPSec VPN Tunnels: 20000, Maximum virtual domains: 500, New TCP sessions per second: 1000000, Number of FortiAP devices (tunnel mode): 2048, Number of FortiAP devices: 4096, Number of FortiSwitches: 196, Number of FortiToken devices: 20000, SSL inspection concurrent sessions: 2700000, SSL inspection CPS: 16000, Virtual domains: 10
Network Device: Application control (AVC) throughput: 64 Gbps, CAPWAP throughput: 62.5 Gbps, Firewall latency (64-byte UDP): 3.41 µs, Firewall throughput (1518-byte UDP): 198 Gbps, Firewall throughput (512-byte UDP): 196 Gbps, Firewall throughput (64-byte UDP): 120 Gbps, Firewall throughput: 180 Mpps, IPS throughput: 24 Gbps, NGFW throughput: 19 Gbps, SSL inspection throughput: 20 Gbps, Threat protection throughput: 17 Gbps, VPN throughput (512-bit IPSec): 55 Gbps, VPN throughput (SSL): 16 Gbps
Features: CAPWAP support, DDoS Protection, GRE tunneling, Intrusion Prevention System (IPS), Manageable, Secure web gateway, SSL inspection, Trusted Platform Module (TPM), Virtual Extensible LAN (VXLAN), Web threat protection, Zero-touch provisioning (ZTP)
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x USB 3.0 - Type A, 16 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP/SFP+/SFP28, 16 x 10Base-T - RJ-45, 2 x 1000Base-T (management) - RJ-45, 2 x 1Gb Ethernet/10Gb Ethernet - SFP+, 4 x 40Gb Ethernet/100Gb Ethernet - QSFP+/QSFP28
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 420 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC CP9/NP7
Hard Drive Capacity: 1 TB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 2
Installed Quantity: 2
Dimensions and Weight
Height: 3.5 inch
Width: 17.2 inch
Depth: 21.1 inch
Weight: 30.86 lbs
Included Items
Included Accessories: 2 x 10Gb Ethernet SR SFP+ transceiver
Warranty
Service Activation: No
