Product Information

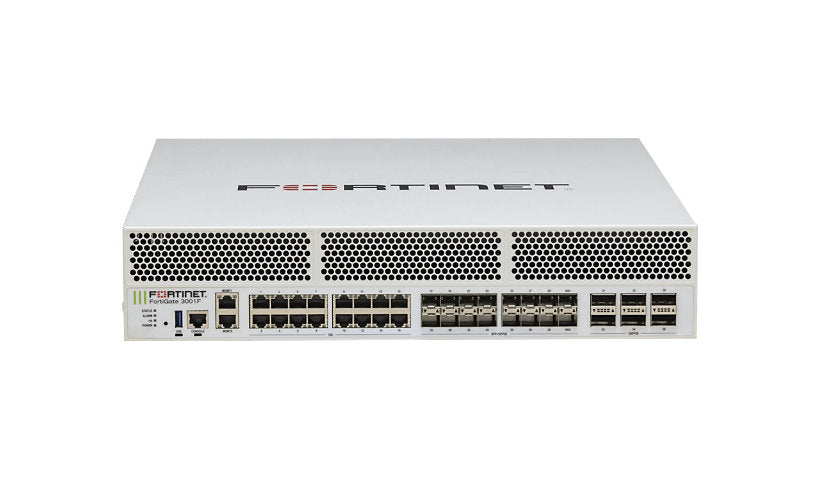

This FortiGate 3000F bundle comes with 3 years of 24x7 FortiCare service and 3 years of FortiGuard. The 3000F is a 2U high end firewall rated at 400 Gbps firewall, 33 Gbps NGFW, 31 Gbps threat protection and 110 Gbps VPN, with up to 70 million concurrent sessions and 750,000 new sessions per second. It has six 40/100G QSFP28 ports, fourteen 1/10/25G SFP28 ports, two 10/25G HA ports, sixteen 1/10G RJ-45 ports, two 10G management ports and dual redundant power supplies. The description gives 33 Gbps as the firewall figure, which is the NGFW figure in the spec.
Key Features
- 3 yr 24x7 FortiCare + FortiGuard
- 400 Gbps firewall
- 33 Gbps NGFW
- 70M concurrent sessions
- 6 x 100G QSFP28
- 2U, dual redundant PSU
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 3000F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, Gigabit Ethernet
Network Standard: IPSec
Capacity: Concurrent sessions: 70000000, New sessions per second: 750000
Network Device: Firewall throughput: 400 Gbps, NGFW throughput: 33 Gbps, Threat protection throughput: 31 Gbps, VPN throughput: 110 Gbps
Features: DDoS Protection, Intrusion Prevention System (IPS), SSL inspection, Virtual Extensible LAN (VXLAN), Zero-touch provisioning (ZTP)
Bundled Services: 3 years FortiCare 24X7 Service + 3 years FortiGuard
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x USB - Type A, 14 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP/SFP+/SFP28, 16 x 1Gb Ethernet/10Gb Ethernet - RJ-45, 2 x 1 Gigabit Ethernet/10Gb Ethernet (management) - RJ-45, 2 x 10Gb Ethernet/25Gb Ethernet (HA) - SFP+/SFP28, 6 x 40Gb Ethernet/100Gb Ethernet - QSFP+/QSFP28
Power
Device Type: Internal power supply
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 2
Status Indicators: Alarm, HA, Power, Status
Certifications and Listing
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
