Product Information

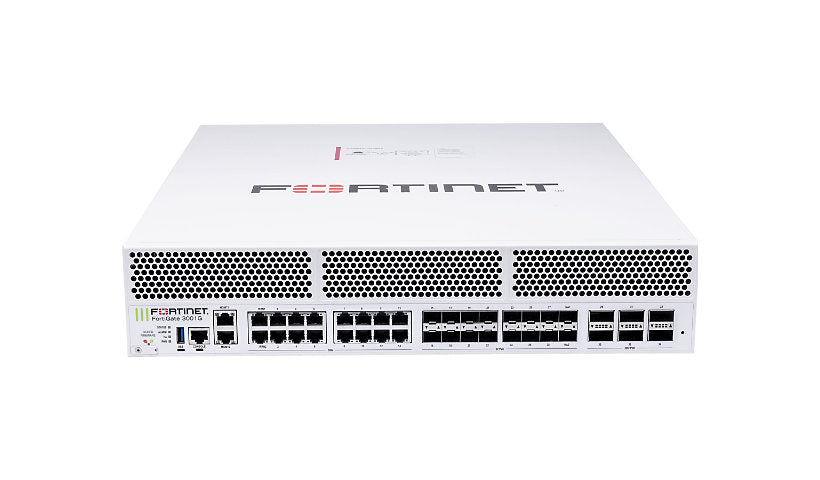

This FortiGate 3001G bundle comes with 1 year of FortiCare Premium support and 1 year of FortiGuard Enterprise Protection. The 3001G is a 2U data center firewall with a 960 GB drive, rated at 397 Gbps firewall (1518-byte UDP), 159 Gbps application control, 90 Gbps IPS, 85 Gbps NGFW and 80 Gbps threat protection, with up to 88 million TCP sessions and 1.1 million new sessions per second. It has six 40/100G QSFP28 ports, sixteen 1/10/25G SFP28 ports, sixteen 1/2.5/5/10G RJ-45 ports (two WAN) and two 10G management ports.
Key Features
- 1 yr Premium + Enterprise Protection
- 397 Gbps firewall (1518-byte UDP)
- 85 Gbps NGFW
- 6 x 100G QSFP28
- 16 x 25G SFP28 + 16 x 10G RJ-45
- 2U, 960 GB storage
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 3001G
Product Type: Security appliance
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 100 Gigabit Ethernet, 2.5 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 5 Gigabit Ethernet, Gigabit Ethernet
Network Standard: HTTP, HTTPs, IPSec, IPv4, IPv6, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 200000, Concurrent SSL VPN users: 30000, Concurrent TCP sessions: 88000000, Firewall policies: 200000, Gateway to gateway IPSec VPN Tunnels: 40000, Maximum concurrent TCP sessions: 230000000, Maximum new TCP sessions per second: 3000000, Maximum number of FortiClients: 50000, Maximum number of FortiTokens: 20000, Maximum virtual domains: 500, New TCP sessions per second: 1100000, Number of FortiAP devices (tunnel): 2048, Number of FortiAP devices: 4096, Number of FortiSwitches: 300, SSL inspection concurrent sessions: 9900000, SSL inspection CPS: 50800, Virtual domains: 10
Network Device: Application control throughput (HTTP 64K): 159 Gbps, CAPWAP Throughput (HTTP 64K): 148 Gbps, Firewall latency (64-byte UDP): 3.7 µs, Firewall throughput (1518-byte UDP): 397 Gbps, Firewall throughput (512-byte UDP): 394 Gbps, Firewall throughput (64-byte UDP): 234 Gbps, Firewall throughput: 351 Mpps, IPS throughput (enterprise traffic mix): 90 Gbps, NGFW throughput (enterprise traffic mix): 85 Gbps, SSL inspection throughput: 75 Gbps, Threat protection throughput (enterprise traffic mix): 80 Gbps, VPN throughput (512-bit IPSec): 105 Gbps, VPN throughput (SSL): 9 Gbps
Operating System Edition: FortiOS
Features: AI/ML powered, Firewall protection, FortiSentry module, Signed firmware, Trusted Platform Module (TPM), Zero Trust Network Access (ZTNA)
Bundled Services: 1 year FortiCare Premium Support + 1 year FortiGuard Enterprise Protection
Connectivity
Interface Provided: 1 x console, 1 x USB 3.0 - Type A, 14 x 1/2.5/5/10 Gigabit Ethernet - RJ-45, 16 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP/SFP+/SFP28, 2 x 1 Gigabit Ethernet/10Gb Ethernet (management) - RJ-45, 2 x 1/2.5/5/10 Gigabit Ethernet - RJ-45 (WAN), 6 x 40Gb Ethernet/100Gb Ethernet - QSFP+/QSFP28
Power
Device Type: Internal power supply
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC CP10/NP7
Hard Drive Capacity: 960 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 2
Airflow Direction: Front to back airflow
Status Indicators: Alarm, Firmware, HA, Link/activity, Power, Power fail, Speed, Status
Installed Quantity: 2
Dimensions and Weight
Height: 3.5 inch
Width: 17.2 inch
Depth: 19.5 inch
Weight: 34.06 lbs
Included Items
Included Accessories: 12 screws, 2 power cords, 2 rack mount brackets, 2 x SR 10Gbps SFP+ transceivers, 6 rubber feet
Cables: 1 x console cable, 1 x network cable
Warranty
Service Activation: No
