Product Information

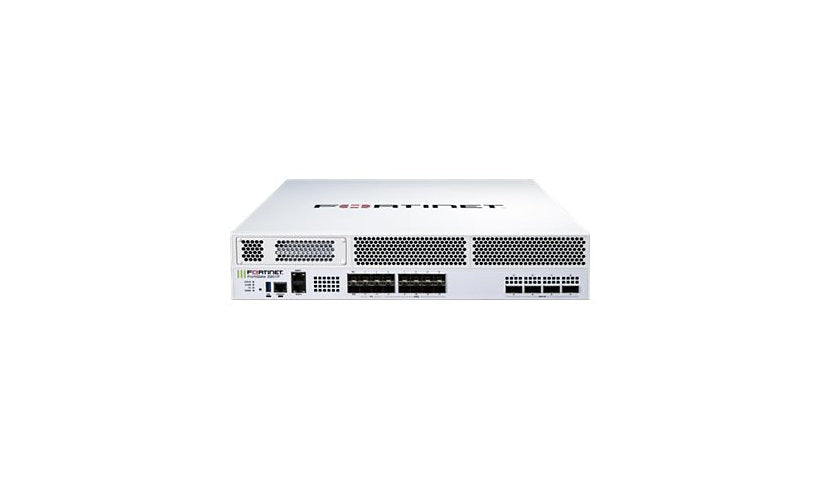

This FortiGate 3201F bundle comes with 5 years of FortiCare Premium support and 5 years of FortiGuard Enterprise Protection. The 3201F is the 3200F model with 1 TB of storage, a 2U data center firewall rated at 387 Gbps firewall (1518-byte UDP), 109 Gbps application control and 63 Gbps IPS, with up to 70 million TCP sessions and 800,000 new sessions per second. It has four 40/100/200/400G QSFP ports, ten 10/25/50G SFP56 ports, four ultra low latency 10/25G SFP28 ports, two 50G HA ports and two 10G management ports.
Key Features
- 5 yr Premium + Enterprise Protection
- 387 Gbps firewall (1518-byte UDP)
- 70M TCP sessions
- 4 x 400G QSFP-DD
- 10 x 50G SFP56
- 2U, 1 TB storage
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 3201F
Product Type: Security appliance
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 100 Gigabit Ethernet, 200 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 400 Gigabit Ethernet, 50 Gigabit Ethernet, Gigabit Ethernet
Network Standard: DNS, HTTP, HTTPs, IPSec, IPv4, IPv6, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 200000, Concurrent SSL VPN users: 30000, Concurrent TCP sessions: 70000000, Firewall policies: 200000, Gateway to gateway IPSec VPN Tunnels: 40000, Maximum virtual domains: 500, New TCP sessions per second: 800000, Number of FortiAP devices (tunnel): 2048, Number of FortiAP devices: 4096, Number of FortiSwitches: 300, Number of FortiToken devices: 20000, Number of registered FortiClients: 20000, SSL inspection concurrent sessions: 7400000, SSL inspection CPS: 30000, Virtual domains: 10
Network Device: Application control throughput: 109 Gbps, CAPWAP throughput: 65 Gbps, Firewall latency (64-byte UDP): 3.42 µs, Firewall throughput (1518-byte UDP): 387 Gbps, Firewall throughput (512-byte UDP): 385 Gbps, Firewall throughput (64-byte UDP): 178.5 Gbps, Firewall throughput: 267.75 Mpps, IPS throughput (enterprise traffic mix): 63 Gbps, IPv6 firewall throughput (1518-byte UDP): 387 Gbps, IPv6 firewall throughput (512-byte UDP): 385 Gbps, IPv6 firewall throughput (86-byte UDP): 178.5 Gbps, NGFW throughput (enterprise traffic mix): 47 Gbps, SSL inspection throughput: 29 Gbps, Threat protection throughput (enterprise traffic mix): 45 Gbps, VPN throughput (512-bit IPSec): 105 Gbps, VPN throughput (SSL): 11 Gbps
Operating System Edition: FortiOS
Features: CAPWAP support, High Availability, SSL inspection, Trusted Platform Module (TPM), Virtual Extensible LAN (VXLAN), VPN support
Bundled Services: 5 years FortiCare Premium Support + 5 years FortiGuard Enterprise Protection
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x USB 3.0, 10 x 10Gb Ethernet/25Gb Ethernet/50Gb Ethernet - SFP+/SFP28/SFP56, 2 x 10Gb Ethernet (management) - RJ-45, 2 x 10Gb Ethernet/25Gb Ethernet/50Gb Ethernet (High Availability) - SFP+/SFP28/SFP56, 4 x 10Gb Ethernet/25Gb Ethernet (ultra-low latency) - SFP+/SFP28, 4 x 40Gb Ethernet/100Gb Ethernet/200Gb Ethernet/400Gb Ethernet - QSFP+/QSFP28/QSFP56/QSFP-DD
Power
Device Type: Internal power supply
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC CP9/NP7
Hard Drive Capacity: 1 TB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 2
Airflow Direction: Front to back airflow
Status Indicators: Alarm, HA, Link/activity, Power, Status
Installed Quantity: 2
Dimensions and Weight
Height: 3.5 inch
Width: 17.4 inch
Depth: 23.9 inch
Weight: 45.64 lbs
Included Items
Included Accessories: 2 x SR 10Gbps SFP+ transceivers
Warranty
Service Activation: No
