Product Information

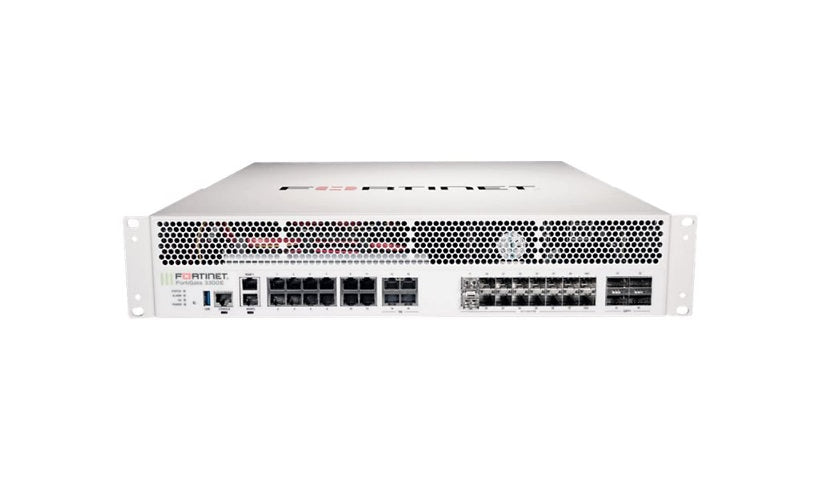

This FortiGate 3300E UTM bundle comes with 5 years of 24x7 FortiCare service and 5 years of FortiGuard protection. The 3300E is a 2U firewall for large enterprises and service providers, rated at 160 Gbps firewall (1518-byte UDP), 70 Gbps application control, 27 Gbps IPS, 23 Gbps NGFW, 17 Gbps threat protection and 98 Gbps IPsec VPN, with up to 50 million concurrent TCP sessions and 460,000 new sessions per second. It has four 40G QSFP+ ports, sixteen 10/25G SFP28 ports, four 10G RJ-45 ports, twelve Gigabit RJ-45 ports and two management ports, with two power supplies and about 610 W draw.
Key Features
- 5 yr 24x7 FortiCare + FortiGuard
- 160 Gbps firewall (1518-byte UDP)
- 23 Gbps NGFW
- 50M concurrent sessions
- 4 x 40G + 16 x 25G SFP28
- 2U, dual power supplies
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 3300E
Product Type: Security appliance
Kit: UTM Bundle
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 40 Gigabit Ethernet, Gigabit Ethernet
Network Standard: IPSec, SCTP, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL
Capacity: Client to gateway IPSec VPN tunnels: 200000, Concurrent SSL VPN users: 30000, Concurrent TCP sessions: 50000000, Firewall policies: 200000, Gateway to gateway IPSec VPN Tunnels: 40000, Maximum number of registered endpoints: 50000, New TCP sessions per second: 460000, Number of FortiAP devices: 4096, Number of FortiSwitches: 256, Number of FortiToken devices: 20000, SSL connections per second: 11000, Virtual domains: 10
Network Device: Application control (AVC) throughput: 70 Gbps, CAPWAP throughput: 55 Gbps, Firewall latency (64-byte UDP): 4 µs, Firewall throughput (1518-byte UDP): 160 Gbps, Firewall throughput (512-byte UDP): 158 Gbps, Firewall throughput (64-byte UDP): 100 Gbps, Firewall throughput: 150 Mpps, IPS throughput: 27 Gbps, NGFW throughput: 23 Gbps, SSL inspection throughput: 21 Gbps, Threat protection throughput: 17 Gbps, VPN throughput (512-bit IPSec): 98 Gbps, VPN throughput (SSL): 10 Gbps
Operating System Edition: FortiOS
Features: Anti-malware protection, CAPWAP support, Checksum offload support, Firewall protection, High Availability, Intrusion Prevention System (IPS), IP tunnel acceleration, IPSec Virtual Private Network (VPN), IPv4 support, IPv6 support, Multicast traffic, Routing, Switching, Traffic shaping, VPN support, Web threat protection
Bundled Services: 5 years FortiCare 24X7 Service + 5 years FortiGuard
Connectivity
Interface Provided: 1 x console, 1 x USB 3.0 - Type A, 12 x 1000Base-T - RJ-45, 16 x 10Gb Ethernet/25Gb Ethernet - SFP+/SFP28, 2 x 1000Base-T (management) - RJ-45, 4 x 10GBase-T - RJ-45, 4 x 40Gb Ethernet - QSFP+
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 610 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 2
Status Indicators: Alarm, HA, Link/activity, Power, Status
Dimensions and Weight
Height: 3.5 inch
Width: 17.4 inch
Depth: 21.9 inch
Weight: 42.99 lbs
Included Items
Included Accessories: 2 x 10Gb Ethernet SR SFP+ transceiver
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
