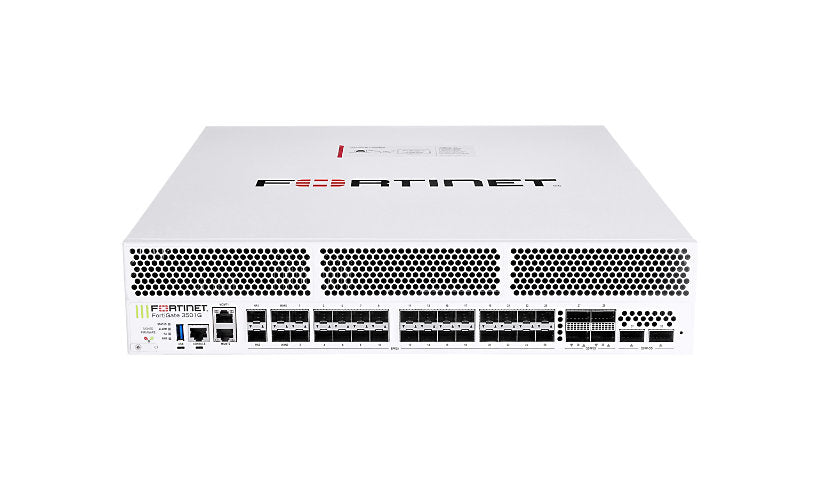

Product Information
The Fortinet FortiGate 3501G is a 2U high end data center firewall with a 1.92 TB drive, rated at 595 Gbps firewall (1518-byte UDP), 197 Gbps application control, 125 Gbps IPS, 115 Gbps NGFW and 105 Gbps threat protection, with up to 179 million TCP sessions and 1.1 million new sessions per second. It has two 40/100/200/400G QSFP-DD ports, four 40/100G QSFP28 ports, thirty 1/10/25G SFP28 ports, two 10G management ports and dual redundant power supplies, drawing about 688 W.
Key Features
- 595 Gbps firewall (1518-byte UDP)
- 115 Gbps NGFW
- 179M TCP sessions
- 2 x 400G QSFP-DD + 4 x 100G
- 30 x 25G SFP28
- 2U, 1.92 TB storage
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 3501G
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 100 Gigabit Ethernet, 2.5 Gigabit Ethernet, 200 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 400 Gigabit Ethernet, 5 Gigabit Ethernet, Gigabit Ethernet
Network Standard: HTTP, HTTPs, IPSec, IPv4, IPv6, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: 2048, Client to gateway IPSec VPN tunnels: 200000, Concurrent SSL VPN users: 30000, Concurrent TCP sessions: 179000000, Firewall policies: 200000, Gateway to gateway IPSec VPN Tunnels: 40000, Maximum number of FortiClients: 50000, Maximum number of FortiTokens: 20000, Maximum virtual domains: 500, New TCP sessions per second: 1100000, Number of FortiAP devices: 4096, Number of FortiSwitches: 300, SSL inspection concurrent sessions: 18000000, SSL inspection CPS: 112345, Virtual domains: 10
Network Device: Application control throughput (HTTP 64K): 197 Gbps, Firewall latency (64-byte UDP): 2.96 µs, Firewall throughput (1518-byte UDP): 595 Gbps, Firewall throughput (512-byte UDP): 590 Gbps, Firewall throughput (64-byte UDP): 420 Gbps, Firewall throughput: 630 Mpps, IPS throughput (enterprise traffic mix): 125 Gbps, NGFW throughput (enterprise traffic mix): 115 Gbps, SSL inspection throughput: 112 Gbps, Threat protection throughput (enterprise traffic mix): 105 Gbps, VPN throughput (512-bit IPSec): 163 Gbps, VPN throughput (SSL): 9.8 Gbps
Features: AI/ML powered, Firewall protection, FortiSentry module, Signed firmware, SSL inspection, Trusted Platform Module (TPM), Zero Trust Network Access (ZTNA)
Connectivity
Interface Provided: 1 x console, 1 x USB 3.0 - Type A, 2 x 1 Gigabit Ethernet/10Gb Ethernet (management) - RJ-45, 2 x 40Gb Ethernet/100Gb Ethernet/200Gb Ethernet/400Gb Ethernet - QSFP+/QSFP28/QSFP56/QSFP-DD, 30 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP+/SFP28, 4 x 40Gb Ethernet/100Gb Ethernet - QSFP+/QSFP28
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Power Consumption Operational: 688 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
80 PLUS Certification: 80 PLUS
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC CP10/NP7
Hard Drive Capacity: 1.92 TB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 2
Airflow Direction: Front to back airflow
Status Indicators: Alarm, HA, Link/activity, Power, Status
Installed Quantity: 2
Dimensions and Weight
Height: 3.5 inch
Width: 17.4 inch
Depth: 20.8 inch
Weight: 37.04 lbs
Included Items
Included Accessories: 12 screws, 2 power cords, 2 rack mount brackets, 2 x SR 10Gbps SFP+ transceivers, 6 rubber feet
Cables: 1 x console cable, 1 x network cable
Warranty
Service Activation: No
