Product Information

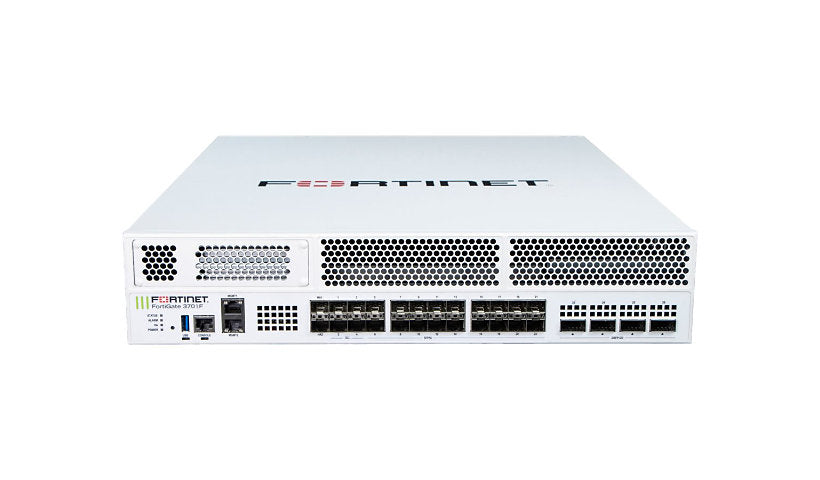

This FortiGate 3700F bundle comes with 3 years of FortiCare Premium support and 3 years of FortiGuard Enterprise Protection. The 3700F is a 2U data center firewall rated at 589 Gbps firewall (1518-byte UDP), 190 Gbps application control and 86 Gbps IPS, with up to 140 million TCP sessions and 930,000 new sessions per second. It has four 40/100/200/400G QSFP-DD ports, twenty 10/25/50G SFP56 ports, four 1/10/25G SFP28 ports, two 10G management ports and dual redundant power supplies.
Key Features
- 3 yr Premium + Enterprise Protection
- 589 Gbps firewall (1518-byte UDP)
- 86 Gbps IPS
- 140M TCP sessions
- 4 x 400G + 20 x 50G SFP56
- 2U, dual redundant PSU
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 3700F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 100 Gigabit Ethernet, 200 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 400 Gigabit Ethernet, 50 Gigabit Ethernet, Gigabit Ethernet
Network Standard: HTTP, HTTPs, IPSec, IPv4, IPv6, SCTP, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 200000, Concurrent SSL VPN users: 30000, Concurrent TCP sessions: 140000000, Firewall policies: 200000, Gateway to gateway IPSec VPN Tunnels: 40000, Maximum virtual domains: 500, New TCP sessions per second: 930000, Number of FortiAP devices (tunnel): 2048, Number of FortiAP devices: 4096, Number of FortiSwitches: 300, Number of FortiToken devices: 20000, SSL inspection concurrent sessions: 15000000, SSL inspection CPS: 57000, Virtual domains: 10
Network Device: Application control throughput: 190Gbps, CAPWAP throughput: 65 Gbps, Firewall latency (64-byte UDP): 3.56µs, Firewall throughput (1518-byte UDP): 589Gbps, Firewall throughput (512-byte UDP): 589Gbps, Firewall throughput (64-byte UDP): 420 Gbps, Firewall throughput: 630 Mpps, IPS throughput (enterprise traffic mix): 86 Gbps, IPv6 firewall throughput (1518-byte UDP): 589Gbps, IPv6 firewall throughput (512-byte UDP): 589Gbps, IPv6 firewall throughput (64-byte UDP): 420 Gbps, NGFW throughput (enterprise traffic mix): 80 Gbps, SSL inspection throughput: 55 Gbps, Threat protection throughput (enterprise traffic mix): 75 Gbps, VPN throughput (512-bit IPSec): 160 Gbps, VPN throughput (SSL): 16 Gbps
Features: Anti-malware protection, Anti-virus protection, CAPWAP support, Carrier Grade NAT (CGN/CGNAT), Checksum offload support, Clustering technology, Firewall protection, Forti Carrier, High Availability, Intrusion Prevention System (IPS), IP Security (IPSec) support, Manageable, Secure web gateway, Segmentation offload, Traffic shaping, Trusted Platform Module (TPM), URL filtering, VPN support, Zero-Touch Deployment
Bundled Services: 3 years FortiCare Premium Support + 3 years FortiGuard Enterprise Protection
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x USB - Type A, 2 x 1 Gigabit Ethernet/10Gb Ethernet (management) - RJ-45, 20 x 10Gb Ethernet/25Gb Ethernet/50Gb Ethernet - SFP+/SFP28/SFP56, 4 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP/SFP+/SFP28, 4 x 40Gb Ethernet/100Gb Ethernet/200Gb Ethernet/400Gb Ethernet - QSFP+/QSFP28/QSFP56/QSFP-DD
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 560 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC CP9/NP7
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 2
Airflow Direction: Front to back airflow
Status Indicators: Alarm, HA, Link/activity, Power, Status
Dimensions and Weight
Height: 3.5 inch
Width: 17.4 inch
Depth: 23.9 inch
Weight: 47.18 lbs
Included Items
Included Accessories: 2 x SR 10Gbps SFP+ transceivers
Warranty
Service Activation: No
