Product Information

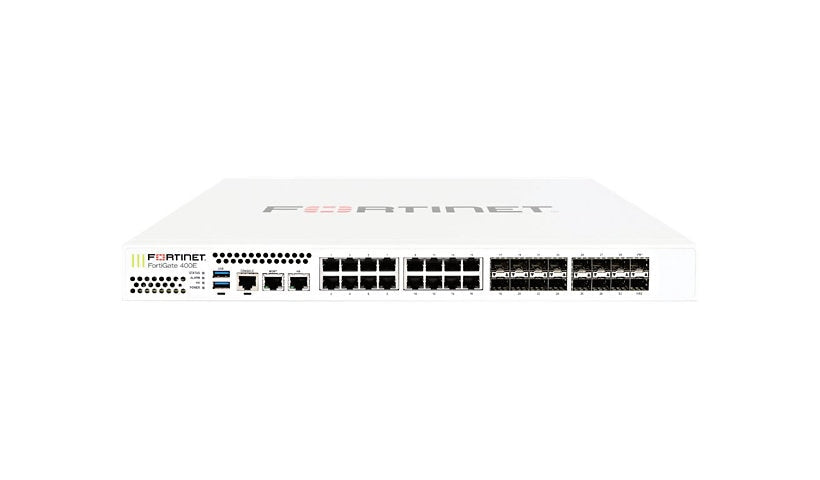

This FortiGate 400E bundle comes with 1 year of 24x7 FortiCare service and 1 year of FortiGuard protection. The 400E is a 1U firewall for mid to large enterprise campus and branch use, rated at 32 Gbps firewall (1518-byte), 12 Gbps application control, 7.8 Gbps IPS and 5 Gbps threat protection, with up to 4 million concurrent TCP sessions and 450,000 new sessions per second. It has eighteen Gigabit RJ-45 ports, eighteen SFP ports, two RJ-45 management ports, an RJ-45 console and USB ports.
Key Features
- 1 yr 24x7 FortiCare + FortiGuard
- 32 Gbps firewall (1518-byte)
- 7.8 Gbps IPS
- 4M concurrent sessions
- 18 x 1G RJ-45 + 18 x SFP
- 1U rack mount
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 400E
Product Type: Security appliance
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: IPSec, SCTP, TCP/IP, UDP/IP
Remote Management: CLI, HTTP
Encryption: 256-bit AES, 256-bit SHA, SSL
Capacity: Client to gateway IPSec VPN tunnels: 20000, Concurrent SSL VPN users: 500, Concurrent TCP sessions: 4000000, Firewall policies: 10000, Gateway to gateway IPSec VPN Tunnels: 2000, New TCP sessions per second: 450000, Number of FortiAP devices: 512, Number of FortiClient devices: 600, Number of FortiToken devices: 1000, Virtual domains: 10
Network Device: Application control (AVC) throughput: 12 Gbps, CAPWAP throughput: 14.8 Gbps, Firewall latency (64-byte UDP): 3 µs, Firewall throughput (1518-byte packet size): 32 Gbps, Firewall throughput (512-byte packet size): 32 Gbps, Firewall throughput (64-byte packet size): 24 Gbps, Firewall throughput: 24 Mpps, HTTP Throughput: 12 Gbps, IPS throughput: 7.8 Gbps, SSL inspection throughput: 4.8 Gbps, Threat protection throughput: 5 Gbps, VPN throughput (512-bit IPSec): 20 Gbps, VPN throughput (SSL): 4.5 Gbps
Operating System Edition: FortiOS
Features: Antivirus analysis, Application filtering, CAPWAP support, Checksum offload support, Firewall protection, High Availability, Intrusion Prevention System (IPS), IP tunnel acceleration, IPSec Virtual Private Network (VPN), IPv4 support, IPv6 support, Manageable, Routing, Switching, Traffic shaping, URL filtering, VPN acceleration capability, Web threat protection
Bundled Services: 1 year FortiCare 24X7 Service + 1 year FortiGuard
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x management (USB) - Type B, 18 x 1000Base-T - RJ-45, 18 x Ethernet 1000 - SFP (mini-GBIC), 2 x 1000Base-T (management) - RJ-45, 2 x USB - Type A
Power
Device Type: Internal power supply
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC CP9/NP6
Optical Drive Type: None
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17 inch
Depth: 15 inch
Weight: 16.31 lbs
Included Items
Included Accessories: 2 SX SFP transceivers
Warranty
Service Activation: No
