Product Information

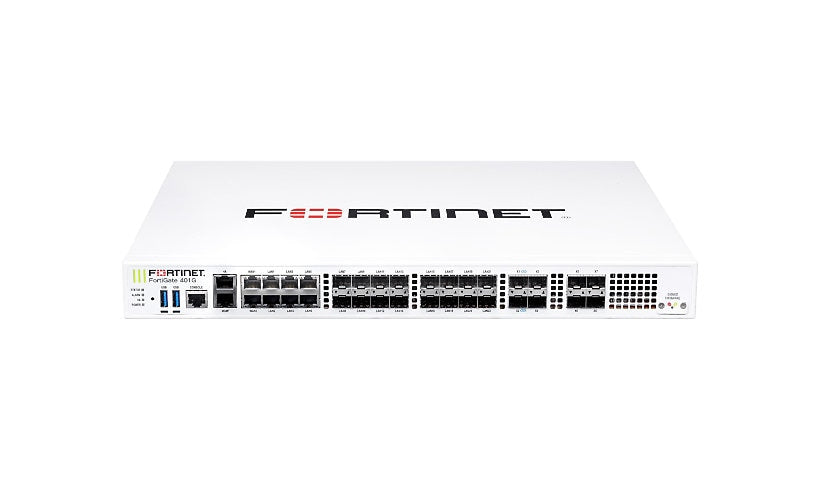

The Fortinet FortiGate 400G is a 1U firewall rated at 164 Gbps firewall (1518-byte UDP), 50 Gbps application control, 25 Gbps IPS and 14 Gbps NGFW, with up to 28 million TCP sessions, 580,000 new sessions per second and 50,000 client to gateway IPsec tunnels. It has eight 5G RJ-45 ports, sixteen SFP ports, four 10G SFP/SFP+ ports, four 10/25G SFP28 ports, a 2.5G port, a management port and dual redundant power supplies, drawing about 230 W. This is the hardware without a service bundle.
Key Features
- 164 Gbps firewall (1518-byte UDP)
- 25 Gbps IPS
- 28M TCP sessions
- 8 x 5G RJ-45 + 16 x SFP
- 4 x SFP+ + 4 x SFP28
- 1U, dual redundant PSU
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 400G
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 25 Gigabit Ethernet, 5 Gigabit Ethernet, Gigabit Ethernet
Network Standard: HTTP, HTTPs, IPSec, IPv4, IPv6, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 50000, Concurrent SSL VPN users: 5000, Concurrent TCP sessions: 28000000, Firewall policies: 10000, Gateway to gateway IPSec VPN Tunnels: 2000, Maximum virtual domains: 25, New TCP sessions per second: 580000, Number of FortiAP devices (tunnel): 256, Number of FortiAP devices: 512, Number of FortiSwitches: 96, Number of FortiToken devices: 5000, SSL inspection concurrent sessions: 3000000, SSL inspection CPS: 9700, Virtual domains: 10
Network Device: Application control throughput: 50 Gbps, CAPWAP throughput: 131 Gbps, Firewall latency (64-byte UDP): 2.5 µs, Firewall throughput: 217.5 Mpps, IPS throughput (enterprise traffic mix): 25 Gbps, IPv4 firewall throughput (1518-byte UDP): 164 Gbps, IPv4 firewall throughput (512-byte UDP): 164 Gbps, IPv4 firewall throughput (64-byte UDP): 145 Gbps, IPv6 firewall throughput (1518-byte UDP): 164 Gbps, IPv6 firewall throughput (512-byte UDP): 164 Gbps, IPv6 firewall throughput (86-byte UDP): 145 Gbps, NGFW throughput (enterprise traffic mix): 14 Gbps, SSL inspection throughput: 11.5 Gbps, Threat protection throughput (enterprise traffic mix): 13 Gbps, VPN throughput (512-bit IPSec): 55 Gbps, VPN throughput (SSL): 6.1 Gbps
Operating System Edition: FortiOS
Features: AI/ML powered, CAPWAP support, Firewall protection, FortiSentry module, High Availability, SD-WAN support, Signed firmware, SSL inspection, Trusted Platform Module (TPM), VPN support, Zero Trust Network Access (ZTNA)
Connectivity
Interface Provided: 1 x 1000Base-T (management) - RJ-45, 1 x 2.5 GBase-T - RJ-45, 1 x console, 16 x 1000Base-X - SFP, 2 x USB - Type A, 4 x 10 Gigabit Ethernet - SFP/SFP+, 4 x 10Gb Ethernet/25Gb Ethernet - SFP+/SFP28, 8 x 5GBase-T - RJ-45
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 230 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC CP10/NP7
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front and side to back
Status Indicators: Alarm, HA, Link/activity, Power, Status
Built-in Devices: 5 x fans
Dimensions and Weight
Height: 1.7 inch
Width: 17 inch
Depth: 13.5 inch
Weight: 7.72 lbs
Included Items
Included Accessories: 2 mounting brackets, 2 power cords, 2 SX SFP transceivers, 4 rubber feet, 8 mounting screws
Cables: 1 x console cable, 1 x network cable
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
