Product Information

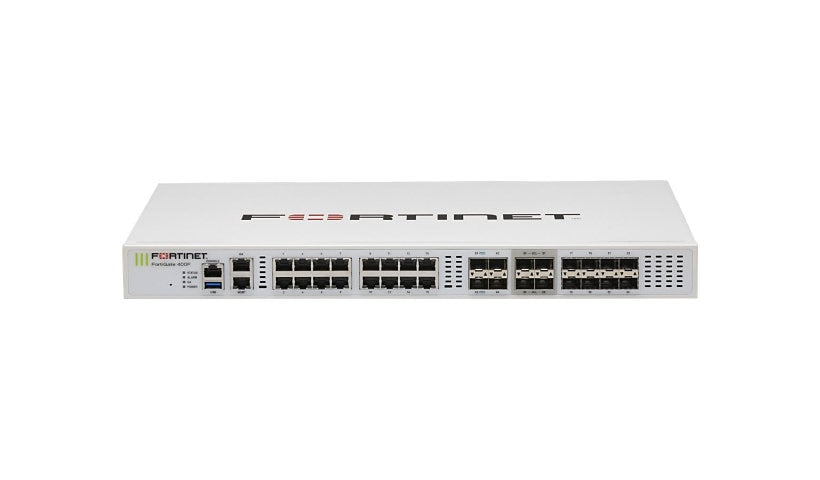

This FortiGate 401F bundle comes with 5 years of FortiCare Premium support and 5 years of FortiGuard Enterprise Protection. The 401F is the 400F series 1U model with a 480 GB SSD, rated at 79.5 Gbps firewall (1518-byte UDP), 28 Gbps application control and 12 Gbps IPS, with up to 7.8 million TCP sessions and 500,000 new sessions per second. It has sixteen Gigabit RJ-45 ports, eight SFP ports, four 1/10G SFP+ ports, four ultra low latency 10G SFP+ ports, HA and management ports.
Key Features
- 5 yr Premium + Enterprise Protection
- 480 GB SSD
- 79.5 Gbps firewall (1518-byte UDP)
- 16 x 1G RJ-45 + 8 x SFP
- 8 x 10G SFP+ (4 ULL)
- 1U rack mount
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 401F
Product Type: Security appliance
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: HTTP, HTTPs, IPSec, IPv4, IPv6, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 50000, Concurrent SSL VPN users: 5000, Concurrent TCP sessions: 7800000, Firewall policies: 10000, Gateway to gateway IPSec VPN Tunnels: 2000, Maximum virtual domains: 10, New TCP sessions per second: 500000, Number of FortiAP devices (tunnel): 256, Number of FortiAP devices: 512, Number of FortiSwitches: 72, Number of FortiToken devices: 5000, SSL inspection concurrent sessions: 800000, SSL inspection CPS: 6000, Virtual domains: 10
Network Device: Application control throughput: 28 Gbps, CAPWAP throughput: 65 Gbps, Firewall latency (64-byte UDP, ULL ports): 2.5 µs, Firewall latency (64-byte UDP): 4.19 µs, Firewall throughput: 105 Mpps, IPS throughput (enterprise traffic mix): 12 Gbps, IPv4 firewall throughput (1518-byte UDP): 79.5 Gbps, IPv4 firewall throughput (512-byte UDP): 78.5 Gbps, IPv4 firewall throughput (64-byte UDP): 70 Gbps, IPv6 firewall throughput (1518-byte UDP): 79.5 Gbps, IPv6 firewall throughput (512-byte UDP): 78.5 Gbps, IPv6 firewall throughput (86-byte UDP): 70 Gbps, NGFW throughput (enterprise traffic mix): 10 Gbps, SSL inspection throughput: 8 Gbps, Threat protection throughput (enterprise traffic mix): 9 Gbps, VPN throughput (512-bit IPSec): 55 Gbps, VPN throughput (SSL): 3.6 Gbps
Operating System Edition: FortiOS
Features: CAPWAP support, High Availability, IP tunnel acceleration, SD-WAN support, SSL inspection, Trusted Platform Module (TPM), VPN support, Zero Trust Network Access (ZTNA)
Bundled Services: 5 years FortiCare Premium Support + 5 years FortiGuard Enterprise Protection
Connectivity
Interface Provided: 1 x 1000Base-T (HA) - RJ-45, 1 x 1000Base-T (management) - RJ-45, 1 x console - RJ-45, 1 x USB - Type A, 16 x 1000Base-T - RJ-45, 4 x 1000Base-X/10GBase-X - SFP+, 4 x 10GBase-X (ultra-low latency) - SFP+, 8 x 1000Base-X - SFP
Power
Device Type: Internal power supply
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC CP9/NP7
Hard Drive Capacity: 480 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front and side to back
Status Indicators: Alarm, HA, Power, Status
Installed Quantity: 2
Dimensions and Weight
Height: 1.7 inch
Width: 17 inch
Depth: 15 inch
Weight: 14.33 lbs
Included Items
Included Accessories: 2 x 1Gb Ethernet SX SFP transceiver
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
