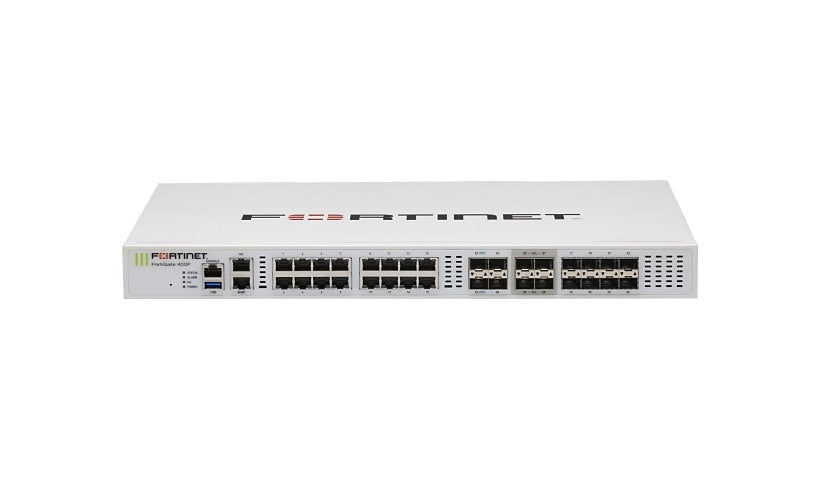

The Fortinet FortiGate 401F is the 400F series 1U model with a 480 GB SSD, rated at 79.5 Gbps firewall (1518-byte UDP), 28 Gbps application control and 12 Gbps IPS, with up to 7.8 million TCP sessions and 500,000 new sessions per second. It has sixteen Gigabit RJ-45 ports, eight SFP ports, four 1/10G SFP+ ports, four ultra low latency 10G SFP+ ports, HA and management ports. This is the hardware without a service bundle.
Key Features
- 480 GB SSD
- 79.5 Gbps firewall (1518-byte UDP)
- 12 Gbps IPS
- 16 x 1G RJ-45 + 8 x SFP
- 8 x 10G SFP+ (4 ULL)
- 1U rack mount
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 401F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: HTTP, HTTPs, IPSec, IPv4, IPv6, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 50000, Concurrent SSL VPN users: 5000, Concurrent TCP sessions: 7800000, Firewall policies: 10000, Gateway to gateway IPSec VPN Tunnels: 2000, Maximum virtual domains: 10, New TCP sessions per second: 500000, Number of FortiAP devices (tunnel): 256, Number of FortiAP devices: 512, Number of FortiSwitches: 72, Number of FortiToken devices: 5000, SSL inspection concurrent sessions: 800000, SSL inspection CPS: 6000, Virtual domains: 10
Network Device: Application control throughput: 28 Gbps, CAPWAP throughput: 65 Gbps, Firewall latency (64-byte UDP, ULL ports): 2.5 µs, Firewall latency (64-byte UDP): 4.19 µs, Firewall throughput: 105 Mpps, IPS throughput (enterprise traffic mix): 12 Gbps, IPv4 firewall throughput (1518-byte UDP): 79.5 Gbps, IPv4 firewall throughput (512-byte UDP): 78.5 Gbps, IPv4 firewall throughput (64-byte UDP): 70 Gbps, IPv6 firewall throughput (1518-byte UDP): 79.5 Gbps, IPv6 firewall throughput (512-byte UDP): 78.5 Gbps, IPv6 firewall throughput (86-byte UDP): 70 Gbps, NGFW throughput (enterprise traffic mix): 10 Gbps, SSL inspection throughput: 8 Gbps, Threat protection throughput (enterprise traffic mix): 9 Gbps, VPN throughput (512-bit IPSec): 55 Gbps, VPN throughput (SSL): 3.6 Gbps
Features: CAPWAP support, High Availability, IP tunnel acceleration, SD-WAN support, SSL inspection, Trusted Platform Module (TPM), VPN support, Zero Trust Network Access (ZTNA)
Connectivity
Interface Provided: 1 x 1000Base-T (HA) - RJ-45, 1 x 1000Base-T (management) - RJ-45, 1 x console - RJ-45, 1 x USB - Type A, 16 x 1000Base-T - RJ-45, 4 x 1000Base-X/10GBase-X - SFP+, 4 x 10GBase-X (ultra-low latency) - SFP+, 8 x 1000Base-X - SFP
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 161.1 watt
Power Supplies Supported: 2
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
80 PLUS Certification: 80 PLUS
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC CP9/NP7
Hard Drive Capacity: 480 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front and side to back
Status Indicators: Alarm, HA, Power, Status
Installed Quantity: 2
Dimensions and Weight
Height: 1.7 inch
Width: 17 inch
Depth: 15 inch
Weight: 14.33 lbs
Included Items
Included Accessories: 2 x 1Gb Ethernet SX SFP transceiver
Warranty
Service Activation: No
