Product Information

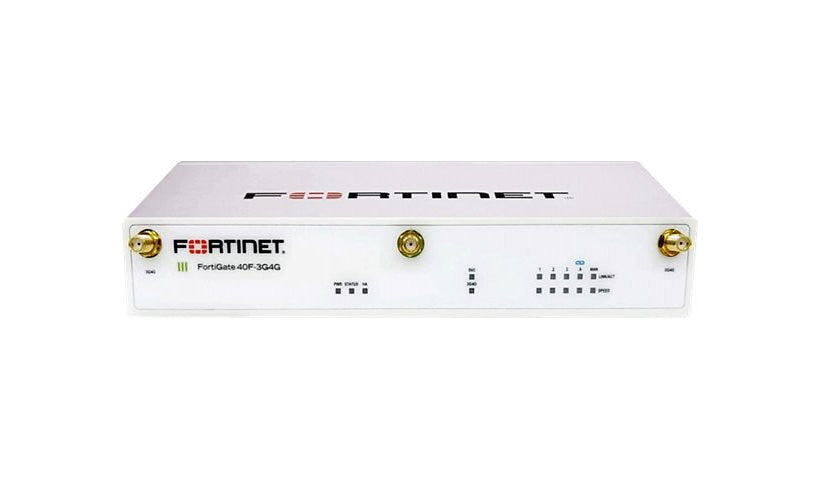

The Fortinet FortiGate 40F-3G4G is a fanless desktop firewall and SD-WAN appliance with a built in 3G/4G LTE modem and three SMA antenna connectors. It is rated at 5 Gbps firewall (1518-byte UDP), 1 Gbps IPS, 800 Mbps NGFW and 4.4 Gbps IPsec VPN, with up to 700,000 concurrent sessions and 250 client to gateway tunnels. It has one WAN port, one FortiLink port, three Gigabit LAN ports, a console and USB 3.0, drawing about 18.6 W.
Key Features
- Built in 3G/4G LTE
- 5 Gbps firewall (1518-byte UDP)
- 800 Mbps NGFW
- 700,000 concurrent sessions
- 1 WAN + 1 FortiLink + 3 LAN
- Fanless desktop
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 40F-3G4G
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: IPSec
Encryption: SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 250, Concurrent sessions: 700000, Concurrent SSL VPN users: 200, Firewall policies: 5000, Gateway to gateway IPSec VPN Tunnels: 200, New sessions: 35000, Number of FortiAP devices: 16, Number of FortiSwitches: 8, Number of FortiToken devices: 500, SSL inspection concurrent sessions: 55000, Virtual domains: 10
Cellular Data Connectivity Technology: EDGE, GPRS, GSM, HSPA+, LTE, UMTS
Mobile Broadband Access: Yes
Network Device: Application control (HTTP 64K): 990 Mbps, CAPWAP throughput: 3.5 Gbps, Firewall latency (64-byte UDP): 4 µs, Firewall throughput (1518-byte UDP): 5 Gbps, Firewall throughput (512-byte UDP): 5 Gbps, Firewall throughput (64-byte UDP): 5 Gbps, Firewall throughput: 7.5 Mpps, IPS throughput: 1 Gbps, NGFW throughput: 800 Mbps, SSL inspection throughput: 310 Mbps, SSL inspection throughput: 320 connections per second, Threat protection throughput: 600 Mbps, VPN throughput (512-bit IPSec): 4.4 Gbps, VPN throughput (SSL): 490 Mbps
Antennas: 3
Antenna Form Factor: External detachable
Operating System Edition: FortiOS
Features: Fanless, Firewall protection, FortiLink Mode, Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), Web threat protection
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45 (WAN), 1 x console - RJ-45, 1 x FortiLink - RJ-45, 1 x USB 3.0 - Type A, 3 x 1000Base-T - RJ-45, 3 x antenna - SMA
Expansion Slots: 2 Micro SIM card
Power
Device Type: External power adapter
Frequency: 50/60 hertz
Power Consumption Operational: 18.6 watt
Power Supplies Installed: 1
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SOC4
Processors Installed: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Desktop
Status Indicators: 3G, 4G, HA, Power, Status
Built-in Devices: 4-port switch
Dimensions and Weight
Height: 1.6 inch
Width: 8.5 inch
Depth: 6.3 inch
Weight: 2.2 lbs
Warranty
Service Activation: No
