Product Information

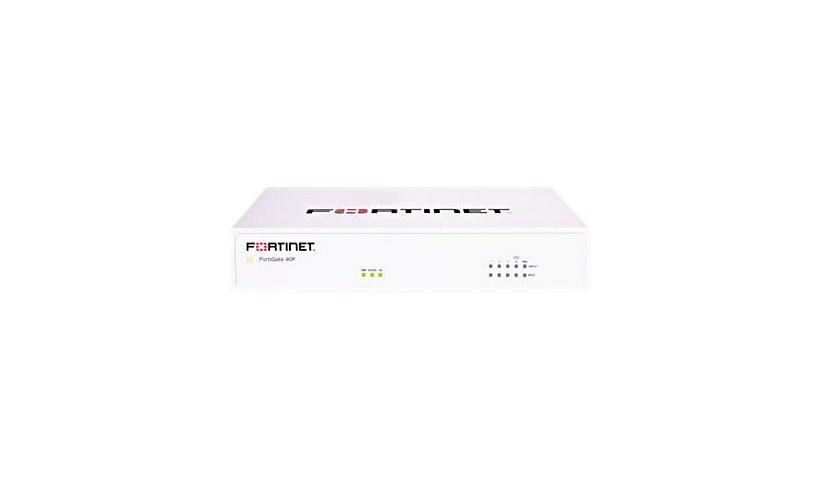

This FortiGate 40F bundle comes with 3 years of 24x7 FortiCare support and FortiGuard Unified (UTM) Protection. The 40F is a fanless desktop firewall and SD-WAN appliance rated at 5 Gbps firewall (1518-byte UDP), 990 Mbps application control and 3.5 Gbps CAPWAP, with room for 700,000 concurrent sessions. It has one WAN/DMZ port, one FortiLink port, three Gigabit LAN ports, a console and USB 3.0.
Key Features
- 3 yr 24x7 FortiCare + UTM
- 5 Gbps firewall (listed)
- 700,000 concurrent sessions
- 1 WAN + 1 FortiLink + 3 LAN
- Fanless desktop
- About 16.6 W
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 40F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: IPSec
Encryption: SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 250, Concurrent sessions: 700000, Concurrent SSL VPN users: 200, Firewall policies: 5000, Gateway to gateway IPSec VPN Tunnels: 200, Latency: 4 µs, New sessions: 35000, Number of FortiAP devices: 10, Number of FortiClient devices: 200, Number of FortiSwitches: 8, Number of FortiToken devices: 500, SSL inspection concurrent sessions: 55000, Virtual domains: 10
Network Device: Application control (HTTP 64K): 990 Mbps, CAPWAP throughput: 3.5 Gbps, Firewall throughput (1518-byte UDP): 5 Gbps, Firewall throughput (512-byte UDP): 5 Gbps, Firewall throughput (64-byte UDP): 5 Gbps, Firewall throughput: 7.5 Mpps, IPS throughput: 1 Gbps, NGFW throughput: 800 Mbps, SSL inspection throughput: 310 Mbps, SSL inspection throughput: 320 connections per second, Threat protection throughput: 600 Mbps, VPN throughput (512-bit IPSec): 4.4 Gbps, VPN throughput (SSL): 490 Mbps
Operating System Edition: FortiOS
Features: Fanless, Firewall protection, FortiLink Mode, Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), Web threat protection
Bundled Services: 3 years 24x7 FortiCare and FortiGuard Unified (UTM) Protection
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45 (WAN / DMZ), 1 x console - RJ-45, 1 x FortiLink - RJ-45, 1 x USB 3.0 - Type A, 3 x 1000Base-T - RJ-45
Power
Device Type: External power adapter
Frequency: 50 - 60 hertz
Power Consumption Operational: 16.6 watt
Power Supplies Installed: 1
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SOC4
Processors Installed: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Desktop
Dimensions and Weight
Height: 1.4 inch
Width: 8.5 inch
Depth: 5.5 inch
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
