Product Information

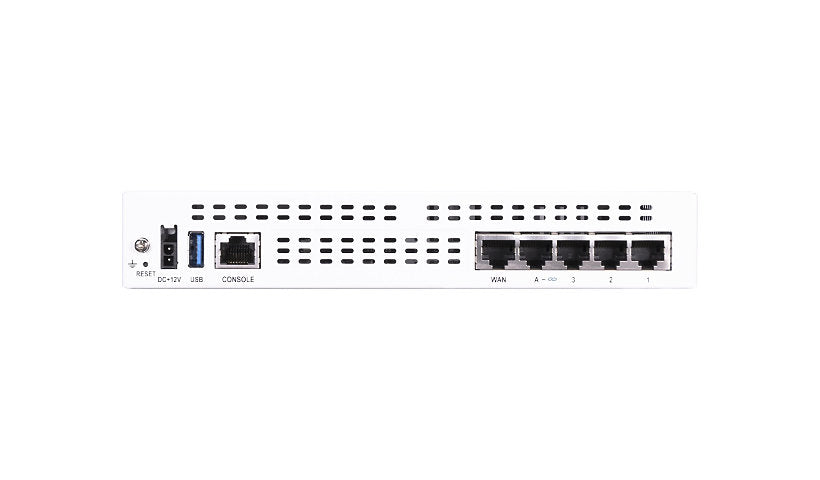

The Fortinet FortiGate 40F is a small fanless desktop firewall and SD-WAN appliance for branch offices and small sites. It is rated at 5 Gbps firewall (1518-byte UDP), 990 Mbps application control and 3.5 Gbps CAPWAP, with room for 700,000 concurrent sessions, 5,000 policies and 250 client to gateway IPsec tunnels. It has one WAN/DMZ port, one FortiLink port and three Gigabit LAN ports, an RJ-45 console and USB 3.0, and draws about 16.6 W.
Key Features
- 5 Gbps firewall (1518-byte UDP)
- 700,000 concurrent sessions
- 1 WAN + 1 FortiLink + 3 LAN
- 200 SSL VPN users
- Fanless desktop
- About 16.6 W
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 40F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: IPSec
Encryption: SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 250, Concurrent sessions: 700000, Concurrent SSL VPN users: 200, Firewall policies: 5000, Gateway to gateway IPSec VPN Tunnels: 200, Latency: 4 µs, New sessions: 35000, Number of FortiAP devices: 10, Number of FortiClient devices: 200, Number of FortiSwitches: 8, Number of FortiToken devices: 500, SSL inspection concurrent sessions: 55000, Virtual domains: 10
Network Device: Application control (HTTP 64K): 990 Mbps, CAPWAP throughput: 3.5 Gbps, Firewall throughput (1518-byte UDP): 5 Gbps, Firewall throughput (512-byte UDP): 5 Gbps, Firewall throughput (64-byte UDP): 5 Gbps, Firewall throughput: 7.5 Mpps, IPS throughput: 1 Gbps, NGFW throughput: 800 Mbps, SSL inspection throughput: 310 Mbps, SSL inspection throughput: 320 connections per second, Threat protection throughput: 600 Mbps, VPN throughput (512-bit IPSec): 4.4 Gbps, VPN throughput (SSL): 490 Mbps
Operating System Edition: FortiOS
Features: Fanless, Firewall protection, FortiLink Mode, Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), Web threat protection
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45 (WAN / DMZ), 1 x console - RJ-45, 1 x FortiLink - RJ-45, 1 x USB 3.0 - Type A, 3 x 1000Base-T - RJ-45
Power
Device Type: External power adapter
Frequency: 50 - 60 hertz
Power Consumption Operational: 16.6 watt
Power Supplies Installed: 1
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SOC4
Processors Installed: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Desktop
Dimensions and Weight
Height: 1.4 inch
Width: 8.5 inch
Depth: 5.5 inch
Certifications and Listing
Compliant Standards: C-Tick, CB, cUL, FCC Part 15 Class B, UL, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
