Product Information

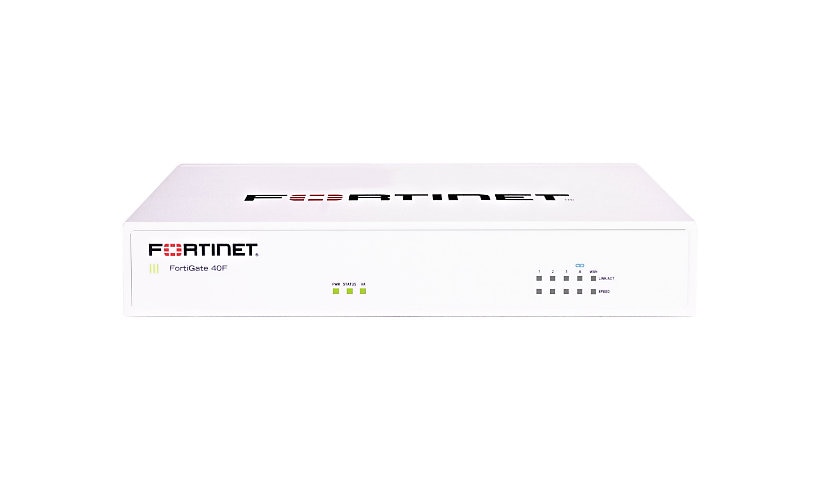

This is the TAA compliant version of the Fortinet FortiGate 40F, for buyers that need TAA sourcing such as US government agencies. The 40F is a fanless desktop firewall and SD-WAN appliance rated at 5 Gbps firewall (1518-byte UDP), 990 Mbps application control and 3.5 Gbps CAPWAP, with room for 700,000 concurrent sessions. It has one WAN/DMZ port, one FortiLink port, three Gigabit LAN ports, a console and USB 3.0. This is the hardware without a service bundle.
Key Features
- TAA compliant version
- 5 Gbps firewall (1518-byte UDP)
- 700,000 concurrent sessions
- 1 WAN + 1 FortiLink + 3 LAN
- Fanless desktop
- Hardware only
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 40F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: HTTP, HTTPs, IPSec, IPv4, IPv6, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 250, Concurrent SSL VPN tunnels: 200, Concurrent SSL VPN users: 200, Concurrent TCP sessions: 700000, Firewall policies: 5000, Gateway to gateway IPSec VPN Tunnels: 200, Maximum virtual domains: 10, New TCP sessions per second: 35000, Number of FortiAP devices (tunnel mode): 8, Number of FortiAP devices: 16, Number of FortiSwitches: 8, Number of FortiToken devices: 500, Number of registered FortiClients: 20000, SSL inspection concurrent sessions: 55000, SSL inspection CPS: 320, Virtual domains: 10
Network Device: Application control throughput: 990 Mbps, CAPWAP throughput:, Firewall latency (64-byte UDP): 2.97 µs, Firewall throughput (1518-byte UDP): 5 Gbps, Firewall throughput (512-byte UDP): 5 Gbps, Firewall throughput (64-byte UDP): 5 Gbps, Firewall throughput: 7.5 Mpps, IPS throughput: 1 Gbps, NGFW throughput: 800 Mbps, SSL inspection throughput: 310 Mbps, Threat protection throughput: 600 Mbps, VPN throughput (512-bit IPSec): 4.4 Gbps, VPN throughput (SSL): 490 Mbps
Operating System Edition: FortiOS
Features: CAPWAP support, Fanless, FortiLink Mode, SD-WAN support
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45 (WAN), 1 x console - RJ-45, 1 x FortiLink - RJ-45, 1 x USB 3.0 - Type A, 3 x 1000Base-T - RJ-45
Power
Device Type: External power adapter
Frequency: 50 - 60 hertz
Power Consumption Operational: 13.4 watt
Power Supplies Installed: 1
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SOC4
Processors Installed: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Desktop
Status Indicators: Status
Dimensions and Weight
Height: 1.5 inch
Width: 8.5 inch
Depth: 6.3 inch
Weight: 2.2 lbs
Certifications and Listing
Compliant Standards: BSMI, CB, cUL, FCC, ICES, ICSA Antivirus, ICSA Firewall certified, ICSA IPS, ICSA IPSec certified, ICSA SSL-VPN, RCM, UL, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Service Activation: No
