Product Information

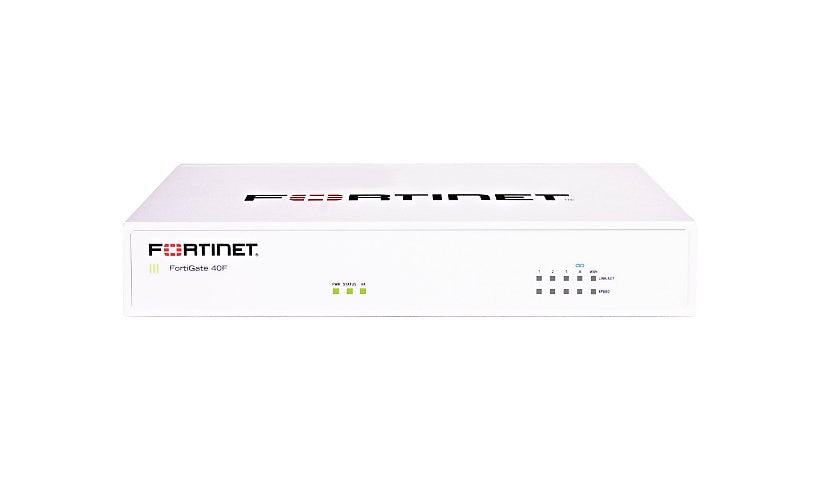

This is the TAA compliant FortiGate 40F with 3 years of 24x7 FortiCare support and 3 years of FortiGuard Unified Threat Protection. The 40F is a fanless desktop firewall and SD-WAN appliance rated at 5 Gbps firewall (1518-byte UDP), 990 Mbps application control and 3.5 Gbps CAPWAP, with room for 700,000 concurrent sessions. It has one WAN/DMZ port, one FortiLink port, three Gigabit LAN ports, a console and USB 3.0.
Key Features
- TAA compliant
- 3 yr 24x7 FortiCare + UTP
- 5 Gbps firewall (listed)
- 700,000 concurrent sessions
- 1 WAN + 1 FortiLink + 3 LAN
- Fanless desktop
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 40F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: HTTP, HTTPs, IPSec, IPv4, IPv6, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 250, Concurrent SSL VPN tunnels: 200, Concurrent SSL VPN users: 200, Concurrent TCP sessions: 700000, Firewall policies: 5000, Gateway to gateway IPSec VPN Tunnels: 200, Maximum virtual domains: 10, New TCP sessions per second: 35000, Number of FortiAP devices (tunnel mode): 8, Number of FortiAP devices: 16, Number of FortiSwitches: 8, Number of FortiToken devices: 500, Number of registered FortiClients: 20000, SSL inspection concurrent sessions: 55000, SSL inspection CPS: 320, Virtual domains: 10
Network Device: Application control throughput: 990 Mbps, CAPWAP throughput:, Firewall latency (64-byte UDP): 2.97 µs, Firewall throughput (1518-byte UDP): 5 Gbps, Firewall throughput (512-byte UDP): 5 Gbps, Firewall throughput (64-byte UDP): 5 Gbps, Firewall throughput: 7.5 Mpps, IPS throughput: 1 Gbps, NGFW throughput: 800 Mbps, SSL inspection throughput: 310 Mbps, Threat protection throughput: 600 Mbps, VPN throughput (512-bit IPSec): 4.4 Gbps, VPN throughput (SSL): 490 Mbps
Operating System Edition: FortiOS
Features: CAPWAP support, Fanless, FortiLink Mode, SD-WAN support
Bundled Services: 3 years 24x7 FortiCare Support + 3 years FortiGuard Unified Threat Protection (UTP)
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45 (WAN), 1 x console - RJ-45, 1 x FortiLink - RJ-45, 1 x USB 3.0 - Type A, 3 x 1000Base-T - RJ-45
Power
Device Type: External power adapter
Frequency: 50/60 hertz
Power Consumption Operational: 13.4 watt
Power Supplies Installed: 1
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SOC4
Processors Installed: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Desktop
Status Indicators: Status
Dimensions and Weight
Height: 1.5 inch
Width: 8.5 inch
Depth: 6.3 inch
Weight: 2.2 lbs
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
