Product Information

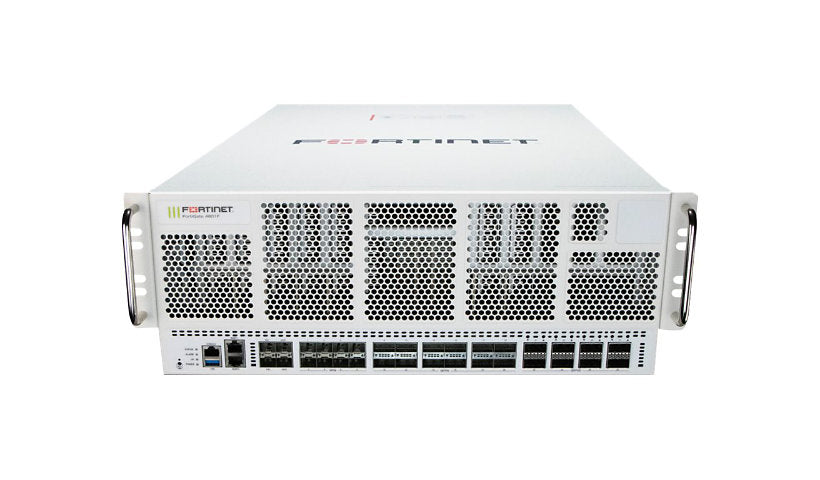

The Fortinet FortiGate 4800F is a 4U hyperscale data center firewall rated at 3.1 Tbps firewall (1518-byte UDP), 180 Gbps application control and 87 Gbps IPS, with up to 1.8 billion concurrent TCP sessions, 25 million new sessions per second and up to 500 virtual domains. It has eight 200/400G ports, twelve 40/100/200G ports, eight 10/25/50G ports, four 10/25/50G HA ports and two 1/10G RJ-45 management ports, with four power supplies and about 1,918 W draw. This is the hardware without a service bundle.
Key Features
- 3.1 Tbps firewall (1518-byte UDP)
- 87 Gbps IPS
- 1.8B concurrent sessions
- 25M new sessions per second
- 8 x 400G + 12 x 200G ports
- 4U, 4 power supplies
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 4800F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 100 Gigabit Ethernet, 200 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 400 Gigabit Ethernet, 50 Gigabit Ethernet
Network Standard: HTTP, HTTPs, IPSec, IPv4, IPv6, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 200000, Concurrent SSL VPN users: 30000, Concurrent TCP sessions: 1800000000, Firewall policies: 200000, Gateway to gateway IPSec VPN Tunnels: 40000, Maximum virtual domains: 500, New TCP sessions per second: 25000000, Number of FortiAP devices (tunnel): 4096, Number of FortiAP devices: 8192, Number of FortiSwitches: 300, Number of FortiToken devices: 20000, SSL inspection concurrent sessions: 3000000, SSL inspection CPS: 60000, Virtual domains: 10
Network Device: Application control throughput: 180 Gbps, CAPWAP throughput: 112 Gbps, Firewall latency (64-byte UDP): 3.6 µs, Firewall throughput (1518-byte UDP): 3.1 Tbps, Firewall throughput (512-byte UDP): 3.1 Tbps, Firewall throughput (64-byte UDP): 0.93 Tbps, Firewall throughput: 1396 Mpps, IPS throughput (enterprise traffic mix): 87 Gbps, IPv6 firewall throughput (1518-byte UDP): 3.1 Tbps, IPv6 firewall throughput (512-byte UDP): 3.1 Tbps, IPv6 firewall throughput (86-byte UDP): 0.93 Tbps, NGFW throughput (enterprise traffic mix): 77 Gbps, SSL inspection throughput: 63 Gbps, Threat protection throughput (enterprise traffic mix): 75 Gbps, VPN throughput (512-bit IPSec): 800 Gbps, VPN throughput (SSL): 18 Gbps
Operating System Edition: FortiOS
Features: CAPWAP support, SSL inspection, VPN support
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x USB, 12 x 40Gb Ethernet/100Gb Ethernet/200Gb Ethernet - QSFP56/QSFP28/SFP28, 2 x 1 Gigabit Ethernet/10Gb Ethernet (management) - RJ-45, 4 x 10Gb Ethernet/25Gb Ethernet/50Gb Ethernet (High Availability) - SFP28 / SFP56, 8 x 10Gb Ethernet/25Gb Ethernet/50Gb Ethernet - SFP28 / SFP56, 8 x 200Gb Ethernet/400Gb Ethernet - QSFP56/QSFP28/SFP28
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Power Consumption Operational: 1918.2 watt
Power Supplies Installed: 4
Power Supplies Supported: 4
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
80 PLUS Certification: 80 PLUS
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC CP9/NP7
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 20 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 4
Airflow Direction: Front to back airflow
Status Indicators: Alarm, HA, Power, Status
Dimensions and Weight
Height: 6.9 inch
Width: 17.1 inch
Depth: 26.1 inch
Weight: 90.83 lbs
Certifications and Listing
Compliant Standards: CB, FCC Part 15 A, IPv6, RCM, UL/cUL, USGv6, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
