Product Information

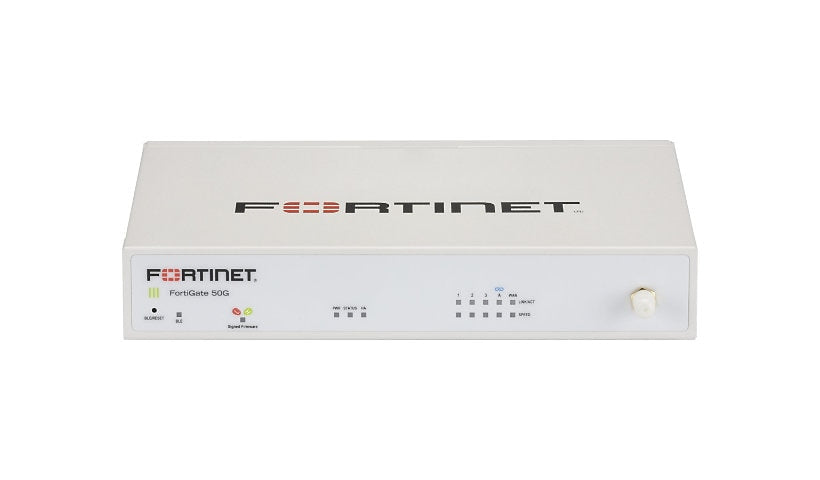

The Fortinet FortiGate 50G is a compact desktop firewall listed at 5 Gbps firewall (1518-byte UDP), 2.8 Gbps application control and 3.8 Gbps CAPWAP, with up to 720,000 TCP sessions, 2,000 firewall policies and 250 client to gateway IPsec tunnels. Ports are one Gigabit WAN, one FortiLink and three Gigabit LAN RJ-45 ports, plus a console, USB 3.0 and Bluetooth LE. Power draw is about 8.3 W. The description quotes 200 policies and 500 client tunnels, the spec values are used here.
Key Features
- 5 Gbps firewall (1518-byte UDP)
- 720,000 TCP sessions
- 1 WAN + 1 FortiLink + 3 LAN
- Bluetooth LE setup
- About 8.3 W
- Desktop, cloud managed
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 50G
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Bluetooth LE, Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: DNS, IPv6, TCP/IP, UDP
Remote Management: DNS, IPv6, TCP/IP, UDP
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 250, Concurrent TCP sessions: 720000, Firewall policies: 2000, Gateway to gateway IPSec VPN Tunnels: 200, Maximum number of FortiTokens: 500, Maximum virtual domains: 5, New TCP sessions per second: 85000, Number of FortiAP devices (tunnel mode): 8, Number of FortiAP devices: 16, Number of FortiSwitches: 8, SSL inspection concurrent sessions: 74000, SSL inspection CPS: 699, Virtual domains: 5
Network Device: Application control throughput (HTTP 64K): 2.8 Gbps, CAPWAP throughput: 3.8 Gbps, Firewall latency (64-byte UDP): 2.42 μs, Firewall throughput (1518-byte UDP): 5 Gbps, Firewall throughput (512-byte UDP): 5 Gbps, Firewall throughput (64-byte UDP): 4 Gbps, Firewall throughput: 6 Mpps, IPS throughput (enterprise traffic mix): 2.25 Gbps, NGFW throughput (enterprise traffic mix): 1.25 Gbps, SSL inspection throughput: 1.3 Gbps, Threat protection throughput (enterprise traffic mix): 1.1 Gbps, VPN throughput (512-bit IPSec): 4.5 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE)
Internet of Things (IoT) Compatible: Yes
Operating System Edition: FortiOS
Features: Advanced sandbox detection, AI/ML powered, Anti-malware protection, Built-in ASIC, Data Loss Prevention (DLP), DDoS Protection, DNS filtering, Fanless, Firewall protection, High Availability, Intrusion Prevention System (IPS), NGFW appliance, Reset button, SD-WAN support, Self-healing network, SSL inspection, Trusted Platform Module (TPM), URL filtering, VPN support, Zero Trust Network Access (ZTNA)
Connectivity
Ports: 5
Interface Provided: 1 x 1000Base-T - RJ-45 (WAN), 1 x 1000Base-T (FortiLink) - RJ-45, 1 x console - RJ-45, 1 x USB 3.0 - Type A, 3 x 1000Base-T - RJ-45
Power
Device Type: External power adapter
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 8.3 watt
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SP5
Processors Installed: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Desktop
Status Indicators: Firmware, HA, Link/activity/speed, Power, Status
Dimensions and Weight
Height: 1.6 inch
Width: 8.5 inch
Depth: 6.3 inch
Weight: 2.2 lbs
Certifications and Listing
Compliant Standards: CB, cUL, FCC, ISED, UL, USGv6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
