Product Information

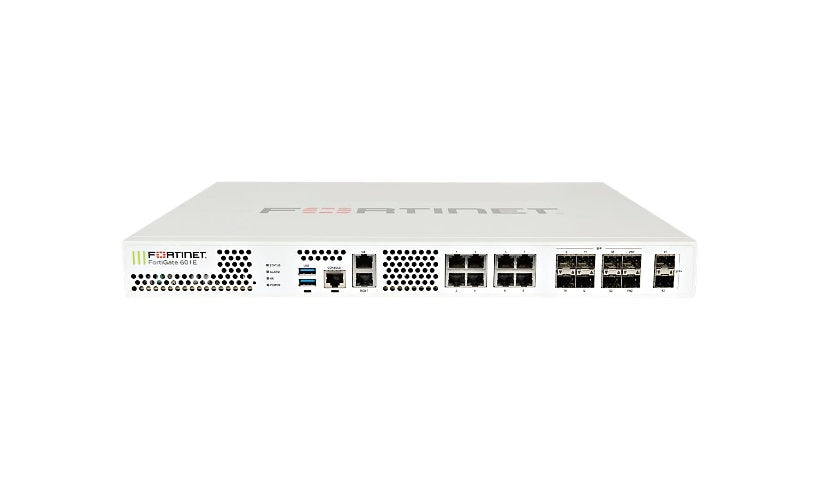

This FortiGate 601E UTM bundle includes FortiCare 24x7 Comprehensive support and FortiGuard services for 5 years. The 601E is a 1U firewall with 240 GB of storage for campus and enterprise branch sites, rated at 36 Gbps firewall (1518-byte UDP), 15 Gbps application control and 10 Gbps IPS, with up to 8 million TCP sessions and 450,000 new sessions per second. It has eight Gigabit RJ-45 ports, eight SFP ports, two 10G SFP+ ports, HA and management ports and two USB 3.0 ports.
Key Features
- 5 yr 24x7 FortiCare + FortiGuard
- 36 Gbps firewall (1518-byte UDP)
- 10 Gbps IPS
- 8M TCP sessions
- 8 x 1G + 8 x SFP + 2 x SFP+
- 1U, 240 GB storage
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 601E
Product Type: Security appliance
Kit: UTM Bundle
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Gigabit Ethernet
Network Standard: IPSec, SCTP, TCP/IP, UDP/IP
Remote Management: HTTP
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.2
Capacity: Client to gateway IPSec VPN tunnels: 50000, Concurrent SSL VPN users: 5000, Concurrent TCP sessions: 8000000, Firewall policies: 10000, Gateway to gateway IPSec VPN Tunnels: 2000, Maximum number of registered endpoints: 2000, Maximum number of switches: 48, New TCP sessions per second: 450000, Number of FortiAP devices: 512, Number of FortiToken devices: 1000, Virtual domains: 10
Network Device: Application control (AVC) throughput: 15 Gbps, CAPWAP throughput: 18 Gbps, Firewall latency (64-byte UDP): 2 µs, Firewall throughput (1518-byte UDP): 36 Gbps, Firewall throughput (512-byte UDP): 36 Gbps, Firewall throughput (64-byte UDP): 27 Gbps, Firewall throughput: 40.5 Mpps, IPS throughput (enterprise traffic mix): 10 Gbps, IPv6 firewall throughput (1518-byte UDP): 36 Gbps, IPv6 firewall throughput (512-byte UDP): 36 Gbps, IPv6 firewall throughput (64-byte UDP): 27 Gbps, NGFW throughput: 9.5 Gbps, SSL inspection throughput: 5500 connections per second, SSL inspection throughput: 8 Gbps, SSL inspection throughput: 800000 concurrent sessions per second, Threat protection throughput: 7 Gbps, VPN throughput (512-bit IPSec): 20 Gbps, VPN throughput (SSL): 7 Gbps
Operating System Edition: FortiOS
Features: Anti-malware protection, Anti-virus protection, Application filtering, CAPWAP support, Checksum offload support, Content filtering, Firewall protection, High Availability, Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), IPv4 support, IPv6 support, Manageable, Routing, Switching, Traffic shaping, VPN support, Web threat protection
Bundled Services: 5 years FortiCare 24X7 Comprehensive Support + 5 years FortiGuard
Connectivity
Interface Provided: 1 x 1000Base-T (HA) - RJ-45, 1 x 1000Base-T (management) - RJ-45, 1 x console - RJ-45, 2 x 10Gb Ethernet - SFP+, 2 x USB 3.0 - Type A, 8 x 1000Base-T - RJ-45, 8 x 1000Base-X - SFP (mini-GBIC)
Power
Device Type: Internal power supply
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC CP9/NP6
Hard Drive Capacity: 240 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Status Indicators: Alarm, HA, Power, Status
Installed Quantity: 2
Dimensions and Weight
Height: 1.7 inch
Width: 17 inch
Depth: 15 inch
Weight: 16.53 lbs
Included Items
Included Accessories: 2 SX SFP transceivers
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
