Product Information

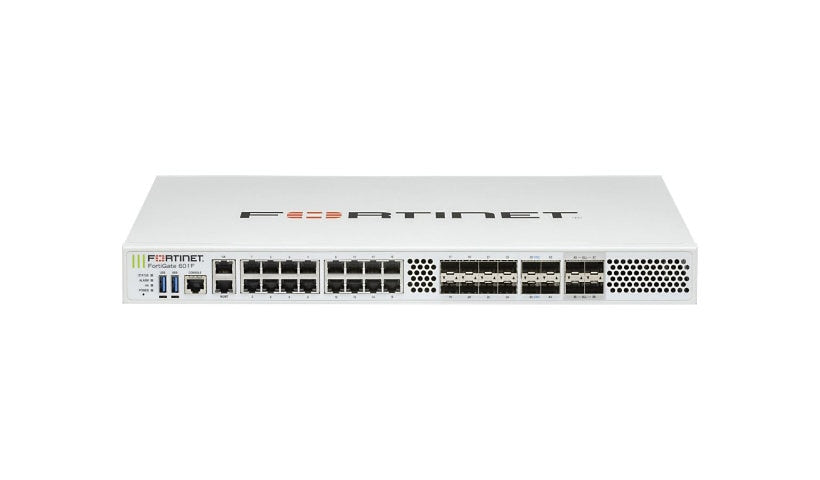

The Fortinet FortiGate 601F is the 600F model with onboard storage, a 1U firewall with NP7 and CP9 acceleration, rated at 139 Gbps firewall (1518-byte UDP), 32 Gbps application control, 14 Gbps IPS and 11.5 Gbps NGFW, with up to 8 million TCP sessions and 550,000 new sessions per second. It has four 25G SFP28 ports, four 10G SFP+ ports, eight SFP ports, Gigabit RJ-45 ports, HA and management ports and redundant power, drawing about 174 W. The spec lists a 240 GB SSD and 16 RJ-45 ports, while the description says 480 GB and 18 ports, please confirm.
Key Features
- 139 Gbps firewall (1518-byte UDP)
- 11.5 Gbps NGFW
- 8M TCP sessions
- 4 x 25G SFP28 + 4 x SFP+
- 8 x SFP + Gigabit RJ-45
- 1U, redundant power
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 601F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 25 Gigabit Ethernet, Gigabit Ethernet
Network Standard: HTTP, HTTPs, IPSec, IPv4, IPv6, SCTP, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 50000, Concurrent SSL VPN users: 10000, Concurrent TCP sessions: 8000000, Firewall policies: 10000, Gateway to gateway IPSec VPN Tunnels: 2000, Maximum virtual domains: 10, New TCP sessions per second: 550000, Number of FortiAP devices (tunnel): 512, Number of FortiAP devices: 1024, Number of FortiSwitches: 96, Number of FortiToken devices: 5000, SSL inspection concurrent sessions: 840000, SSL inspection CPS: 7500, Virtual domains: 10
Network Device: Application control throughput: 32 Gbps, Firewall latency (64-byte UDP): 4.12µs, Firewall throughput (1518-byte UDP): 139Gbps, Firewall throughput (512-byte UDP): 137.5Gbps, Firewall throughput (64-byte UDP): 70 Gbps, Firewall throughput: 105 Mpps, IPS throughput (enterprise traffic mix): 14 Gbps, IPv6 firewall throughput (1518-byte UDP): 139Gbps, IPv6 firewall throughput (512-byte UDP): 137.5Gbps, IPv6 firewall throughput (64-byte UDP): 70 Gbps, NGFW throughput: 11.5 Gbps, SSL inspection throughput: 9 Gbps, Threat protection throughput: 10.5 Gbps, VPN throughput (512-bit IPSec): 55 Gbps, VPN throughput (SSL): 4.3 Gbps
Features: Anti-malware protection, Anti-virus protection, CAPWAP support, Checksum offload support, Clustering technology, Firewall protection, High Availability, Intrusion Prevention System (IPS), IP Security (IPSec) support, Manageable, SD-WAN support, Traffic shaping, Trusted Platform Module (TPM), URL filtering, VPN support, Zero-Touch Deployment
Connectivity
Interface Provided: 1 x 1000Base-T (HA) - RJ-45, 1 x 1000Base-T (management) - RJ-45, 1 x console - RJ-45, 16 x 1000Base-T - RJ-45, 2 x USB - Type A, 4 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP/SFP+/SFP28, 4 x 10Gb Ethernet - SFP+, 8 x 1000Base-X - SFP (mini-GBIC)
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 174 watt
Power Supplies Supported: 2
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC CP9/NP7
Hard Drive Capacity: 240 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front and side to back
Status Indicators: Alarm, HA, Power, Status
Installed Quantity: 2
Dimensions and Weight
Height: 1.7 inch
Width: 17 inch
Depth: 15 inch
Weight: 16.2 lbs
Included Items
Included Accessories: 2 SX SFP transceivers
Warranty
Service Activation: No
