Product Information

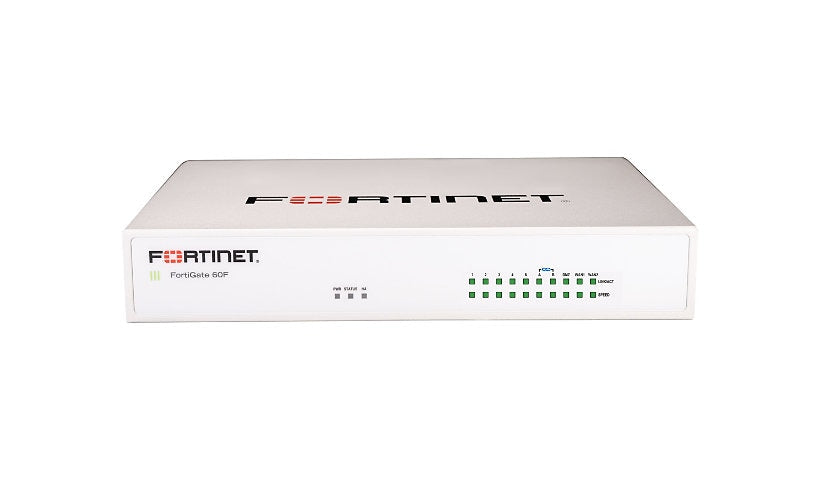

This FortiGate 60F bundle comes with 3 years of FortiCare Premium support and 3 years of FortiGuard Enterprise Protection. The 60F is a fanless desktop firewall and secure SD-WAN appliance rated at 10 Gbps firewall (1518-byte UDP) and 1.8 Gbps application control, with up to 700,000 concurrent sessions and 200 IPsec VPN tunnels. It has ten Gigabit RJ-45 ports including WAN and DMZ, a console and USB 3.0.
Key Features
- 3 yr Premium + Enterprise Protection
- 10 Gbps firewall (listed)
- 700,000 concurrent sessions
- 10 x 1G RJ-45
- Fanless desktop
- Secure SD-WAN
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 60F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: HTTP, HTTPs, IPSec, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 500, Concurrent SSL VPN users: 200, Concurrent TCP sessions: 700000, Firewall policies: 5000, Gateway to gateway IPSec VPN Tunnels: 200, Maximum virtual domains: 10, New TCP sessions per second: 35000, Number of FortiAP devices (tunnel mode): 32, Number of FortiAP devices: 64, Number of FortiSwitches: 24, Number of FortiToken devices: 500, SSL inspection concurrent sessions: 55000, SSL inspection CPS: 400, Virtual domains: 10
Network Device: Application control throughput: 1.8 Gbps, CAPWAP throughput: 8 Gbps, Firewall latency (64-byte UDP): 3.3 µs, Firewall throughput (1518-byte UDP): 10 Gbps, Firewall throughput (512-byte UDP): 10 Gbps, Firewall throughput (64-byte UDP): 6 Gbps, Firewall throughput: 9 Mpps, IPS throughput (enterprise traffic mix): 1.4 Gbps, NGFW throughput (enterprise traffic mix): 1 Gbps, SSL inspection throughput: 630 Mbps, Threat protection throughput (enterprise traffic mix): 700 Mbps, VPN throughput (512-bit IPSec): 6.5 Gbps, VPN throughput (SSL): 900 Mbps
Operating System Edition: FortiOS
Features: 3G/4G USB Dongle Support, Fanless, SD-WAN support, SSL inspection
Bundled Services: 3 years FortiCare Premium Support + 3 years FortiGuard Enterprise Protection
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45 (DMZ), 1 x console - RJ-45, 1 x USB 3.0, 2 x 1000Base-T - RJ-45 (WAN), 2 x 1000Base-T (FortiLink) - RJ-45, 5 x 1000Base-T - RJ-45
Power
Device Type: External power adapter
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 17.2 watt
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SOC4
Processors Installed: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Desktop
Status Indicators: DMZ, HA, Link/activity/speed, Power, Status, WAN
Dimensions and Weight
Height: 1.5 inch
Width: 8.5 inch
Depth: 6.3 inch
Weight: 2.23 lbs
Warranty
Service Activation: No
