Product Information

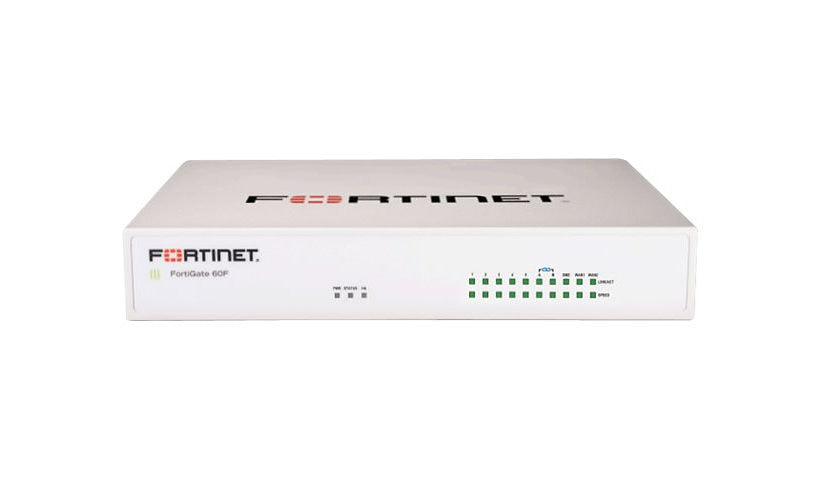

This FortiGate 60F bundle comes with 3 years of 24x7 FortiCare support and FortiGuard Unified (UTM) Protection. The 60F is a fanless desktop firewall and secure SD-WAN appliance rated at 10 Gbps firewall (1518-byte UDP) and 1.8 Gbps application control, with up to 700,000 concurrent sessions and 200 IPsec VPN tunnels. It has ten Gigabit RJ-45 ports including WAN and DMZ, a console and USB 3.0.
Key Features
- 3 yr 24x7 FortiCare + UTM
- 10 Gbps firewall (listed)
- 700,000 concurrent sessions
- 10 x 1G RJ-45
- Fanless desktop
- Secure SD-WAN
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 60F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: IPSec
Encryption: SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 500, Concurrent sessions: 700000, Concurrent SSL VPN users: 200, Firewall policies: 5000, Gateway to gateway IPSec VPN Tunnels: 200, Latency: 4 µs, New sessions: 35000, Number of FortiSwitches: 16, Number of FortiToken devices: 500, Number of registered FortiClients: 200, SSL inspection concurrent sessions: 55000, Virtual domains: 10
Network Device: Application control (AVC) throughput: 1.8 Gbps, Firewall throughput (1518-byte UDP): 10 Gbps, Firewall throughput (512-byte UDP): 10 Gbps, Firewall throughput (64-byte UDP): 6 Gbps, Firewall throughput: 9 Mpps, Firewall throughput: 9000000 packets per second, IPS throughput: 1.4 Gbps, NGFW throughput: 1 Gbps, SSL inspection throughput: 750 Mbps, Threat protection throughput: 700 Mbps, VPN throughput (512-bit IPSec): 6.5 Gbps, VPN throughput (SSL): 900 Mbps
Operating System Edition: FortiOS
Features: Antivirus analysis, Fanless, Firewall protection, Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), Web threat protection
Bundled Services: 3 years 24x7 FortiCare and FortiGuard Unified (UTM) Protection
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x USB 3.0 - Type A, 2 x 1000Base-T - RJ-45, 2 x 1000Base-T - RJ-45 (WAN / DMZ), 5 x 1000Base-T - RJ-45
Power
Device Type: External power adapter
Frequency: 50 - 60 hertz
Power Consumption Operational: 18.5 watt
Power Supplies Installed: 1
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SOC4
Processors Installed: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Desktop
Dimensions and Weight
Height: 1.5 inch
Width: 8.5 inch
Depth: 6.3 inch
Weight: 31.74 ounce
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
