Product Information

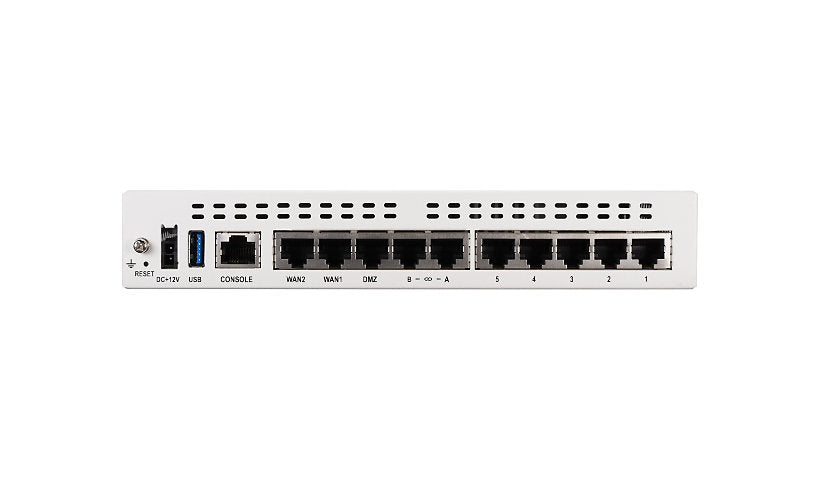

The Fortinet FortiGate 60F is a fanless desktop next generation firewall and secure SD-WAN appliance for branch offices and mid-sized sites. Its system on a chip design is listed at 10 Gbps firewall (1518-byte UDP) and 1.8 Gbps application control, with up to 700,000 concurrent sessions, 35,000 new sessions per second and 200 IPsec VPN tunnels. It has ten Gigabit RJ-45 ports including WAN and DMZ, an RJ-45 console, USB 3.0 and draws about 18.5 W.
Key Features
- 10 Gbps firewall (1518-byte UDP)
- 700,000 concurrent sessions
- 10 x 1G RJ-45 incl. WAN/DMZ
- 200 IPsec VPN tunnels
- Fanless desktop design
- About 18.5 W
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 60F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: IPSec
Encryption: SSL, TLS 1.3
Capacity: Concurrent sessions: 700000, Firewall policies: 5000, IPSec VPN tunnels: 200, Latency: 4 µs, New sessions: 35000, Number of FortiSwitches: 16, Number of FortiToken devices: 500, Virtual domains: 10
Network Device: Application control (AVC) throughput: 1.8 Gbps, Firewall throughput (1518-byte UDP): 10 Gbps, Firewall throughput (512-byte UDP): 10 Gbps, Firewall throughput (64-byte UDP): 6 Gbps, Firewall throughput: 10 Gbps, Firewall throughput: 9 Mpps, IPS throughput: 1.4 Gbps, NGFW throughput: 1 Gbps, SSL inspection throughput: 900 Mbps, Threat protection throughput: 700 Mbps, VPN throughput (512-bit IPSec): 6.5 Gbps
Operating System Edition: FortiOS
Features: Antivirus analysis, Fanless, Firewall protection, Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), Web threat protection
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x USB 3.0 - Type A, 2 x 1000Base-T - RJ-45, 2 x 1000Base-T - RJ-45 (WAN / DMZ), 5 x 1000Base-T - RJ-45
Power
Device Type: External power adapter
Frequency: 50 - 60 hertz
Power Consumption Operational: 18.5 watt
Power Supplies Installed: 1
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SOC4
Processors Installed: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Desktop
Dimensions and Weight
Height: 1.5 inch
Width: 8.5 inch
Depth: 6.3 inch
Weight: 31.74 ounce
Certifications and Listing
Compliant Standards: C-Tick, CB, cUL, FCC Part 15 Class B, UL, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
