Product Information

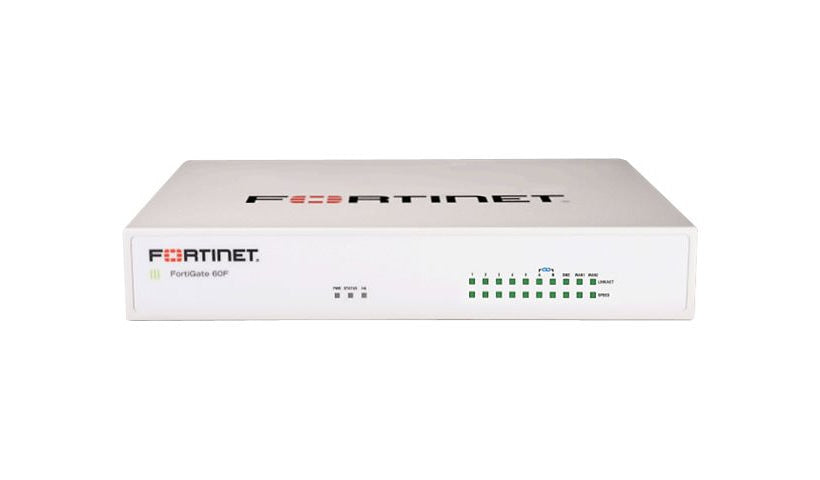

This is the TAA compliant FortiGate 60F with 1 year of 24x7 FortiCare support and FortiGuard Unified (UTM) Protection. The 60F is a fanless desktop firewall and secure SD-WAN appliance rated at 10 Gbps firewall (1518-byte UDP) and 1.8 Gbps application control, with up to 700,000 concurrent sessions and 200 IPsec VPN tunnels. It has ten Gigabit RJ-45 ports including WAN and DMZ, a console and USB 3.0.
Key Features
- TAA compliant
- 1 yr 24x7 FortiCare + UTM
- 10 Gbps firewall (listed)
- 700,000 concurrent sessions
- 10 x 1G RJ-45
- Fanless desktop
Product Information
Brand: Fortinet
Manufacturer: Fortinet Federal
Product Line: Fortinet FortiGate
Model: 60F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: HTTPs, IPSec
Remote Management: HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 500, Concurrent SSL VPN users: 200, Concurrent TCP sessions: 700000, Firewall policies: 5000, Gateway to gateway IPSec VPN Tunnels: 200, New TCP sessions per second: 35000, Number of FortiAP devices: 30, Number of FortiSwitches: 16, Number of FortiToken devices: 500, Number of registered FortiClients: 200, SSL inspection concurrent sessions: 55000, Virtual domains: 10
Network Device: Application control (AVC) throughput: 1.8 Gbps, CAPWAP throughput: 8 Gbps, Firewall latency (64-byte UDP): 3.3 µs, Firewall throughput (1518-byte UDP): 10 Gbps, Firewall throughput (512-byte UDP): 10 Gbps, Firewall throughput (64-byte UDP): 6 Gbps, Firewall throughput: 10 Gbps, IPS throughput: 1.4 Gbps, NGFW throughput: 1 Gbps, SSL inspection throughput: 630 Mbps, Threat protection throughput: 700 Mbps, VPN throughput (512-bit IPSec): 6.5 Gbps, VPN throughput (SSL): 900 Mbps
Operating System Edition: FortiOS
Features: 3G/4G USB Dongle Support, Fanless, FortiLink Mode, SD-WAN support
Bundled Services: 1 year 24x7 FortiCare and FortiGuard Unified (UTM) Protection
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x USB 3.0 - Type A, 2 x 1000Base-T - RJ-45, 2 x 1000Base-T - RJ-45 (WAN / DMZ), 5 x 1000Base-T - RJ-45
Power
Device Type: External power adapter
Frequency: 50 - 60 hertz
Power Consumption Operational: 18.5 watt
Power Supplies Installed: 1
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SOC4
Processors Installed: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Desktop
Status Indicators: Link/activity
Dimensions and Weight
Height: 1.5 inch
Width: 8.5 inch
Depth: 6.3 inch
Weight: 31.74 ounce
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
