Product Information
The Fortinet FortiGate 61F is the 60F model with 128 GB of storage for local logs, a fanless desktop firewall rated at 10 Gbps firewall, 1.4 Gbps IPS, 1 Gbps NGFW and 6.5 Gbps IPsec VPN, with up to 700,000 TCP sessions and 500 client to gateway tunnels. It has two Gigabit WAN ports, a DMZ port, seven Gigabit LAN ports, a console and USB 3.0. This is the hardware without a service bundle.
Key Features
- 128 GB local storage
- 10 Gbps firewall
- 1 Gbps NGFW
- 700,000 TCP sessions
- 2 WAN + 1 DMZ + 7 LAN
- Fanless desktop
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 61F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: HTTPs, IPSec
Remote Management: HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL
Capacity: Client to gateway IPSec VPN tunnels: 500, Concurrent SSL VPN users: 200, Concurrent TCP sessions: 700000, Firewall policies: 5000, Gateway to gateway IPSec VPN Tunnels: 200, New TCP sessions per second: 35000, Number of FortiAP devices: 30, Number of FortiSwitches: 16, Number of FortiToken devices: 500, Number of registered FortiClients: 200, SSL inspection concurrent sessions: 55000, Virtual domains: 10
Network Device: Application control (AVC) throughput: 1.8 Gbps, CAPWAP throughput: 15 Gbps, Firewall latency (64-byte UDP): 4 µs, Firewall throughput (1518-byte UDP): 10 Gbps, Firewall throughput (512-byte UDP): 10 Gbps, Firewall throughput (64-byte UDP): 6 Gbps, Firewall throughput: 10 Gbps, IPS throughput: 1.4 Gbps, NGFW throughput: 1 Gbps, SSL inspection throughput: 750 Mbps, Threat protection throughput: 700 Mbps, VPN throughput (512-bit IPSec): 6.5 Gbps, VPN throughput (SSL): 900 Mbps
Features: 3G/4G USB Dongle Support, Fanless, FortiLink Mode, SD-WAN support
Connectivity

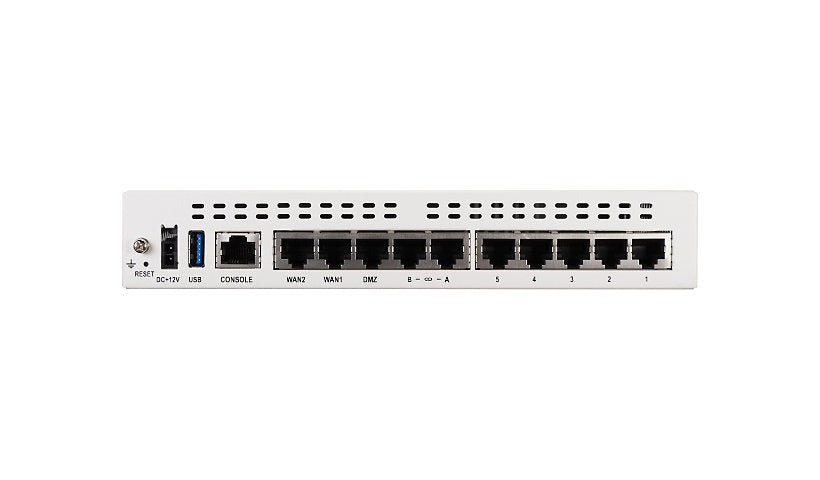

Interface Provided: 1 x 1000Base-T - RJ-45 (DMZ), 1 x console - RJ-45, 1 x USB 3.0 - Type A, 2 x 1000Base-T - RJ-45 (WAN), 7 x 1000Base-T - RJ-45
Power
Device Type: External power adapter
Frequency: 50/60 hertz
Power Consumption Operational: 18.7 watt
Memory and Processor
Hard Drive Capacity: 128 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Desktop
Installed Quantity: 1
Dimensions and Weight
Height: 1.5 inch
Width: 8.5 inch
Depth: 6.3 inch
Weight: 31.74 ounce
Certifications and Listing
Compliant Standards: C-Tick, CB, cUL, FCC Part 15 Class B, ICSA Antivirus, ICSA Firewall certified, ICSA IPSec certified, ICSA SSL-VPN, UL
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
