Product Information

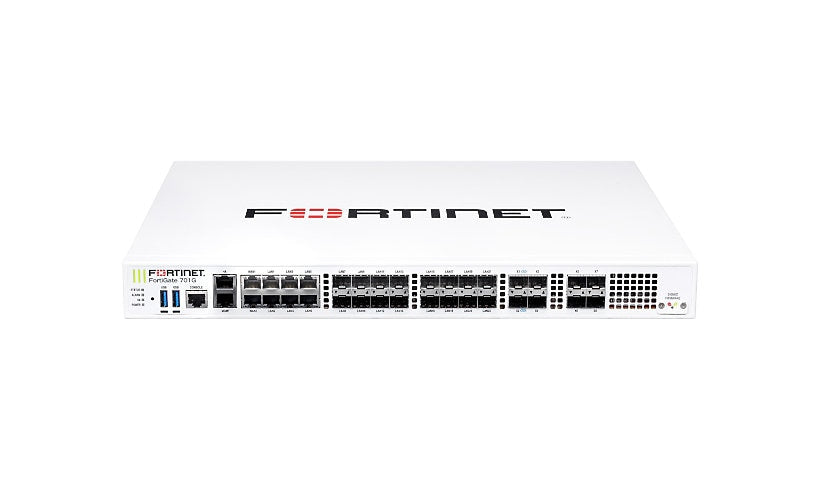

This FortiGate 701G bundle comes with 1 year of FortiCare Premium support and 1 year of FortiGuard Enterprise Protection. The 701G is a 1U firewall with a 480 GB SSD, rated at 164 Gbps firewall (1518-byte UDP), 50 Gbps application control, 38 Gbps IPS and 29 Gbps NGFW, with up to 16 million TCP sessions. It has eight 5G RJ-45 ports, sixteen Gigabit SFP ports, four SFP+ ports, four SFP28 ports, a 2.5G HA port and a management port. The description lists several capacity figures that do not match the spec, the spec values are used here.
Key Features
- 1 yr Premium + Enterprise Protection
- 480 GB SSD
- 38 Gbps IPS, 29 Gbps NGFW
- 8 x 5G RJ-45 + 16 x SFP
- 4 x SFP+ + 4 x SFP28
- 1U rack mount
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 701G
Product Type: Security appliance
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 25 Gigabit Ethernet, 5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: HTTP, HTTPs, IPSec, IPv4, IPv6, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 50000, Concurrent SSL VPN users: 10000, Concurrent TCP sessions: 16000000, Firewall policies: 10000, Gateway to gateway IPSec VPN Tunnels: 2000, Maximum virtual domains: 50, New TCP sessions per second: 700000, Number of FortiAP devices (tunnel): 512, Number of FortiAP devices: 1024, Number of FortiSwitches: 96, Number of FortiToken devices: 5000, SSL inspection concurrent sessions: 1600000, SSL inspection CPS: 13000, Virtual domains: 10
Network Device: Application control throughput: 50 Gbps, CAPWAP throughput: 133 Gbps, Firewall latency (64-byte UDP): 3.87 μs, Firewall throughput: 217.5 Mpps, IPS throughput: 38 Gbps, IPv4 firewall throughput (1518-byte UDP): 164 Gbps, IPv4 firewall throughput (512-byte UDP): 163 Gbps, IPv4 firewall throughput (64-byte UDP): 145 Gbps, IPv6 firewall throughput (1518-byte UDP): 164 Gbps, IPv6 firewall throughput (512-byte UDP): 163 Gbps, IPv6 firewall throughput (86-byte UDP): 145 Gbps, NGFW throughput: 29 Gbps, SSL inspection throughput: 14 Gbps, Threat protection throughput: 26 Gbps, VPN throughput (512-bit IPSec): 55 Gbps, VPN throughput (SSL): 8 Gbps
Operating System Edition: FortiOS
Features: 4 fans, CAPWAP support, High Availability, Trusted Platform Module (TPM), VPN support, Zero Trust Network Access (ZTNA)
Bundled Services: 1 year FortiCare Premium Support + 1 year FortiGuard Enterprise Protection
Connectivity
Interface Provided: 1 x 1/2.5 Gigabit Ethernet (High Availability) - RJ-45, 1 x 1000Base-T (management) - RJ-45, 1 x console - RJ-45, 16 x 10/100/1000Base-T - SFP, 2 x USB 3.0 - Type A, 4 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP28, 4 x 1000Base-X/10GBase-X - SFP+, 8 x 5GBase-T - RJ-45
Power
Device Type: Internal power supply
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC CP10/NP7
Hard Drive Capacity: 480 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front and side to back
Status Indicators: Alarm, HA, Power, Status
Built-in Devices: 4 x fans
Installed Quantity: 2
Dimensions and Weight
Height: 1.7 inch
Width: 17 inch
Depth: 13.5 inch
Weight: 7.72 lbs
Included Items
Included Accessories: 2 SX SFP transceivers
Warranty
Service Activation: No
