Product Information

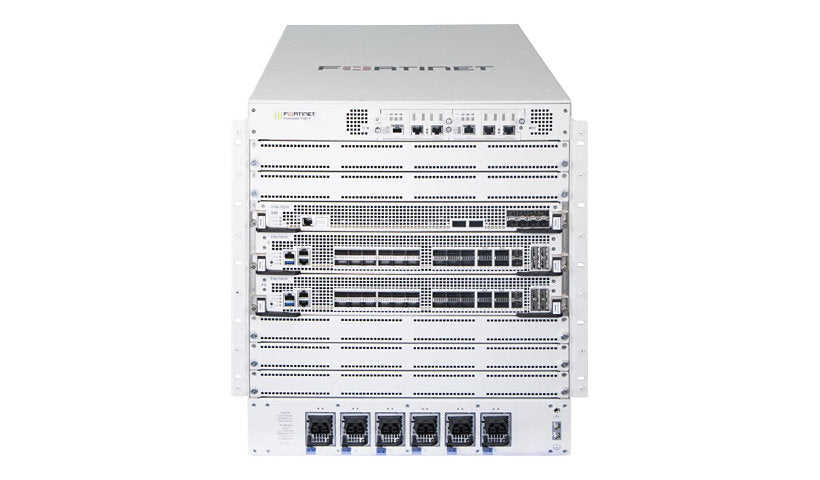

This FortiGate 7081F bundle comes with 3 years of FortiCare Premium support and 3 years of FortiGuard Unified Threat Protection. The 7081F is a 12U chassis firewall for large enterprises and service providers, rated at 1.89 Tbps firewall (1518-byte UDP), 900 Gbps application control, 405 Gbps IPS, 330 Gbps NGFW and 378 Gbps IPsec VPN, with up to 600 million TCP sessions and 4.5 million new sessions per second. It offers high density 400G, 100G and 25G interfaces, HA and management ports and 4 TB of storage.
Key Features
- 3 yr FortiCare Premium + UTP
- 1.89 Tbps firewall (1518-byte)
- 330 Gbps NGFW
- 600M TCP sessions
- 400G, 100G and 25G ports
- 12U chassis
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 7081F
Product Type: Security appliance
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 400 Gigabit Ethernet, Gigabit Ethernet
Network Standard: HTTP, HTTPs, IPSec, IPv4, IPv6, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 260000, Concurrent SSL VPN users: 30000, Concurrent TCP sessions: 600000000, Firewall policies: 200000, Gateway to gateway IPSec VPN Tunnels: 40000, Maximum virtual domains: 500, New TCP sessions per second: 4500000, Number of FortiSwitches: 300, Number of FortiToken devices: 12000, SSL inspection concurrent sessions: 60000000, SSL inspection CPS: 288000, Virtual domains: 10
Network Device: Application control throughput: 900 Gbps, Firewall latency (64-byte UDP): 7.5 µs, Firewall throughput (1518-byte UDP): 1.89 Tbps, Firewall throughput (512-byte UDP): 1.88 Tbps, Firewall throughput (64-byte UDP): 1.129 Tbps, Firewall throughput: 1680 Mpps, IPS throughput (enterprise traffic mix): 405 Gbps, NGFW throughput (enterprise traffic mix): 330 Gbps, SSL inspection throughput: 324 Gbps, Threat protection throughput (enterprise traffic mix): 312 Gbps, VPN throughput (512-bit IPSec): 378 Gbps, VPN throughput (SSL): 13.5 Gbps
Operating System Edition: FortiOS
Features: SSL inspection, Trusted Platform Module (TPM), VPN support
Connectivity
Interface Provided: 16 x 40Gb Ethernet/100Gb Ethernet/400Gb Ethernet - QSFP+/QSFP28/QSFP-DD, 2 x USB, 36 x 40Gb Ethernet/100Gb Ethernet - QSFP+/QSFP28, 4 x 1000Base-T (management) - RJ-45, 4 x 10Gb Ethernet/25Gb Ethernet (HA) - SFP+/SFP28, 48 x 40Gb Ethernet/100Gb Ethernet - QSFP+/QSFP28, 8 x console, 80 x 10Gb Ethernet/25Gb Ethernet - SFP+/SFP28
Expansion Slots: 2 (total) / 0 (free) x management module, 2 (total) / 1 (free) x interface module, 6 (total) / 5 (free) x processor module
Power
Device Type: Internal power supply
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC CP9/NP7
Hard Drive Capacity: 4 TB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 12
Status Indicators: Alarm, Fan, HA, Power, PSU, Slot, Status, Temperature
Installed Quantity: 4
Dimensions and Weight
Height: 21.4 inch
Width: 17.3 inch
Depth: 26.6 inch
Weight: 365.26 lbs
Included Items
Included Accessories: 4 x SR 10Gbps SFP+ transceivers
Warranty
Service Activation: No
