Product Information

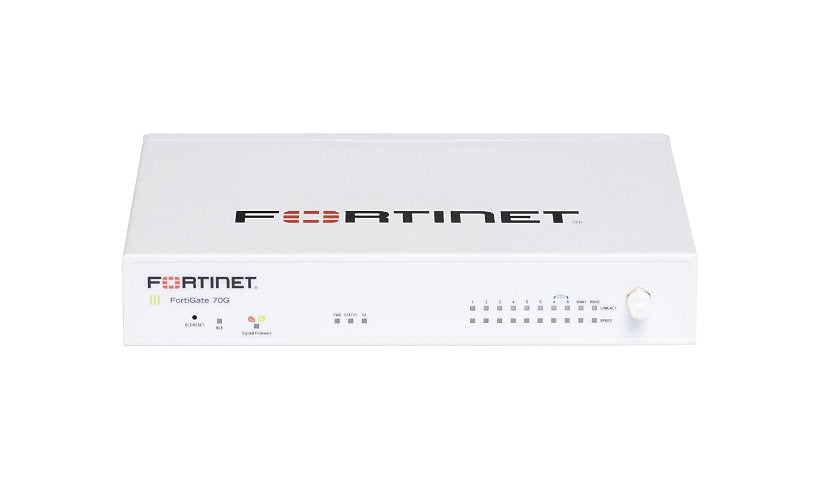

This FortiGate 70G bundle comes with 1 year of FortiCare Premium support and 1 year of FortiGuard Enterprise Protection. The 70G is a desktop firewall rated at 10 Gbps firewall (1518-byte UDP) and 3.6 Gbps application control, with up to 1.4 million TCP sessions and 500 client to gateway IPsec tunnels. It has two WAN ports, two FortiLink ports and six Gigabit LAN ports. The description quotes 1.3 Gbps firewall, which does not match the spec, please confirm.
Key Features
- 1 yr Premium + Enterprise Protection
- 10 Gbps firewall (spec)
- 1.4M TCP sessions
- 2 WAN + 2 FortiLink + 6 LAN
- About 12.3 W
- Desktop form factor
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 70G
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Gigabit Ethernet
Network Standard: DNS, HTTP, HTTPs, IPSec, IPv6, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 500, Concurrent TCP sessions: 1400000, Firewall policies: 5000, Gateway to gateway IPSec VPN Tunnels: 200, Maximum number of FortiTokens: 500, Maximum virtual domains: 10, New TCP sessions per second: 100000, Number of FortiAP devices (tunnel): 48, Number of FortiAP devices: 96, Number of FortiSwitches: 24, SSL inspection concurrent sessions: 140000, SSL inspection CPS: 715, Virtual domains: 10
Network Device: Application control (HTTP 64K): 3.6 Gbps, CAPWAP Throughput (HTTP 64K): 6.8 Gbps, Firewall latency (64-byte UDP): 2.46 μs, Firewall throughput (1518-byte UDP): 10 Gbps, Firewall throughput (512-byte UDP): 10 Gbps, Firewall throughput (64-byte UDP): 10 Gbps, Firewall throughput: 15 Mpps, IPS throughput: 2.5 Gbps, NGFW throughput: 1.5 Gbps, SSL inspection throughput: 1.4 Gbps, Threat protection throughput: 1.3 Gbps, VPN throughput (512-bit IPSec): 7.1 Gbps
Operating System Edition: FortiOS
Features: AI powered, Bluetooth Low Energy (BLE), CAPWAP support, Fanless, High Availability, NGFW appliance, SD-WAN support, Trusted Platform Module (TPM), VPN support, Zero Trust Network Access (ZTNA)
Bundled Services: 1 year FortiCare Premium Support + 1 year FortiGuard Enterprise Protection
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x USB - Type A, 2 x 1 Gigabit Ethernet (High Availability) - RJ-45 (WAN), 2 x 1000Base-T (FortiLink) - RJ-45, 6 x 1000Base-T - RJ-45
Power
Device Type: External power adapter
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 12.3 watt
80 PLUS Certification: 80 PLUS
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SP5
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Desktop
Status Indicators: Bluetooth Low Energy (BLE), Firmware, Link/activity, Power, Reset, Speed, Status, WAN
Dimensions and Weight
Height: 1.6 inch
Width: 8.5 inch
Depth: 6.3 inch
Weight: 32.1 ounce
Warranty
Service Activation: No
