Product Information

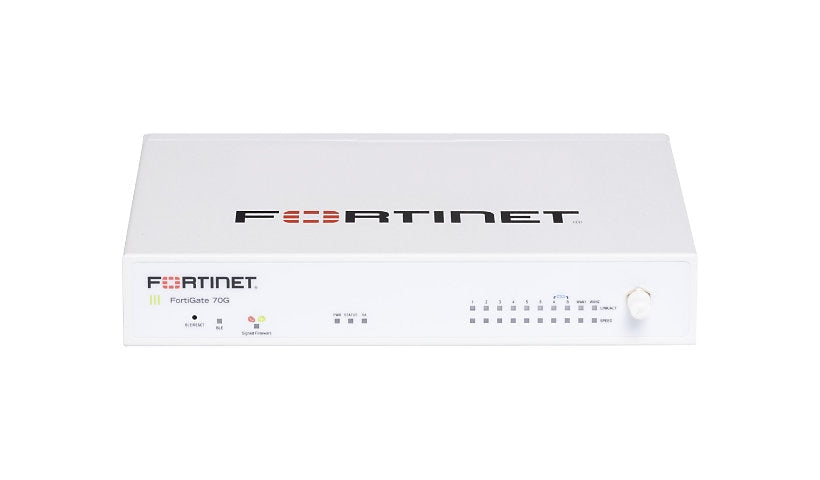

This FortiGate 70G bundle includes 5 years of FortiCare Premium support and 5 years of FortiGuard Enterprise Protection. The 70G is a desktop firewall listed at 10 Gbps firewall (1518-byte UDP) and 3.6 Gbps application control, with up to 1.4 million TCP sessions and 500 client to gateway IPsec tunnels. It has two WAN ports, two FortiLink ports and six Gigabit LAN ports. The description quotes 1.3 Gbps firewall, which does not match the spec, please confirm.
Key Features
- 5 yr Premium + Enterprise Protection
- 10 Gbps firewall (spec)
- 1.4M concurrent sessions
- 2 WAN + 2 FortiLink + 6 LAN
- About 12.3 W
- Desktop, cloud managed
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 70G
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: DNS, HTTP, HTTPs, IPSec, IPv6, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 500, Concurrent TCP sessions: 1400000, Firewall policies: 5000, Gateway to gateway IPSec VPN Tunnels: 200, Maximum virtual domains: 10, New TCP sessions per second: 100000, Number of FortiAP devices (tunnel mode): 48, Number of FortiAP devices: 96, Number of FortiSwitches: 24, Number of FortiToken devices: 500, SSL inspection concurrent sessions: 140000, SSL inspection CPS: 715, Virtual domains: 10
Network Device: Application control throughput (HTTP 64K): 3.6 Gbps, CAPWAP Throughput (HTTP 64K): 6.8 Gbps, Firewall latency (64-byte UDP): 2.46 μs, Firewall throughput (1518-byte UDP): 10 Gbps, Firewall throughput (512-byte UDP): 10 Gbps, Firewall throughput (64-byte UDP): 10 Gbps, Firewall throughput: 15 Mpps, IPS throughput (enterprise traffic mix): 2.5 Gbps, NGFW throughput (enterprise traffic mix): 1.5 Gbps, SSL inspection throughput: 1.4 Gbps, Threat protection throughput (enterprise traffic mix): 1.3 Gbps, VPN throughput (512-bit IPSec): 7.1 Gbps
Operating System Edition: FortiOS
Features: AI powered, Built-in ASIC, Data Loss Prevention (DLP), DDoS Protection, Fanless, Firewall protection, High Availability, Intrusion Prevention System (IPS), NGFW appliance, SD-WAN support, Self-healing network, SSL inspection, Trusted Platform Module (TPM), URL filtering, VPN support, Zero Trust Network Access (ZTNA)
Bundled Services: 5 years FortiCare Premium Support + 5 years FortiGuard Enterprise Protection
Connectivity
Ports: 10
Interface Provided: 1 x console - RJ-45, 1 x USB 3.0 - Type A, 2 x 1000Base-T - RJ-45 (WAN), 2 x 1000Base-T (FortiLink) - RJ-45, 6 x 1000Base-T - RJ-45
Power
Device Type: External power adapter
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 12.3 watt
80 PLUS Certification: 80 PLUS
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SP5
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Desktop
Status Indicators: Firmware, HA, Link/activity/speed, Power, Reset, Status, WAN
Dimensions and Weight
Height: 1.6 inch
Width: 8.5 inch
Depth: 6.3 inch
Weight: 32.1 ounce
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
