Product Information

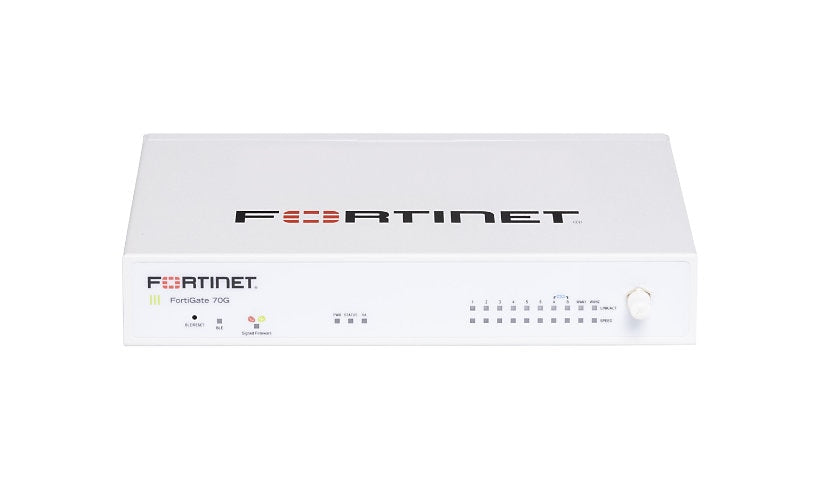

The Fortinet FortiGate 70G is a desktop next generation firewall with ten Gigabit RJ-45 ports (two WAN/HA, two FortiLink and six LAN), USB and a console port, with up to 1.4 million sessions and 500 client VPN tunnels. The spec lists 10 Gbps firewall (1518-byte UDP) while the description quotes 1.3 Gbps, so please confirm the metric you need.
Key Features
- Desktop NGFW
- 10 x 1G RJ-45
- 2 WAN, 2 FortiLink, 6 LAN
- 1.4M concurrent sessions
- 500 client VPN tunnels
- About 12.3 W
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 70G
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Gigabit Ethernet
Network Standard: DNS, HTTP, HTTPs, IPSec, IPv6, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 500, Concurrent TCP sessions: 1400000, Firewall policies: 5000, Gateway to gateway IPSec VPN Tunnels: 200, Maximum number of FortiTokens: 500, Maximum virtual domains: 10, New TCP sessions per second: 100000, Number of FortiAP devices (tunnel): 48, Number of FortiAP devices: 96, Number of FortiSwitches: 24, SSL inspection concurrent sessions: 140000, SSL inspection CPS: 715, Virtual domains: 10
Network Device: Application control (HTTP 64K): 3.6 Gbps, CAPWAP Throughput (HTTP 64K): 6.8 Gbps, Firewall latency (64-byte UDP): 2.46 μs, Firewall throughput (1518-byte UDP): 10 Gbps, Firewall throughput (512-byte UDP): 10 Gbps, Firewall throughput (64-byte UDP): 10 Gbps, Firewall throughput: 15 Mpps, IPS throughput: 2.5 Gbps, NGFW throughput: 1.5 Gbps, SSL inspection throughput: 1.4 Gbps, Threat protection throughput: 1.3 Gbps, VPN throughput (512-bit IPSec): 7.1 Gbps
Operating System Edition: FortiOS
Features: AI powered, Bluetooth Low Energy (BLE), CAPWAP support, Fanless, High Availability, NGFW appliance, SD-WAN support, Trusted Platform Module (TPM), VPN support, Zero Trust Network Access (ZTNA)
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x USB - Type A, 2 x 1 Gigabit Ethernet (High Availability) - RJ-45 (WAN), 2 x 1000Base-T (FortiLink) - RJ-45, 6 x 1000Base-T - RJ-45
Power
Device Type: External power adapter
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 12.3 watt
80 PLUS Certification: 80 PLUS
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SP5
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Desktop
Status Indicators: Bluetooth Low Energy (BLE), Firmware, Link/activity, Power, Reset, Speed, Status, WAN
Dimensions and Weight
Height: 1.6 inch
Width: 8.5 inch
Depth: 6.3 inch
Weight: 32.1 ounce
Certifications and Listing
Compliant Standards: BSMI, CB, cUL, FCC, ICES, RCM, UL, USGv6, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
