Product Information

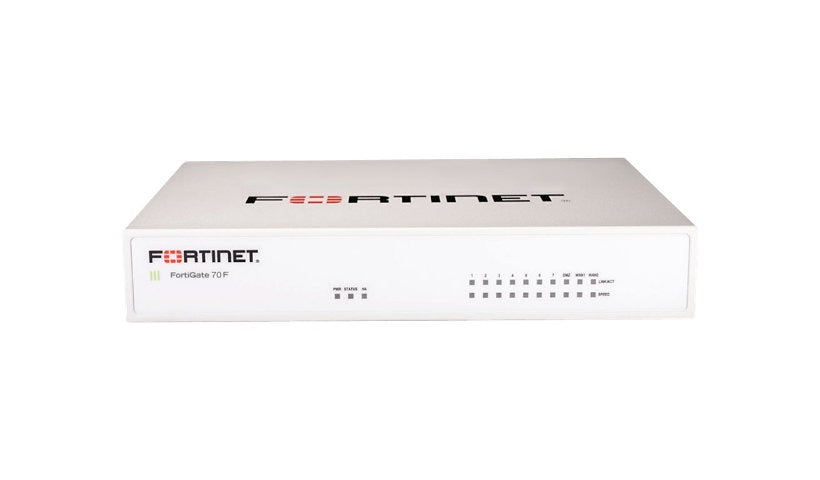

This FortiGate 71F bundle comes with 3 years of FortiCare Premium support and 3 years of FortiGuard Enterprise Protection. The 71F is a desktop firewall with 128 GB of storage, rated at 10 Gbps firewall (1518-byte UDP), 1.8 Gbps application control, 1.4 Gbps IPS, 1 Gbps NGFW and 6.1 Gbps IPsec VPN. It has two Gigabit WAN ports, a DMZ port, seven Gigabit LAN ports, a console and USB 3.0.
Key Features
- 3 yr Premium + Enterprise Protection
- 128 GB local storage
- 10 Gbps firewall (1518-byte UDP)
- 1 Gbps NGFW
- 2 WAN + 1 DMZ + 7 LAN
- Desktop form factor
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 71F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: IPSec, IPv6, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: SSL
Capacity: Client to gateway IPSec VPN tunnels: 500, Concurrent SSL VPN users: 200, Concurrent TCP sessions: 1500000, Firewall policies: 5000, Gateway to gateway IPSec VPN Tunnels: 200, Maximum virtual domains: 10, New TCP sessions per second: 35000, Number of FortiAP devices (tunnel): 32, Number of FortiAP devices:, Number of FortiAP devices: 64, Number of FortiSwitches: 24, Number of FortiToken devices: 500, SSL inspection concurrent sessions: 100000, Virtual domains: 10
Network Device: Application control throughput: 1.8 Gbps, CAPWAP Throughput (HTTP 64K): 8.5 Gbps, Firewall latency (64-byte UDP): 2.54 µs, Firewall throughput (1518-byte UDP): 10 Gbps, Firewall throughput (512-byte UDP): 10 Gbps, Firewall throughput (64-byte UDP): 6 Gbps, Firewall throughput: 9 Mpps, IPS throughput: 1.4 Gbps, NGFW throughput: 1 Gbps, SSL inspection throughput: 700 Mbps, Threat protection throughput: 800 Mbps, VPN throughput (512-bit IPSec): 6.1 Gbps, VPN throughput (SSL): 405 Mbps
Operating System Edition: FortiOS
Features: CAPWAP support, Fanless, High Availability, SD-WAN support, SSL inspection, VPN support
Bundled Services: 3 years FortiCare Premium Support + 3 years FortiGuard Enterprise Protection
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45 (DMZ), 1 x console - RJ-45, 1 x USB 3.0 - Type A, 2 x 1000Base-T - RJ-45 (WAN), 7 x 1000Base-T - RJ-45
Power
Device Type: External power adapter
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SP5
Hard Drive Capacity: 128 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Desktop
Status Indicators: DMZ, HA, Link/activity/speed, Power, Status, WAN
Installed Quantity: 1
Dimensions and Weight
Height: 1.5 inch
Width: 8.5 inch
Depth: 6.3 inch
Weight: 2.23 lbs
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
