Product Information

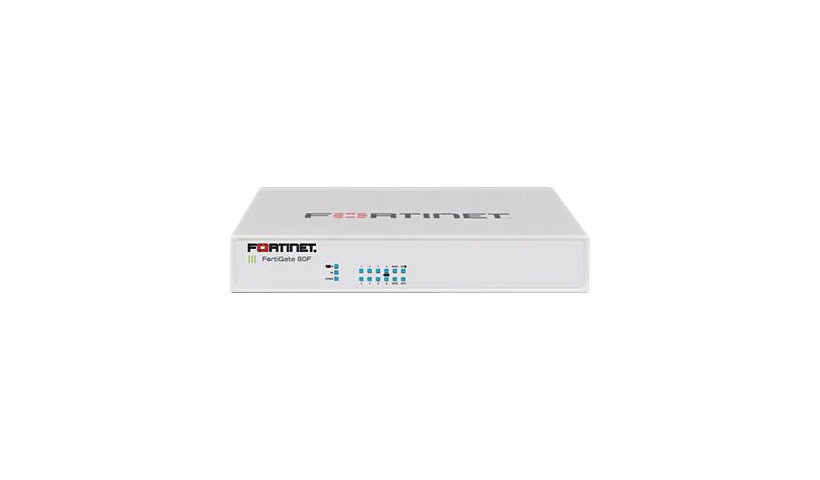

This FortiGate 80F bundle comes with 1 year of 24x7 FortiCare support and FortiGuard Unified (UTM) Protection. The 80F is a fanless desktop firewall and SD-WAN appliance rated at 10 Gbps firewall (1518-byte UDP), 1.8 Gbps application control and 9 Gbps CAPWAP, with up to 1.5 million concurrent sessions and 2,500 client to gateway IPsec tunnels. It has eight Gigabit RJ-45 ports, two RJ-45/SFP combo WAN ports, a console, USB 3.0 and two power inputs.
Key Features
- 1 yr 24x7 FortiCare + UTM
- 10 Gbps firewall (listed)
- 1.5M concurrent sessions
- 8 x 1G RJ-45
- 2 x RJ-45/SFP combo
- Fanless desktop
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 80F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: IPSec
Encryption: SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 2500, Concurrent sessions: 1500000, Concurrent SSL VPN users: 200, Firewall policies: 5000, Gateway to gateway IPSec VPN Tunnels: 200, Latency: 4 µs, New sessions: 45000, Number of FortiAP devices (tunnel mode): 16, Number of FortiAP devices: 32, Number of FortiSwitches: 16, Number of FortiToken devices: 500, SSL inspection concurrent sessions: 100000, SSL inspection concurrent sessions: 700, Virtual domains: 10
Network Device: Application control (AVC) throughput: 1.8 Gbps, CAPWAP throughput: 9 Gbps, Firewall throughput (1518-byte UDP): 10 Gbps, Firewall throughput (512-byte UDP): 10 Gbps, Firewall throughput (64-byte UDP): 7 Gbps, Firewall throughput: 10.5 Mpps, IPS throughput: 1.4 Gbps, NGFW throughput: 1 Gbps, SSL inspection throughput: 715 Mbps, Threat protection throughput: 900 Mbps, VPN throughput (512-bit IPSec): 6.5 Gbps, VPN throughput (SSL): 950 Mbps
Operating System Edition: FortiOS
Features: Antivirus analysis, Fanless, Firewall protection, Intrusion Prevention System (IPS), IPSec Virtual Private Network (VPN), Web threat protection
Bundled Services: 1 year 24x7 FortiCare and FortiGuard Unified (UTM) Protection
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x USB 3.0 - Type A, 2 x Ethernet 1000 - RJ-45/SFP (mini-GBIC), 8 x 1000Base-T - RJ-45
Power
Device Type: External power adapter
Power Consumption Operational: 15.8 watt
Power Supplies Installed: 2
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SOC4
Processors Installed: 1
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Desktop
Dimensions and Weight
Height: 1.5 inch
Width: 8.5 inch
Depth: 6.3 inch
Weight: 5.29 lbs
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
