Product Information

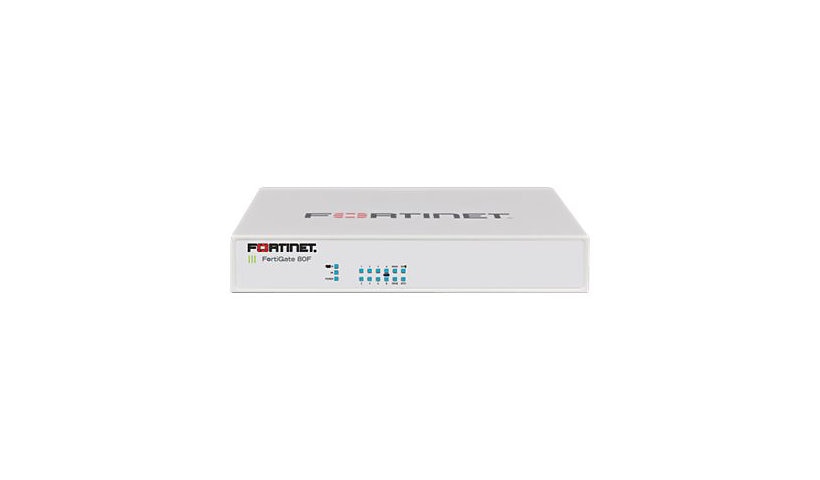

This FortiGate 81F bundle comes with 1 year of 24x7 FortiCare support and 1 year of FortiGuard Unified Threat Protection. The 81F is the 80F model with 128 GB of storage, a fanless desktop firewall rated at 10 Gbps firewall (1518-byte UDP), 1.4 Gbps IPS, 1 Gbps NGFW and 6.5 Gbps IPsec VPN, with up to 1.5 million TCP sessions and 2,500 client to gateway tunnels. It has eight Gigabit RJ-45 ports, two RJ-45/SFP combo WAN ports, a console and USB 3.0.
Key Features
- 1 yr 24x7 FortiCare + UTP
- 128 GB local storage
- 10 Gbps firewall (listed)
- 1 Gbps NGFW
- 8 x 1G + 2 x combo WAN
- Fanless desktop
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 81F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: IPSec
Encryption: SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 2500, Concurrent SSL VPN users: 200, Concurrent TCP sessions: 1500000, Firewall policies: 5000, Gateway to gateway IPSec VPN Tunnels: 200, New TCP sessions per second: 45000, Number of FortiAP devices (tunnel mode): 16, Number of FortiAP devices: 32, Number of FortiToken devices: 500, SSL inspection concurrent sessions: 100000, SSL inspection CPS: 700, Virtual domains: 10
Network Device: Application control throughput: 1.8 Gbps, CAPWAP throughput: 9 Gbps, Firewall latency (64-byte UDP): 4 µs, Firewall throughput (1518-byte UDP): 10 Gbps, Firewall throughput (512-byte UDP): 10 Gbps, Firewall throughput (64-byte UDP): 7 Gbps, Firewall throughput: 10.5 Mpps, IPS throughput: 1.4 Gbps, NGFW throughput: 1 Gbps, SSL inspection throughput: 715 Mbps, Threat protection throughput: 900 Mbps, VPN throughput (512-bit IPSec): 6.5 Gbps, VPN throughput (SSL): 950 Mbps
Operating System Edition: FortiOS
Features: 3G/4G USB Dongle Support, Fanless, VPN support
Bundled Services: 1 year 24x7 FortiCare Support + 1 year FortiGuard Unified Threat Protection (UTP)
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x USB 3.0 - Type A, 2 x 1000Base-T/1000Base-X - RJ-45/SFP (mini-GBIC) (WAN), 8 x 1000Base-T - RJ-45
Power
Device Type: External power adapter
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SOC4
Processors Installed: 1
Hard Drive Capacity: 128 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Desktop
Installed Quantity: 1
Dimensions and Weight
Height: 1.5 inch
Width: 8.5 inch
Depth: 6.3 inch
Weight: 5.29 lbs
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
