Product Information

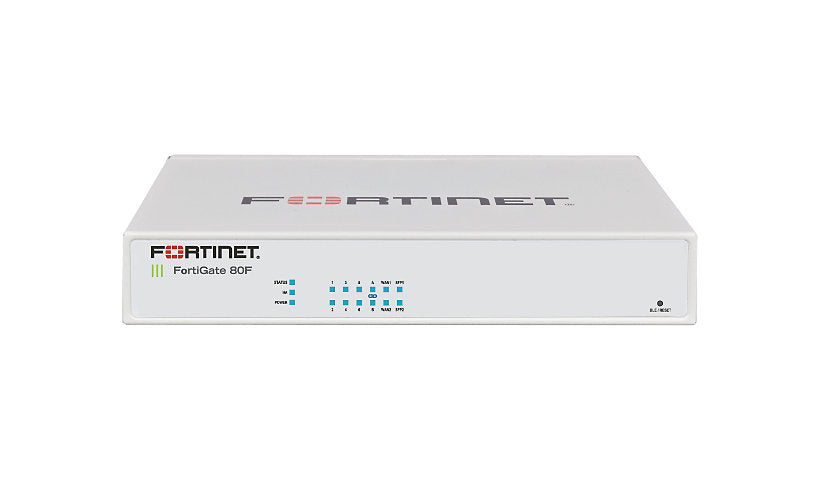

This is the TAA compliant version of the Fortinet FortiGate 81F, for buyers such as US government agencies that need TAA sourcing. The 81F is the 80F model with 128 GB of storage, a fanless firewall for desk, wall or rack use, rated at 10 Gbps firewall (1518-byte UDP), 1.4 Gbps IPS and 1 Gbps NGFW, with up to 1.5 million TCP sessions. It has Gigabit LAN ports, FortiLink ports, two RJ-45/SFP combo ports, a console and USB 3.0. This is the hardware without a service bundle.
Key Features
- TAA compliant version
- 128 GB local storage
- 10 Gbps firewall (1518-byte UDP)
- 1 Gbps NGFW
- 1.5M TCP sessions
- Fanless, desk/wall/rack
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 81F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: HTTP, HTTPs, IPSec, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 2500, Concurrent SSL VPN users: 200, Concurrent TCP sessions: 1500000, Firewall policies: 5000, Gateway to gateway IPSec VPN Tunnels: 200, Maximum virtual domains: 10, New TCP sessions per second: 45000, Number of FortiAP devices (tunnel): 48, Number of FortiAP devices: 96, Number of FortiSwitches: 16, Number of FortiToken devices: 500, SSL inspection concurrent sessions: 100000, SSL inspection CPS: 700, Virtual domains: 10
Network Device: Application control throughput: 1.8 Gbps, CAPWAP throughput: 9 Gbps, Firewall latency (64-byte UDP): 3.23 µs, Firewall throughput (1518-byte UDP): 10 Gbps, Firewall throughput (512-byte UDP): 10 Gbps, Firewall throughput (64-byte UDP): 7 Gbps, Firewall throughput: 10.5 Mpps, IPS throughput (enterprise traffic mix): 1.4 Gbps, NGFW throughput (enterprise traffic mix): 1 Gbps, SSL inspection throughput: 715 Mbps, Threat protection throughput (enterprise traffic mix): 900 Mbps, VPN throughput (512-bit IPSec): 6.5 Gbps, VPN throughput (SSL): 950 Mbps
Operating System Edition: FortiOS
Features: 3G/4G USB Dongle Support, CAPWAP support, Fanless, SD-WAN support, SSL inspection, VPN support
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x USB 3.0 - Type A, 2 x 1000Base-T (FortiLink) - RJ-45, 2 x 1000Base-T/1000Base-X - RJ-45/SFP (mini-GBIC), 6 x 1000Base-T - RJ-45
Power
Device Type: External power adapter
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 13.5 watt
Power Supplies Installed: 1
Power Supplies Supported: 2
Redundant Power Supply: Optional
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SOC4
Processors Installed: 1
Hard Drive Capacity: 128 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Desktop / wall / rack mountable
Status Indicators: Bypass, HA, Power, Status
Installed Quantity: 1
Dimensions and Weight
Height: 1.5 inch
Width: 8.5 inch
Depth: 6.3 inch
Weight: 5.29 lbs
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
