Product Information

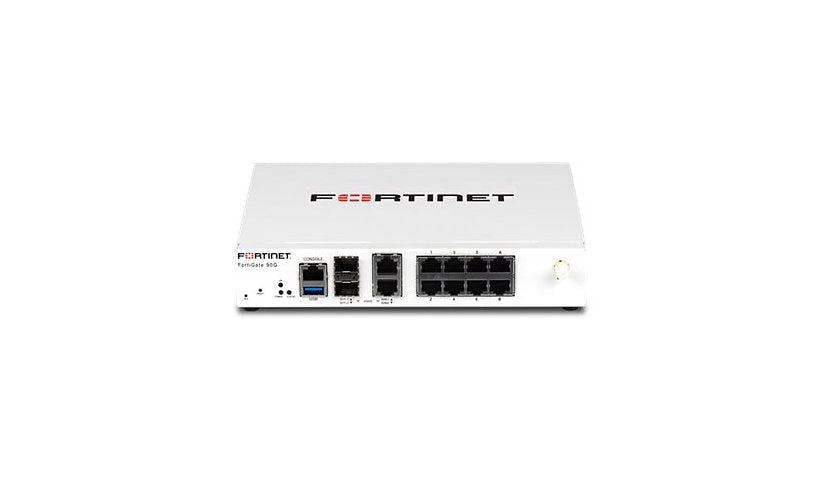

This FortiGate 90G bundle comes with 5 years of FortiCare Premium support and 5 years of FortiGuard Unified Threat Protection. The 90G is a desktop firewall rated at 28 Gbps firewall (1518-byte UDP) and 6.7 Gbps application control, with up to 1.5 million TCP sessions and 2,500 client to gateway IPsec tunnels. WAN options are two 1/10G SFP/SFP+ slots and two 2.5/5/10G RJ-45 ports, with eight Gigabit LAN ports and an optional redundant power supply.
Key Features
- 5 yr FortiCare Premium + UTP
- 28 Gbps firewall (listed)
- 2 x 10G SFP+ + 2 x 10G RJ-45 WAN
- 8 x 1G RJ-45 LAN
- Redundant PSU optional
- About 19.9 W
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 90G
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Gigabit Ethernet
Network Standard: DNS, HTTP, HTTPs, IPSec, IPv6, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 2500, Concurrent SSL VPN users: 200, Concurrent TCP sessions: 1500000, Firewall policies: 5000, Gateway to gateway IPSec VPN Tunnels: 200, Maximum number of FortiTokens: 500, Maximum virtual domains: 10, New TCP sessions per second: 124000, Number of FortiAP devices (tunnel): 48, Number of FortiAP devices: 96, Number of FortiSwitches: 24, SSL inspection concurrent sessions: 300000, SSL inspection CPS: 1400, Virtual domains: 10
Network Device: Application control (HTTP 64K): 6.7 Gbps, CAPWAP Throughput (HTTP 64K): 23.6 Gbps, Firewall latency (64-byte UDP): 3.23 µs, Firewall throughput (1518-byte UDP): 28 Gbps, Firewall throughput (512-byte UDP): 28 Gbps, Firewall throughput (64-byte UDP): 27.9 Gbps, Firewall throughput: 41.85 Mpps, IPS throughput (enterprise traffic mix): 4.5 Gbps, NGFW throughput (enterprise traffic mix): 2.5 Gbps, SSL inspection throughput: 2.6 Gbps, Threat protection throughput (enterprise traffic mix): 2.2 Gbps, VPN throughput (512-bit IPSec): 25 Gbps, VPN throughput (SSL): 1.4 Gbps
Operating System Edition: FortiOS
Features: AI powered, Bluetooth Low Energy (BLE), CAPWAP support, High Availability, NGFW appliance, SD-WAN support, Trusted Platform Module (TPM), VPN support, Zero Trust Network Access (ZTNA)
Bundled Services: 5 years FortiCare Premium Support + 5 years FortiGuard Unified Threat Protection (UTP)
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x USB - Type A, 2 x 1 Gigabit Ethernet/10Gb Ethernet - SFP/SFP+ (WAN), 2 x 2.5/5/10 Gigabit Ethernet - RJ-45 (WAN), 8 x 1000Base-T - RJ-45
Power
Device Type: External power adapter
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 19.9 watt
Redundant Power Supply: Optional
80 PLUS Certification: 80 PLUS
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SP5
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor: Desktop
Status Indicators: Bluetooth Low Energy (BLE), HA, Power, Reset, Status
Dimensions and Weight
Height: 0.9 inch
Width: 8.5 inch
Depth: 7 inch
Weight: 2.47 lbs
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
