Product Information

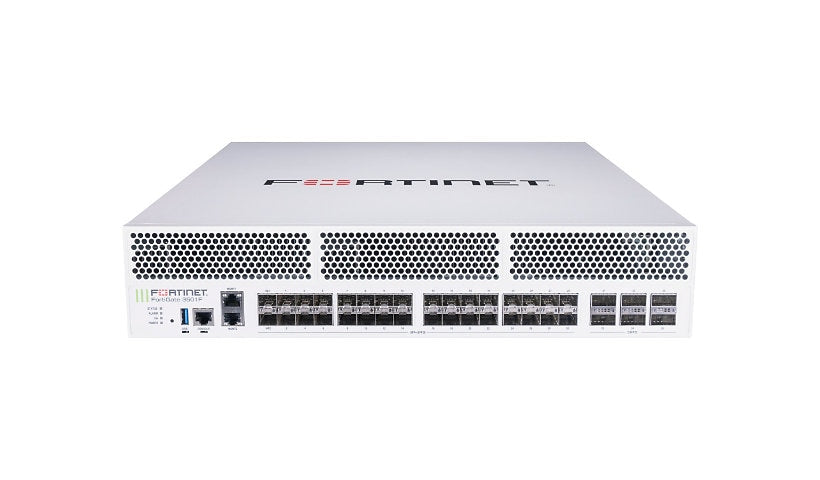

The Fortinet FortiGate 3501F is a 2U next generation firewall for large enterprises and service providers, for use at the network edge, in a hybrid data center core or between internal segments. It offers a high port count of 1/10/25GbE SFP28 ports plus 40/100GbE interfaces, two HA ports and two management ports. Dual hot-plug power supplies are installed, and two SR 10G SFP+ transceivers are included.
Key Features
- 30 x 1/10/25GbE SFP/SFP+/SFP28 ports
- 40GbE and 100GbE interfaces
- 2 x 10/25GbE HA ports, 2 x 1/10GbE management ports
- SSL inspection, VPN, IP tunnel acceleration, TPM
- 2 hot-plug power supplies, redundant
- 2 x SR 10G SFP+ transceivers included
- 2U rack mount, front-to-back airflow
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate
Model: 3501F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, Gigabit Ethernet
Network Standard: HTTP, HTTPs, IPSec, IPv4, IPv6, SCTP, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 200000, Concurrent SSL VPN users: 30000, Concurrent TCP sessions: 140000000, Firewall policies: 200000, Gateway to gateway IPSec VPN Tunnels: 40000, Maximum virtual domains: 500, New TCP sessions per second: 1000000, Number of FortiAP devices (tunnel): 2048, Number of FortiAP devices: 4096, Number of FortiSwitches: 300, Number of FortiToken devices: 20000, SSL inspection concurrent sessions: 15000000, SSL inspection CPS: 60000, Virtual domains: 10
Network Device: Application control throughput: 135 Gbps, CAPWAP throughput: 65 Gbps, Firewall latency (64-byte UDP): 2.98 µs, Firewall throughput (1518-byte UDP): 595 Gbps, Firewall throughput (512-byte UDP): 590 Gbps, Firewall throughput (64-byte UDP): 420 Gbps, Firewall throughput: 630 Mpps, IPS throughput (enterprise traffic mix): 72 Gbps, IPv6 firewall throughput (1518-byte UDP): 595 Gbps, IPv6 firewall throughput (512-byte UDP): 590 Gbps, IPv6 firewall throughput (86-byte UDP): 420 Gbps, NGFW throughput (enterprise traffic mix): 65 Gbps, SSL inspection throughput: 55 Gbps, Threat protection throughput (enterprise traffic mix): 63 Gbps, VPN throughput (512-bit IPSec): 165 Gbps, VPN throughput (SSL): 16 Gbps
Features: CAPWAP support, IP tunnel acceleration, SSL inspection, Trusted Platform Module (TPM), VPN support
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x USB 3.0, 2 x 1 Gigabit Ethernet/10Gb Ethernet (management) - RJ-45 (WAN), 2 x 10Gb Ethernet/25Gb Ethernet (HA) - SFP+/SFP28, 30 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP/SFP+/SFP28, 6 x 40Gb Ethernet/100Gb Ethernet - QSFP+/QSFP28
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 765 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC CP9/NP7
Hard Drive Capacity: 2 TB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 20 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 2
Airflow Direction: Front to back airflow
Status Indicators: Alarm, HA, Power, Status
Installed Quantity: 2
Dimensions and Weight
Height: 3.5 inch
Width: 17.4 inch
Depth: 21.9 inch
Weight: 45.41 lbs
Included Items
Included Accessories: 2 x SR 10Gbps SFP+ transceivers
