Product Information

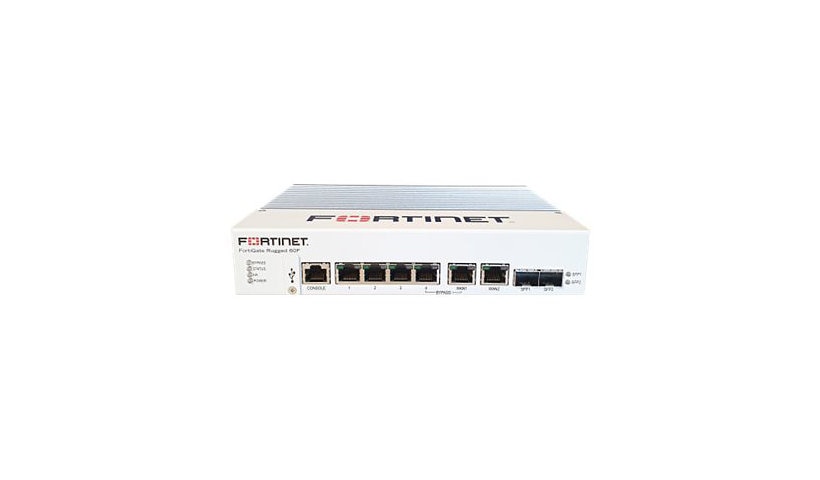

The Fortinet FortiGate Rugged 60F-3G4G is a hardened firewall with a built in 3G/4G LTE modem for industrial and remote sites, mountable on a desk, wall or DIN rail and powered by DC. It is rated at 6 Gbps firewall (1518-byte UDP), 950 Mbps IPS, 550 Mbps NGFW and 3.5 Gbps IPsec VPN, with up to 600,000 TCP sessions and 500 client to gateway tunnels. It has two RJ-45/SFP combo WAN ports, four Gigabit RJ-45 ports, an RJ-45 console, a DB-9 serial port and USB 3.0.
Key Features
- Built in 3G/4G LTE modem
- 6 Gbps firewall (1518-byte UDP)
- 550 Mbps NGFW
- 2 x combo WAN + 4 x 1G
- DB-9 serial port
- Desk, wall or DIN rail
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate Rugged
Model: 60F-3G4G
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: HTTPs, IPSec
Remote Management: HTTPS, MQTT
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 500, Concurrent SSL VPN users: 100, Concurrent TCP sessions: 600000, Firewall policies: 5000, Gateway to gateway IPSec VPN Tunnels: 200, New TCP sessions per second: 19000, Number of FortiAP devices (tunnel): 10, Number of FortiAP devices: 30, Number of FortiSwitches: 16, Number of FortiToken devices: 500, SSL inspection concurrent sessions: 70000, SSL inspection CPS: 300, Virtual domains: 10
Cellular Data Connectivity Technology: UMTS
Mobile Broadband Access: Yes
Cellular Band: HSPA+ B1/B2/B29/B3/B4/B5/B6/B8/B9 / LTE B1/B12/B13/B18/B19/B2/B20/B26/B28/B29/B3/B30/B32/B4/B41/B42/B43/B46/B48/B5/B66/B7/B8/B9
Network Device: Application control throughput: 1.3 Gbps, Firewall latency (64-byte UDP): 3.1 µs, Firewall throughput (1518-byte UDP): 6 Gbps, Firewall throughput (512-byte UDP): 6 Gbps, Firewall throughput (64-byte UDP): 5.95 Gbps, Firewall throughput: 8.9 Mpps, IPS throughput: 950 Mbps, NGFW throughput: 550 Mbps, SSL inspection throughput: 460 Mbps, Threat protection throughput: 500 Mbps, VPN throughput (512-bit IPSec): 3.5 Gbps, VPN throughput (SSL): 400 Mbps
Operating System Edition: FortiOS
Features: CIP support, CoAP support, Fanless, GNSS Bias, MIMO technology, SD-WAN support
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x serial - DB-9, 1 x USB 3.0 - Type A, 2 x 1000Base-T/1000Base-X - RJ-45/SFP (mini-GBIC) (WAN), 4 x 1000Base-T - RJ-45
Expansion Slots: 2 SIM card
Power
Device Type: External power adapter
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SOC4
Processors Installed: 1
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 20 - 90% (non-condensing)
Physical Characteristics
Form Factor: Desktop / wall / DIN rail mountable
Status Indicators: Status
Dimensions and Weight
Height: 1.7 inch
Width: 8.5 inch
Depth: 6.5 inch
Weight: 3.86 lbs
Warranty
Service Activation: No
