Product Information

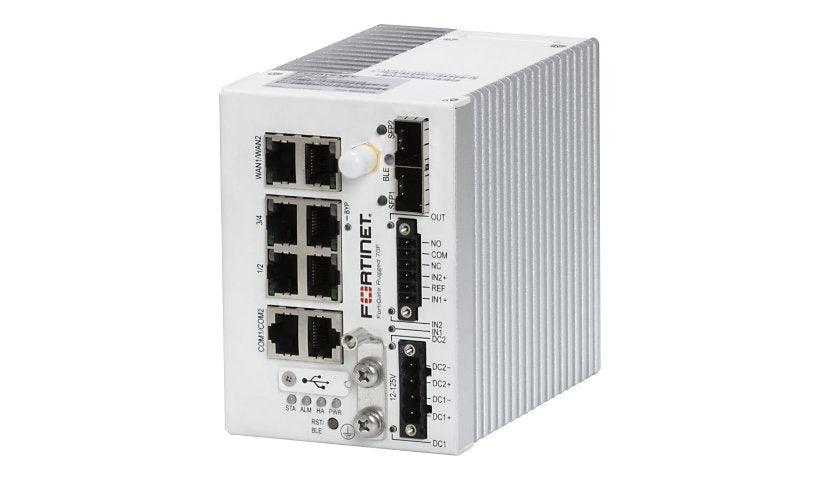

The FortiGate Rugged 70F is a fanless industrial security appliance with SD-WAN support for harsh sites. It has two Gigabit WAN ports, four Gigabit LAN ports, two SFP slots, a bypass pair, digital I/O, USB, console and serial, a -40 to 167 °F range and a DIN rail bracket. This is a firewall, not an access point.
Key Features
- Rugged fanless firewall
- 2 x WAN + 4 x LAN Gigabit RJ-45
- 2 x SFP slots
- Bypass pair, digital I/O
- -40 to 167 °F
- DIN rail bracket included
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate Rugged
Model: 70F
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: HTTP, HTTPs, IPSec, IPv4, IPv6, TCP/IP, UDP/IP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 500, Concurrent SSL VPN users: 100, Concurrent TCP sessions: 1000000, Firewall policies: 5000, Gateway to gateway IPSec VPN Tunnels: 200, New TCP sessions per second: 35000, Number of FortiAP devices (tunnel): 32, Number of FortiAP devices: 64, Number of FortiSwitches: 24, Number of FortiToken devices: 500, SSL inspection concurrent sessions: 90000, SSL inspection CPS: 380, Virtual domains: 10
Network Device: Application control throughput: 1.1 Gbps, Firewall latency (64-byte UDP): 6.71 µs, Firewall throughput: 12 Mpps, IPS throughput: 975 Mbps, IPv4 firewall throughput (1518-byte UDP): 8 Gbps, IPv4 firewall throughput (512-byte UDP): 8 Gbps, IPv4 firewall throughput (64-byte UDP): 8 Gbps, NGFW throughput: 950 Mbps, SSL inspection throughput: 500 Mbps, Threat protection throughput: 580 Mbps, VPN throughput (512-bit IPSec): 6.5 Gbps, VPN throughput (SSL): 450 Mbps
IoT Communications Technology: Bluetooth Low Energy (LE)
Internet of Things (IoT) Compatible: Yes
Features: Bypass interface pair, Fanless, GNSS Bias, MIMO technology, Rugged, SD-WAN support, Trusted Platform Module (TPM), Wi-Fi Diversity
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x serial - RJ-45, 1 x USB 2.0 - Type A, 2 x 1000Base-T - RJ-45 (WAN), 2 x 1000Base-X - SFP (mini-GBIC), 4 x 1000Base-T - RJ-45, Digital input/output
Power
Device Type: External power adapter
Power Consumption Operational: 16 watt
Power Supplies Supported: 2
Redundant Power Supply: Optional
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SOC4
Processors Installed: 1
Flash Memory Cards Supported: microSD
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: DIN Rail Mountable
Status Indicators: Alarm, Bluetooth Low Energy (BLE), Bypass, HA, Power, Speed/activity, Status
Built-in Devices: SD card reader
Dimensions and Weight
Height: 3.2 inch
Width: 4.4 inch
Depth: 4.8 inch
Weight: 2.87 lbs
Included Items
Included Accessories: DIN-rail bracket, I/O connector, Power connector
Cables: 1 x network cable
Warranty
Service Activation: No
