Product Information

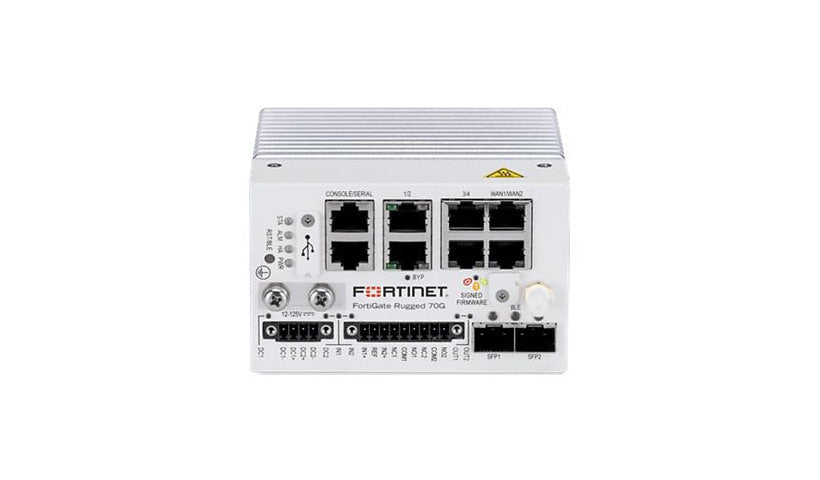

This FortiGate Rugged 70G bundle comes with 3 years of FortiCare Premium support and 3 years of FortiGuard Unified Threat Protection. The Rugged 70G is a hardened DIN rail firewall rated from -40 to 75 °C, at 8 Gbps firewall (1518-byte UDP), 2.5 Gbps IPS, 1.5 Gbps NGFW and 7.1 Gbps IPsec VPN, with up to 1.4 million TCP sessions. It has six Gigabit RJ-45 ports, two SFP ports, RJ-45 console and serial ports, USB 2.0 and Bluetooth LE.
Key Features
- 3 yr FortiCare Premium + UTP
- -40 to 75 °C operation
- 8 Gbps firewall (1518-byte UDP)
- 1.4M TCP sessions
- 6 x 1G RJ-45 + 2 x SFP
- Rugged, DIN rail mount
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiGate Rugged
Model: 70G
Product Type: Security appliance
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Bluetooth LE, Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: DNS, HTTP, HTTPs, IPSec, IPv4, IPv6, TCP/IP, UDP
Remote Management: HTTP, HTTPS
Encryption: 256-bit AES, 256-bit SHA, SSL, TLS 1.3
Capacity: Client to gateway IPSec VPN tunnels: 500, Concurrent TCP sessions: 1400000, Firewall policies: 5000, Gateway to gateway IPSec VPN Tunnels: 200, Maximum virtual domains: 10, New TCP sessions per second: 85000, Number of FortiAP devices (tunnel): 48, Number of FortiAP devices: 96, Number of FortiSwitches: 24, Number of FortiToken devices: 500, SSL inspection concurrent sessions: 1400000, SSL inspection CPS: 715, Virtual domains: 10
Network Device: Advanced threat protection throughput: 1.3 Gbps, Application control throughput: 3.6 Gbps, Firewall latency (64-byte UDP): 5.82 µs, Firewall throughput: 12 Mpps, IPS throughput: 2.5 Gbps, IPv4 firewall throughput (1518-byte UDP): 8 Gbps, IPv4 firewall throughput (512-byte UDP): 8 Gbps, IPv4 firewall throughput (64-byte UDP): 8 Gbps, NGFW throughput: 1.5 Gbps, SSL inspection throughput: 1.4 Gbps, VPN throughput (512-bit IPSec): 7.1 Gbps
IoT Communications Technology: Bluetooth Low Energy (LE)
Internet of Things (IoT) Compatible: Yes
Operating System Edition: FortiOS
Features: Advanced sandbox detection, AI/ML powered, Anti-malware protection, Built-in ASIC, Data Loss Prevention (DLP), DDos attack prevention, Deep Packet Inspection (DPI), DNS filtering, Fanless, GNSS Bias, High Availability, Intrusion Prevention System (IPS), Manageable, MIMO technology, NGFW appliance, Reset button, Rugged, SD-WAN support, Secure Access Service Edge (SASE), Self-healing network, SSL inspection, Trusted Platform Module (TPM), URL filtering, URL protection, VPN support, Wi-Fi Diversity, Zero Trust Network Access (ZTNA)
Bundled Services: 3 years FortiCare Premium Support + 3 years FortiGuard Unified Threat Protection (UTP)
Connectivity
Interface Provided: 1 x console - RJ-45, 1 x serial - RJ-45, 1 x USB 2.0 - Type A, 2 x 1000Base-X - SFP (mini-GBIC), 6 x 1000Base-T - RJ-45
Power
Device Type: External power adapter
Memory and Processor
Processor Brand: Fortinet
Processor Type: FortiASIC SP5
Processors Installed: 1
Flash Memory Cards Supported: microSD
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: DIN Rail Mountable
Status Indicators: Alarm, Bluetooth Low Energy (BLE), Bypass, HA, Power, Speed/activity, Status
Built-in Devices: microSD card reader
Dimensions and Weight
Height: 4.4 inch
Width: 2.7 inch
Depth: 4.8 inch
Weight: 2.2 lbs
Warranty
Service Activation: No
