Product Information

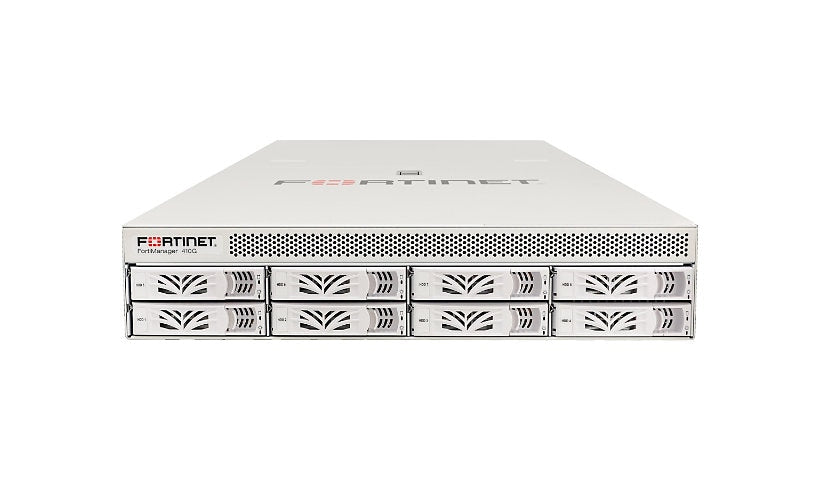

This is the TAA compliant Fortinet FortiManager 410G, a 2U central management appliance for FortiGate firewalls and other Fortinet devices, not a firewall itself. It manages 150 devices or VDOMs by default from one console. It has four Gigabit RJ-45 ports, two SFP ports, a console, two USB 3.0 ports, 4 TB of storage and dual redundant power supplies, drawing about 140 W.
Key Features
- TAA compliant
- Central FortiGate management
- 150 devices/VDOMs default
- 4 x 1G RJ-45 + 2 x SFP
- 4 TB storage
- 2U, dual redundant PSU
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiManager
Model: 410G
Product Type: Network management device
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Gigabit Ethernet
Network Standard: DHCP, IPSec
Remote Management: DHCP
Encryption: SSL
Capacity: Default devices/VDOMs: 150, GB/day of logs: 2, Sustained log rate: 50
Features: Alarm button, Default RAID 50, High Availability, Reset button, Trusted Platform Module (TPM), VPN support
Connectivity
Expansion Bays: 8 (total) / 0 (free) x hot-swap
Interface Provided: 1 x console - RJ-45, 2 x 1000Base-X - SFP, 2 x USB 3.0 - Type A, 4 x 1000Base-T - RJ-45
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 140 watt
Power Supplies Installed: 2
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
RAID Levels: RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6, RAID 60
Hot-Swap: Hot-swap
Hard Drive Capacity: 4 TB
Port Expansion Hard Drive Type: HDD
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 2
Airflow Direction: Front to back airflow
Status Indicators: Link/activity/speed, Power, SFP, Status, Storage
Installed Quantity: 8
Dimensions and Weight
Height: 3.5 inch
Width: 17.5 inch
Depth: 22.2 inch
Weight: 35.27 lbs
Included Items
Included Accessories: 2 handles, 2 screws, 2 sliding rack rails, 4 rubber feet
Cables: 1 x network cable, 1 x power cable, 1 x USB to RJ-45 console cable
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
