Product Information

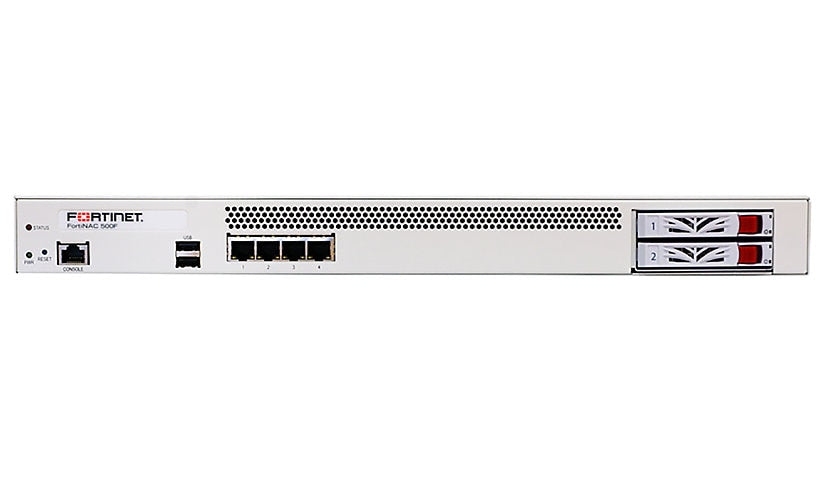

The Fortinet FortiNAC CA-500F is a 1U network access control and application server, not a firewall. It gives visibility and control over devices joining the network. It has four Gigabit RJ-45 ports, an RJ-45 console, 16 GB of RAM, 960 GB of storage and redundant power.
Key Features
- Network access control
- Control and app server
- 4 x 1G RJ-45
- 16 GB RAM, 960 GB storage
- Redundant power
- 1U rack mount
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiNAC
Model: CA-500F
Product Type: Network management device
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management: CLI, DHCP, RADIUS, RestAPI, SNMP, Syslog
Authentication Method: LDAP, RADIUS
Features: 802.1x authentication, High Availability
Connectivity
Ports: 4
Interface Provided: 1 x console - RJ-45, 4 x 10/100/1000Base-T - RJ-45
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
Processor Brand: Intel
Processor Type: Xeon
Processor Number: E-2278GE
Processors Installed: 1
Clock Speed: 3.3 GHZ
RAM Installed: 16 GB
Memory Technology: DDR4 SDRAM
Hard Drive Capacity: 960 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 90% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Built-in Devices: 4 x fans
Installed Quantity: 2
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 19.7 inch
Weight: 31.99 lbs
Certifications and Listing
Compliant Standards: China RoHS, EMC, FCC, ICES, NRTL, RoHS, SCC
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
