Product Information

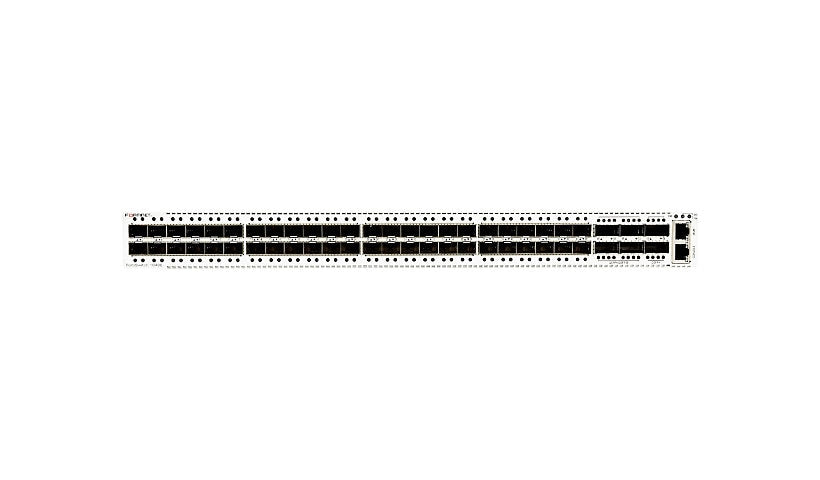

Fortinet's FortiSwitch 1048E is a data center class switch with 48 1/10G SFP+ ports plus 40G QSFP+ and 100G QSFP28 uplinks. It offers 1760 Gbps of switching capacity at under 800 ns of latency, and ships with two hot-plug power supplies in a 1+1 setup.
Key Features
- 48 x 1/10G SFP+ ports
- 40G QSFP+ and 100G QSFP28 uplinks
- 1760 Gbps switching, 1310 Mpps
- Latency under 800 ns, 12 MB buffer
- 2 hot-plug power supplies, 1+1
- Stackable, rack mount
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiSwitch
Model: 1048E
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Switching Type: 100 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet
Routing Protocol: OSPF, RIP, Static IP routing, VRRP
Authentication Method: RADIUS, Secure Shell (SSH)
Performance: Latency: < 800 ns, Packets per second: 1310 Mpps, Switching capacity: 1760 Gbps
Capacity: ACL entries: 8000, Host entries: 32000, MAC addresses: 144000, Maximum aggregation groups: 48, MSTP instances: 15, Queues per port: 8, Routing entries: 16000, VLANs supported: 4000
MAC Address Table Size: 128K entries
Jumbo Frame Support: Yes
Stackable: Stackable
Features: 12MB packet buffer, DHCP support, Flow control, FTP client, IPv4 support, IPv6 support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), Multiple Spanning Tree Protocol (MSTP) support, Port mirroring, Rapid Spanning Tree Protocol (RSTP) support, sFlow, SNTP support, Spanning Tree Protocol (STP) support, Storm Control, Tagged VLAN, Trivial File Transfer Protocol (TFTP) support, VLAN support
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 1 Gigabit / 10 Gigabit SFP+
Ports (2nd) Quantity: 6
Ports Type (2nd): 40 Gigabit QSFP+
Ports (3rd) Quantity: 4
Interface Provided: 1 x 1000Base-T RJ-45 management, 1 x console RJ-45 management, 4 x 100Gbit LAN QSFP28, 48 x 1/10Gbit LAN SFP+, 6 x 40Gbit LAN QSFP+
QSFP Slots: 100 Gigabit QSFP28
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 181.7 watt
Power Supplies Installed: 2
Redundant Power Supply Supported: 1+1
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
RAM Installed: 8 GB
Flash Memory Installed: 128 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
MTBF: 10 Year
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 18.1 inch
Weight: 18.96 lbs
Certifications and Listing
Compliant Standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3x, IEEE 802.3z
Compliant Standards: BSMI, CB, FCC, RCM, RoHS 2, UL, VCCI
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this fits your network? Send us your current switch, router or chassis model and the DatorPro team will confirm compatibility before you order.
