Product Information

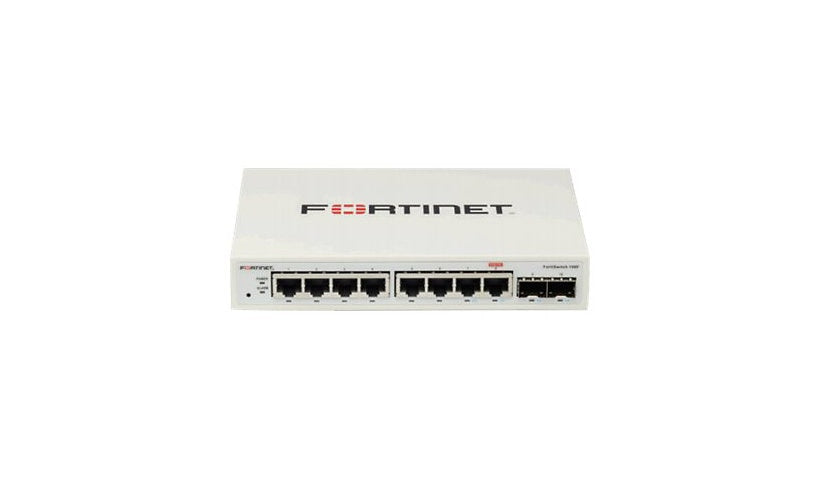

Fortinet's FortiSwitch 108F is a fanless desktop switch with eight Gigabit RJ-45 ports, one of which can take PoE in to power the switch, and two Gigabit SFP ports. It offers 20 Gbps of switching capacity with 802.1x and dynamic ARP inspection, is managed from a FortiGate through FortiLink and is TAA compliant.
Key Features
- 8 x Gigabit RJ-45 ports, 1 with PoE input
- 2 x Gigabit SFP ports
- 20 Gbps switching, 30 Mpps
- FortiLink, 802.1x, DAI
- Fanless desktop
- TAA compliant
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiSwitch
Model: 108F
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTP, HTTPS, RMON 1, SNMP 1, SNMP 2c, SNMP 3, SSH, Syslog, Telnet, TFTP
Authentication Method: RADIUS
Performance: Packets per second: 30 Mpps, Switching capacity: 20 Gbps
Capacity: ACL: 768, Latency: 4 µs, Link aggregation groups: 8, Multiple Spanning Tree Protocol instances: 16, Packet buffer size: 512 KB, Total link aggregation groups: 8, VLANs supported: 4000
MAC Address Table Size: 8K entries
Jumbo Frame Support: Yes
Features: 802.1x authentication, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), DHCP relay, DHCP snooping, Dynamic ARP Inspection (DAI), Encapsulated Remote SPAN (ERSPAN), Energy Efficient Ethernet, Fanless, Flow control, FTP support, IGMP snooping, Link Aggregation Control Protocol (LACP), LLDP support, LLDP-MED, Multiple Spanning Tree Protocol (MSTP) support, Port mirroring, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), SNTP support, Spanning Tree Protocol (STP) support, Storm Control, STP BPDU Guard, STP Root Guard, Switched Port Analyzer (SPAN), Trivial File Transfer Protocol (TFTP) support, VLAN Tagging
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 1000Base-T
Ports (2nd) Quantity: 2
Ports Type (2nd): Gigabit SFP
Interface Provided: 1 x 1000Base-T RJ-45 PoE input, 1 x console RJ-45, 2 x Gigabit LAN SFP, 7 x 1000Base-T RJ-45
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 6.2 watt
Memory and Processor
RAM Installed: 256 megabyte
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 32 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
MTBF: >10 Year
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Airflow Direction: Side to back airflow
Dimensions and Weight
Height: 1.2 inch
Width: 7.1 inch
Depth: 4.7 inch
Weight: 21.87 ounce
Certifications and Listing
Compliant Standards: BSMI, CB, FCC, RCM, RoHS 2, UL, VCCI
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
