Product Information

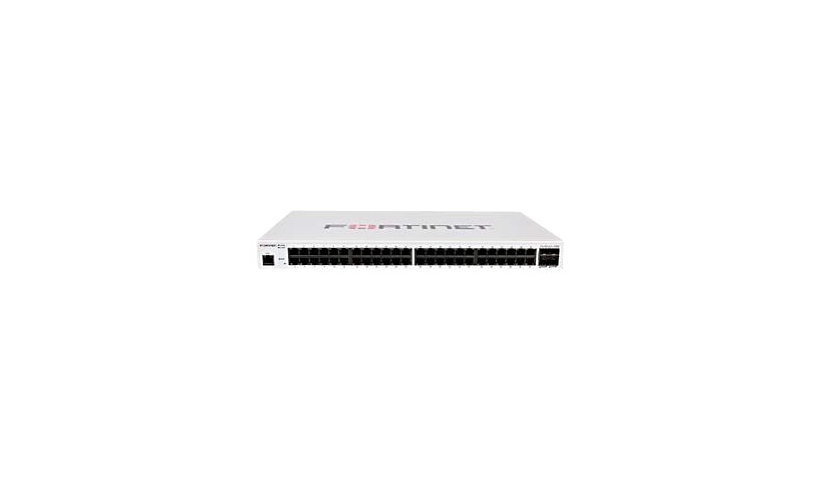

Fortinet's FortiSwitch 248D is a managed switch with 48 Gigabit RJ-45 ports and four Gigabit SFP ports. It offers 104 Gbps of switching throughput at about 1 microsecond of latency, and it can be managed from a FortiGate through FortiLink.
Key Features
- 48 x 10/100/1000 RJ-45 ports
- 4 x Gigabit SFP ports
- 104 Gbps switching, 155 Mpps
- FortiLink management
- Internal power supply, rack mount
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiSwitch
Model: 248D
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Routing Protocol: BGP, OSPF
Authentication Method: RADIUS
Performance: Forwarding performance: 155 Mpps, Latency: 1 µs, Switching throughput: 104 Gbps
Capacity: Maximum aggregation groups: 26, Virtual interfaces (VLANs): 4000
MAC Address Table Size: 16K entries
Jumbo Frame Support: Yes
Features: 1.5MB packet buffer, DHCP support, Flow control, Jumbo Frames support, Link Aggregation Control Protocol (LACP), LLDP support, Management Information Base (MIB), Multiple Spanning Tree Protocol (MSTP) support, Port mirroring, Rapid Spanning Tree Protocol (RSTP) support, sFlow, SNTP support, Spanning Tree Protocol (STP) support, Tagged VLAN, VLAN support
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/100/1000
Ports (2nd) Quantity: 4
Ports Type (2nd): Gigabit SFP
Interface Provided: 1 x console RJ-45, 1 x management (Gigabit LAN) RJ-45, 4 x Gigabit LAN SFP, 48 x 1000Base-T RJ-45
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 38.66 watt
Memory and Processor
RAM Installed: 512 megabyte
Flash Memory Installed: 128 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
MTBF: 10 Year
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity, Power
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 9.7 inch
Weight: 7.8 lbs
Certifications and Listing
Compliant Standards: C-Tick, CB, cUL, FCC Part 15 A, RoHS 2, UL, VCCI
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
