Product Information

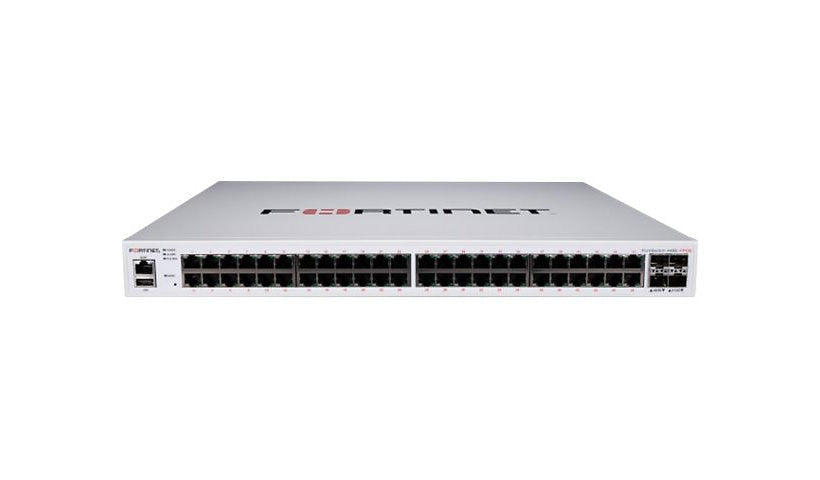

Fortinet's FortiSwitch 448E-FPOE is a Layer 3 switch with 48 Gigabit PoE+ ports and four 10G SFP+ ports. It has a 772 W PoE budget and 176 Gbps of switching capacity, ships with two power supplies and is TAA compliant, with FortiLink management from a FortiGate.
Key Features
- 48 x 10/100/1000 RJ-45 PoE+ ports
- 4 x 10G SFP+ ports
- 772 W PoE budget
- 176 Gbps switching, 262 Mpps
- 2 power supplies installed
- FortiLink, TAA compliant
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiSwitch
Model: 448E-FPOE
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Advanced Switching: Layer 3
Manageable: Yes
Remote Management: CLI, HTTP, HTTPS, IPv4, IPv6, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet
Routing Protocol: BGP, ECMP, OSPFv2, RIP-2, VRRP
Authentication Method: RADIUS
Performance: Latency: 1 µs, Packets per second: 262 Mpps, Switching capacity: 176 Gbps
Capacity: ACL: 1500, Host entries: 16000, IPv4 routes: 16000, IPv6 routes: 8000, Link aggregation groups: 8, Packet buffer size: 4 MB, Spanning Tree Protocol instances: 16, Virtual interfaces (VLANs): 4000
MAC Address Table Size: 32K entries
Jumbo Frame Support: Yes
Features: DiffServ Code Point (DSCP) support, Flow control, Jumbo Frames support, Link Aggregation Control Protocol (LACP), LLDP support, Management Information Base (MIB), Multiple Spanning Tree Protocol (MSTP) support, Port mirroring, Power over Ethernet (PoE), Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, SNTP support, Spanning Tree Protocol (STP) support, Tagged VLAN
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 4
Ports Type (2nd): 10 Gigabit SFP+
Interface Provided: 1 x 1000Base-T RJ-45 management, 1 x console RJ-45, 4 x 10Gbit LAN SFP+, 48 x 1000Base-T RJ-45 PoE+
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 921.4 watt
PoE Budget: 772 watt
Power Supplies Installed: 2
Redundant Power Supply: Yes
Memory and Processor
RAM Installed: 1 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 256 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
MTBF: >10 Year
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Side to back airflow
Status Indicators: Link/activity, PoE, Power
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 16.1 inch
Weight: 14.04 lbs
Certifications and Listing
Compliant Standards: BSMI, CB, FCC, RCM, RoHS 2, UL, VCCI
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
