Product Information

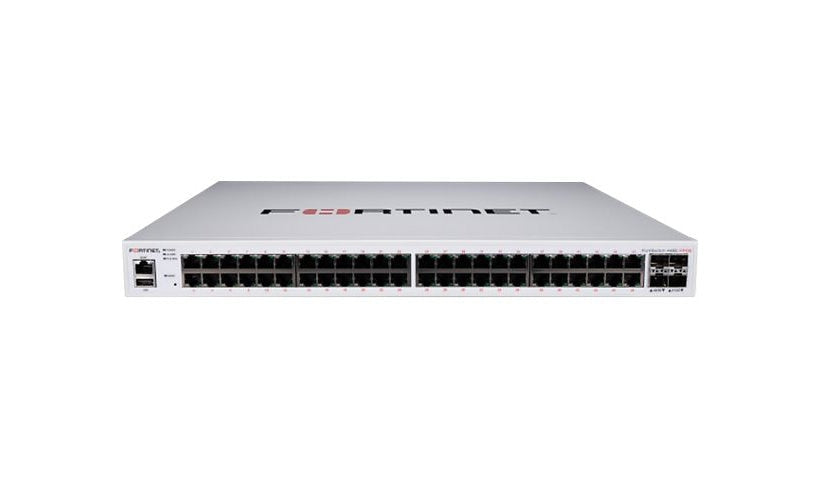

Fortinet's FortiSwitch 448E is a Layer 3 managed switch with 48 Gigabit RJ-45 ports and four 10G SFP+ ports. It offers 176 Gbps of switching capacity, ships with two power supplies for redundancy and can be managed from a FortiGate through FortiLink.
Key Features
- 48 x 10/100/1000 RJ-45 ports
- 4 x 10G SFP+ ports
- 176 Gbps switching, 262 Mpps
- FortiLink, Layer 3
- 2 power supplies installed, redundant
- Rack mount
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiSwitch
Model: 448E
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Advanced Switching: Layer 3
Manageable: Yes
Remote Management: CLI, HTTP, HTTPS, IPv4, IPv6, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet
Routing Protocol: BGP, ECMP, OSPFv2, RIP-2, VRRP
Authentication Method: RADIUS
Performance: Latency: 1 µs, Packets per second: 262 Mpps, Switching capacity: 176 Gbps
Capacity: Link aggregation groups: 8, Packet buffer size: 2 MB, Virtual interfaces (VLANs): 4000
MAC Address Table Size: 32K entries
Jumbo Frame Support: Yes
Features: DiffServ Code Point (DSCP) support, Flow control, Jumbo Frames support, Link Aggregation Control Protocol (LACP), LLDP support, Management Information Base (MIB), Multiple Spanning Tree Protocol (MSTP) support, Port mirroring, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, SNTP support, Spanning Tree Protocol (STP) support, Tagged VLAN
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/100/1000
Ports (2nd) Quantity: 4
Ports Type (2nd): 10 Gigabit SFP+
Interface Provided: 1 x 1000Base-T RJ-45 management, 1 x console RJ-45, 4 x 10Gbit LAN SFP+, 48 x 1000Base-T RJ-45
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 47.81 watt
Power Supplies Installed: 2
Redundant Power Supply: Yes
Memory and Processor
RAM Installed: 1 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 256 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
MTBF: 10 Year
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity, Power
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 12.2 inch
Weight: 9.17 lbs
Certifications and Listing
Compliant Standards: BSMI, CB, FCC, RCM, RoHS 2, UL, VCCI
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
