Product Information

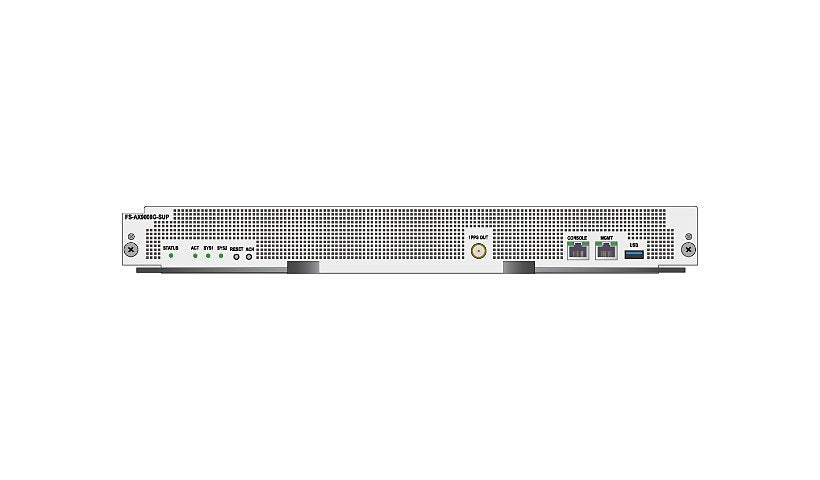

The Fortinet FS-AX9000G-SUP is the supervisor module for the FortiSwitch AX9000G chassis, not a firewall. It has 32 GB of RAM, a 40 GB SSD, an 80 MB packet buffer, a Gigabit management port, an RJ-45 console and USB, and works with AX9000G line cards such as the LC100, LC10P, LC10S and LC25. It operates from 0 to 40 °C.
Key Features
- FortiSwitch AX9000G supervisor
- Plug in module
- 32 GB RAM, 40 GB SSD
- 80 MB packet buffer
- Management and console ports
- For AX9000G chassis
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiSwitch
Product Type: Security appliance
Compatibility Specs: P/N: FN-CABLE-QSFP28-2, FN-CABLE-QSFP28-3, FN-CABLE-QSFP28-5, FN-CABLE-SFP+5, FN-CABLE-SFP28-3, FN-CABLE-SFP28-5, FN-TRAN-LX, FN-TRAN-QSFP+LR, FN-TRAN-QSFP+SR, FN-TRAN-QSFP28-ER, FN-TRAN-QSFP28-LR, FN-TRAN-QSFP28-SR, FN-TRAN-SFP+LR, FN-TRAN-SFP+SR, FN-TRAN-SFP28-LR, FN-TRAN-SFP28-SR, FN-TRAN-SX, FS-AX9000G-LC100, FS-AX9000G-LC10P, FS-AX9000G-LC10S, FS-AX9000G-LC25
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Device: Packet buffer size: 80 MB
Features: CLI management, Hot swappable, Reset button
Connectivity
Interface Provided: 1 x 10/100/1000Base-T (management) - RJ-45, 1 x console - RJ-45, 1 x USB - Type A
Memory and Processor
RAM Installed: 32 GB
Memory Technology: DDR5 SDRAM
Hard Drive Capacity: 40 GB
Port Expansion Hard Drive Type: SSD
Optical Drive Type: None
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 85% RH
Physical Characteristics
Form Factor: Plug-In Module
Status Indicators: Activity, Status, System
Dimensions and Weight
Height: 2 inch
Width: 17.2 inch
Depth: 19.7 inch
Weight: 18.52 lbs
Certifications and Listing
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
