Product Information

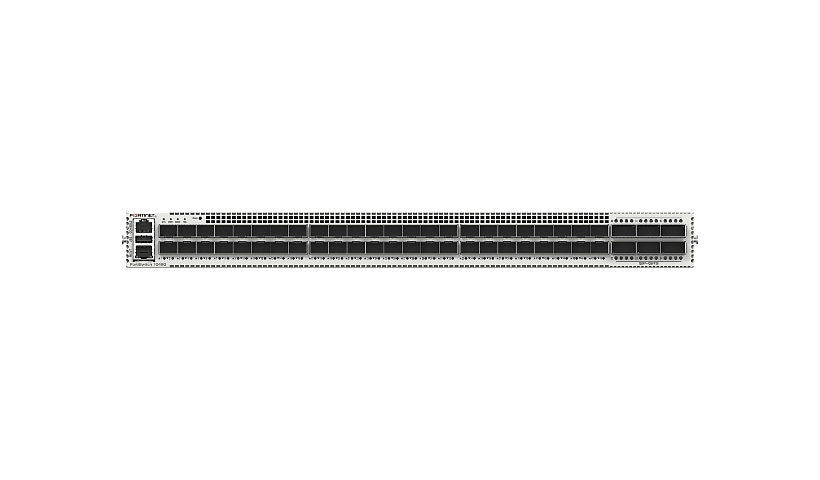

The Fortinet FortiSwitch 1048G is a Layer 3 data center and campus core switch with 48 SFP+ ports at 1/10G and six QSFP28 ports at 40/100G, all MACsec capable. It provides 2,160 Gbps of switching capacity and 2,000 Mpps forwarding, with IPv4/IPv6 routing and BFD. Two hot-plug power supplies are installed for 1+1 redundancy.
Key Features
- 48 x 1/10G SFP+ ports (MACsec)
- 6 x 40/100G QSFP28 ports (MACsec)
- 2,160 Gbps switching, 2,000 Mpps
- Layer 3, stackable, 8 GB RAM
- 2 hot-plug power supplies, 1+1 redundant
- Rack mount, front-to-back airflow
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiSwitch
Model: 1048G
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Advanced Switching: Layer 3
Switching Type: 100 Gigabit Ethernet
Manageable: Yes
Remote Management: HTTP, HTTPS, IPv4, IPv6, MIB, MIB 2, MLD, RMON 1, SFTP, SNMP 1, SNMP 2c, SNMP 3, Telnet, TFTP
Routing Protocol: BGP, IS-IS, OSPF, OSPFv3, PIM-SSM, RIP, RIP-2, Static IP routing, VRRP
Authentication Method: RADIUS, Secure Shell (SSH)
Encryption: MD5
Performance: Latency: < 1 µs, Packets per second: 2000 Mpps, Switching capacity (full duplex): 2160 Gbps
Capacity: ACL entries: 3000, IPv4 routes: 16000, IPv6 routes: 8000, Layer 3 IP interfaces (Ipv4): 16000, Layer 3 IP interfaces (Ipv6): 8000, Link aggregation groups: up to 48, Multicast routes: 16000, Packet buffer size: 32 MB, Queues per port: 8, Spanning Tree Protocol instances: 64, VLANs supported: 4000
MAC Address Table Size: 32K entries
Jumbo Frame Support: Yes
Stackable: Stackable
Features: Access Control List (ACL) support, Auto-negotiation, Automatic topology detection, Bidirectional Forwarding Detection (BFD), DHCP relay, DHCP server, DHCP snooping, Dynamic ARP Inspection (DAI), FTP support, IGMP proxy, IGMP snooping, IP multicast, IP-MAC binding, IPFIX, LLDP support, Loop Guard, MACsec support, Media Endpoint Discovery (LLDP-MED), Multi-Chassis Link Aggregation (MLAG), NetFlow, Policy based routing, Port mirroring, Private VLAN, Quality of Service (QoS), Rapid PVST (RPVST), sFlow, SNTP support, Sticky MAC, Storm Control, STP BPDU Guard, STP Root Guard, Virtual Extensible LAN (VXLAN), Virtual Routing and Forwarding (VRF), VLAN mapping, VLAN support, Wake On LAN (WOL)
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 1 Gigabit / 10 Gigabit SFP+
Ports (2nd) Quantity: 6
Ports Type (2nd): 40/100 Gigabit QSFP+ / QSFP28
Interface Provided: 1 x 1000Base-T RJ-45 service, 1 x console RJ-45 management, 48 x 1/10Gbit LAN SFP+ MACsec enabled, 6 x 100Gbit/40Gbit LAN QSFP28/QSFP+ MACsec enabled
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50 - 60 hertz
Power Supplies Installed: 2
Redundant Power Supply Supported: 1+1
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
RAM Installed: 8 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 32 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% RH (non-condensing)
Min Storage Temperature: -13 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
MTBF: >10 Year
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Airflow Direction: Front to back airflow
Status Indicators: Fan, Link/activity, Power 1, Power 2, System
Dimensions and Weight
Height: 0.7 inch
Width: 6.8 inch
Depth: 7.1 inch
Weight: 20.06 lbs
Certifications and Listing
Compliant Standards: BSMI, CB, FCC, FIPS 140-2, RCM, RoHS 2, UL, VCCI
Compliant Standards: IEEE 1588 PTP, IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
