Product Information

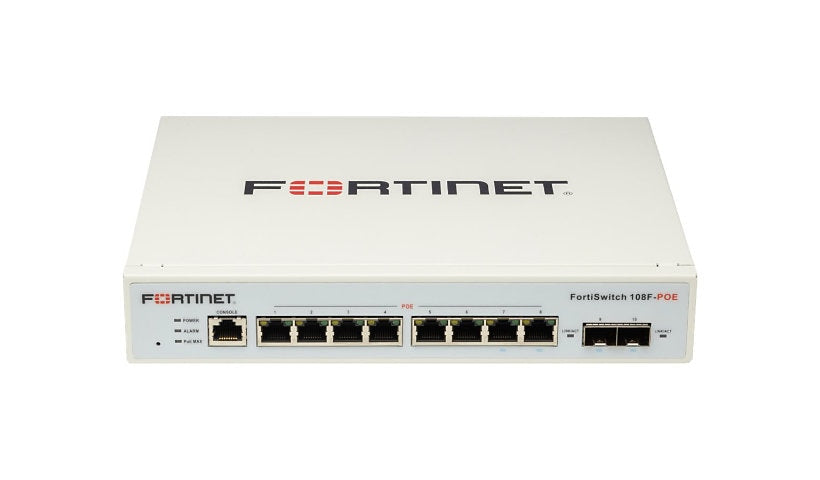

The Fortinet FortiSwitch 108F-POE is a compact managed switch with eight Gigabit PoE+ ports and two Gigabit SFP ports. It shares a 65 W PoE budget and can be managed from a FortiGate through FortiLink. It sits on a desk or mounts in a rack.
Key Features
- 8 x Gigabit RJ-45 PoE+ ports
- 2 x Gigabit SFP ports
- 65 W PoE budget
- 802.1x, DHCP snooping, IGMP snooping, FortiLink
- 256 MB RAM, 32 MB flash
- Desktop or rack mount
Product Information
Brand: Fortinet
Manufacturer: Fortinet
Product Line: Fortinet FortiSwitch
Model: 108F-POE
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, DHCP, HTTP, HTTPS, IPv4, IPv6, RADIUS, RSTP, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet, TFTP
Routing Protocol: IGMP, MSTP, Policy-based routing (PBR), RSTP, STP
Authentication Method: RADIUS, Secure Shell (SSH)
Performance: Latency: 4 µs, Packets per second: 30 Mpps, Switching capacity: 20 Gbps
Capacity: ACL: 768, Buffer capacity (MB): 512 KB, Link aggregation groups: 8, Spanning Tree Protocol instances: 16, Total link aggregation groups: 8, VLANs supported: 4000
MAC Address Table Size: 8K entries
Jumbo Frame Support: Yes
Features: 802.1x authentication, Application Visibility and Control (AVC), Auto-negotiation, Auto-uplink (auto MDI/MDI-X), BPDU Guard, DHCP snooping, Firewall protection, Flow control, IGMP snooping, IP forwarding support, LACP support, Link Aggregation, Link Aggregation Group (LAG), LLDP support, LLDP-MED, MAC Access Bypass (MAB), Management Information Base (MIB) II, Port mirroring, SNTP support, Storm Control, STP Root Guard, Syslog support, VLAN Tagging
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 10/100/1000 (PoE)
Ports (2nd) Quantity: 2
Ports Type (2nd): Gigabit SFP
Interface Provided: 1 x serial (console) RJ-45, 2 x 1000Base-X SFP, 8 x 1000Base-T RJ-45 PoE+
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 74.4 watt
PoE Budget: 65 watt
Memory and Processor
RAM Installed: 256 megabyte
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 32 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
MTBF: >10 Year
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable
Airflow Direction: Side to back airflow
Status Indicators: Status
Dimensions and Weight
Height: 1.7 inch
Width: 9.8 inch
Depth: 8.2 inch
Weight: 3.75 lbs
Certifications and Listing
Compliant Standards: BSMI, CB, FCC, RCM, RoHS 2, UL, VCCI
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
Service Activation: No
